Setting
Setting

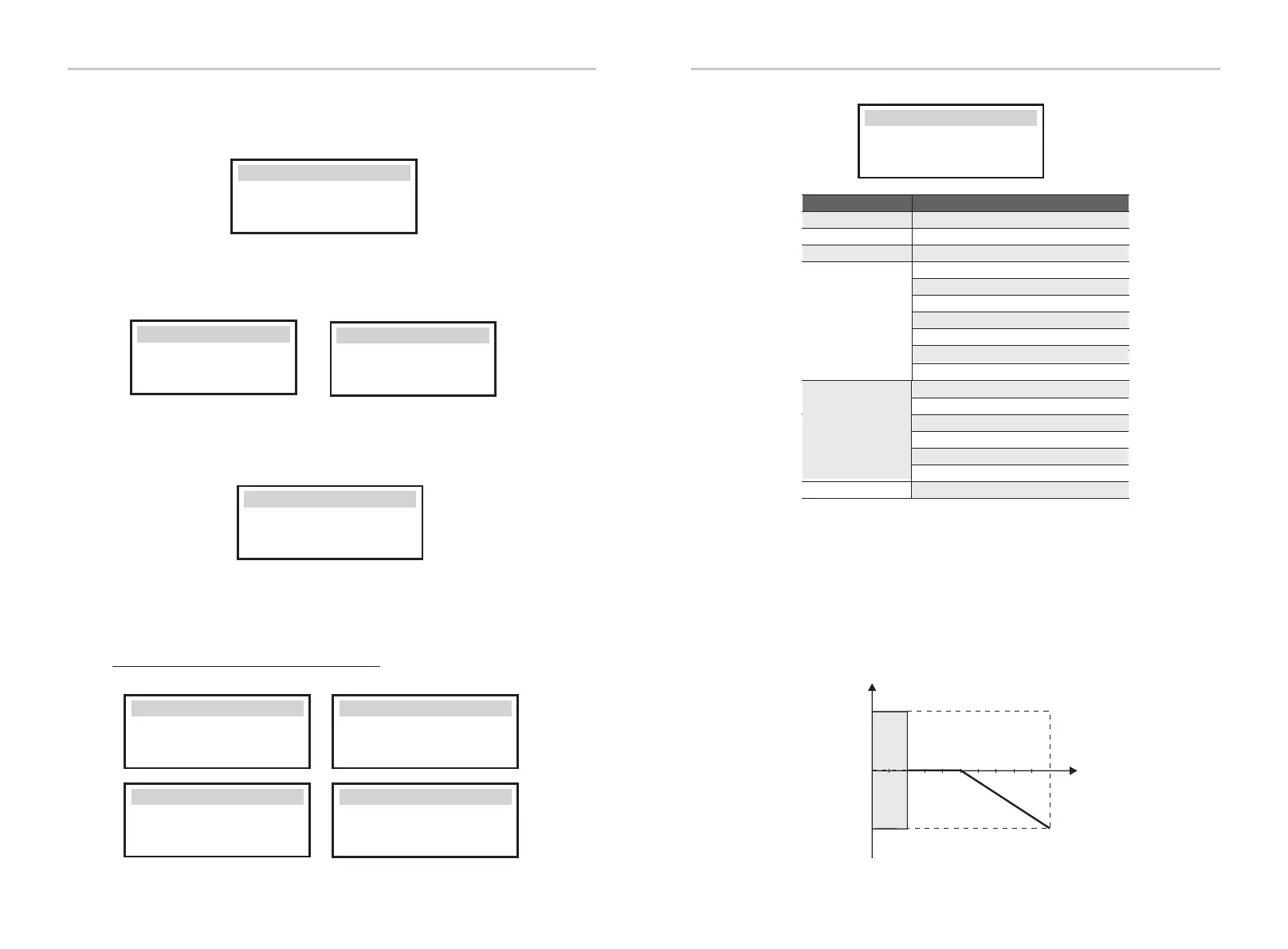

f )Shadow Fix
Here, you can set the shadow tracking with four options, which are off,
low, medium, and high.
＞Func Select
>OFF<
Shadow Fix
Modbus RTU/485
Baud Rate:
115200
Modbus RTU/485
RS485 Addr:
1
g) Modbus
Here you select the baud rate of the external communication
protocol, the default location of 19200 and 485 addresses.
h)X1-Matebox Setting
If you want X1-Matebox installed, you need to turn this feature on
here.
＞Select
Eisable Enable
X1-Matebox Setting
I) Power Factor (applicable to specific countries, please refer to local grid
requirements.)
There are 5 modes for selecting: Off , Under-Excited, Over-Excited, Curve, Q( u ).
(May be changed or added without notice)
User press up and down key to select, press enter key to confirm.
Mode Comment
Off
Over-Excited PF value
Under-Excited PF value
Curve
Upper limit
Lower limit
Power Upper
Power Lower
PFLockInPoint ( CEI 0-21 only)
PFLockOutPoint ( CEI 0-21 only)
-
Fixed Q Power Q Power
Q( u )
VoltRATIO 1
VoltRATIO 4
QURESPONSEV2
QURESPONSEV3
QURESPONSEV4
( AS4777.2 only)
( AS4777.2 only)
( AS4777.2 only)
( AS4777.2 only)
( AS4777.2 only)
K Value
(CEI 0-21 only)
● Reactive power control, reactive power standard curve cos φ = f(P)
For VDE ARN 4105, the curve cos = f(P) should refer to curve B. The set
default value is shown in curve B.
For e8001, the curve cos = f(P) should be curve A. The set default value is
shown in curve A.
For CEI 0-21, the default value of PFLockInPoint is 1.05. When Vac> 1.05Vn,
Pac> 0.2 Pn, curve cos cp = f(P) corresponds to curve B.
0.9/0.95*
0.9/0.95*
leading
p/p
lagging
curve A
0.5 1.0
over-excited
under-excited
0.2
1
Emax
cos φ
Mode Select
＞ ＜ Off
Power Factor
Mode Select
＞ ＜
Over-Excited
Power Factor
Mode Select
＞ ＜
Under-Excited
Power Factor
Mode Select
＞ ＜ Curve
Power Factor
Mode Select
＞ ＜ Q(u)
Power Factor
3Tau
