SolaX Power X1 Series User Manual

System Status
Battery
On-grid
EPS
Meter/CT
Ø System Status
System status contains six content: PV1/PV2/Battery/On-grid (energy feed
into or buy from the grid)and EPS and so on.
Press up and down to select, press "Enter" to confrm the selection, and
press "ESC" to return to the menu.
1/2) PV1, PV2
Here you can see the voltage, current and power of the PV 1 and PV 2
photovoltaic panels respectively;
PV2
PV1
PV1
U 400.0V
I 1.0A
P. 400W
Battery
1)
2)
3)
4)
5)
6)
Setting
Setting
PV2
84
85
>U
I
P
3) Battery
This status shows the battery condition of the system. Including
battery voltage and battery current, Battery power, battery capacity,
battery temperature, BMS connection status. The meaning of the
sign of battery current and power: "+" means charging; "-" means
discharging.
0.0V
0.0A
0W
0.0V
0.0A
0W
>U
I
P
0.0V
0.0A
0W
U 400.0V
I -1.0A
P -400W
Battery
The D-A period is the battery charging period during which discharging is
not allowed and the PV will charge the battery rst for peak shaving. The
ChargeFromGrid" setting determines whether or not to charge from the
grid. When "ChargeFromGrid" is set to "Disable", the battery cannot
charge from the grid; when "ChargeFromGrid" is set to "Enable" and the
actual battery SOC is less than “Max_SOC”, the battery will charge from the
grid at no more than "ChargePowerLimits" power.
In the A-B and C-D periods, if the power of loads does not exceed
"PeakLimits”, the PV will charge the battery rst.When the battery is fully
charged, the PV will charge loads, and the surplus power will feed into the
grid. If the power of loads exceeds "PeakLimits”, the PV and battery will
discharge energy for loads and thus reduce the amount of energy
purchased from the grid.
In the B-C period, the battery does not discharge. The PV will charge the
battery to the "Reserved SOC" rst and then supply power or loads, with
the surplus power feeding into the grid. Charging the battery rst in these
peiods is storing energy for the peak shaving.

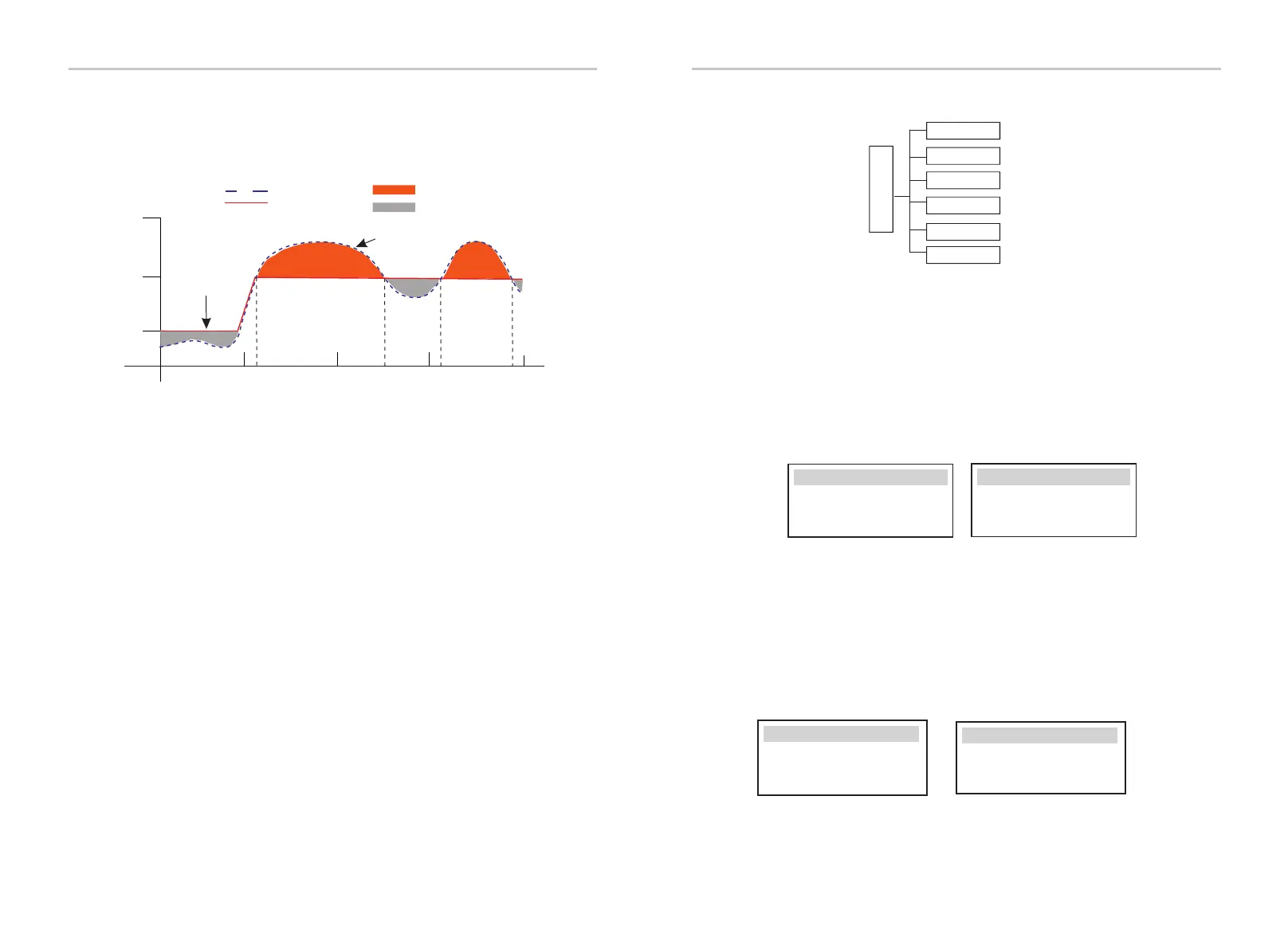

Peak shaving mode is set for leaving out peaks in electricity use.
Peak shaving mode
* If there are requirements for zero output from the inverter, the PV output will be
limited.
Before Peak Shaving
After Peak Shaving
BESS discharging into network
BESS charging from baseload
generating plant
Time of day
0
6 am
midday
6 pm
midnight
Baseload
Mid merit
Peaking
generation
Load demand/MW
D
A
BESS charging from
baseload generating
plant
BESS discharging
into network
B
C
generation
generation
