Mechanical Installation Mechanical Installation
5. Mechanical Installation
5.1 Installation Precaution
DANGER!
Before installation, make sure there is no electrical connection.
Before drilling holes on the wall, make sure the layout of the water
pipes and cables inside the wall is clearly known to avoid any
danger.
CAUTION!
Personal injury and machine damage may be caused by improper
movement of the inverter.
Please be strictly comply with the instructions of this manual when
moving the installing the inverter.
5.2 Selection for the installation position
The installation location selected for the inverter is quite critical in the aspect of
the guarantee of machine safety, service life and performance.
• X3-Forth series has the IP66 ingress protection, which allows it to be installed
outside the door.
• The installation position shall be convenient for wiring connection, operation
and maintenance.
5.2.1 Installation environment required
Avoide direct sunlight, rain exposure, snow laying up during installing and
operating.
The installation position shall be well ventilated.
Make sure the installation site meets the following conditions:
Not be exposed to glare.
Not in areas where highly flammable materials are stored.
Not in potential explosive areas.
Not in the cool air directly.
Not near the television antenna or antenna cable.
Not higher than altitude of about 4000m above sea level.
Not in environment of precipitation or humidity (0-100%) .
Be sure the ventilation is good enough.
The ambient temperature in the range of -25°C to +60°C.
The wall or stand hanging the inverter should meet conditions below:
1) Solid brick / concrete, or strength equivalent mounting surface;
2) Inverter must be supported or strengthened if the strength of wall/stand isn’t
enough. (such as wooden wall, the wall covered by thick layer of decoration)

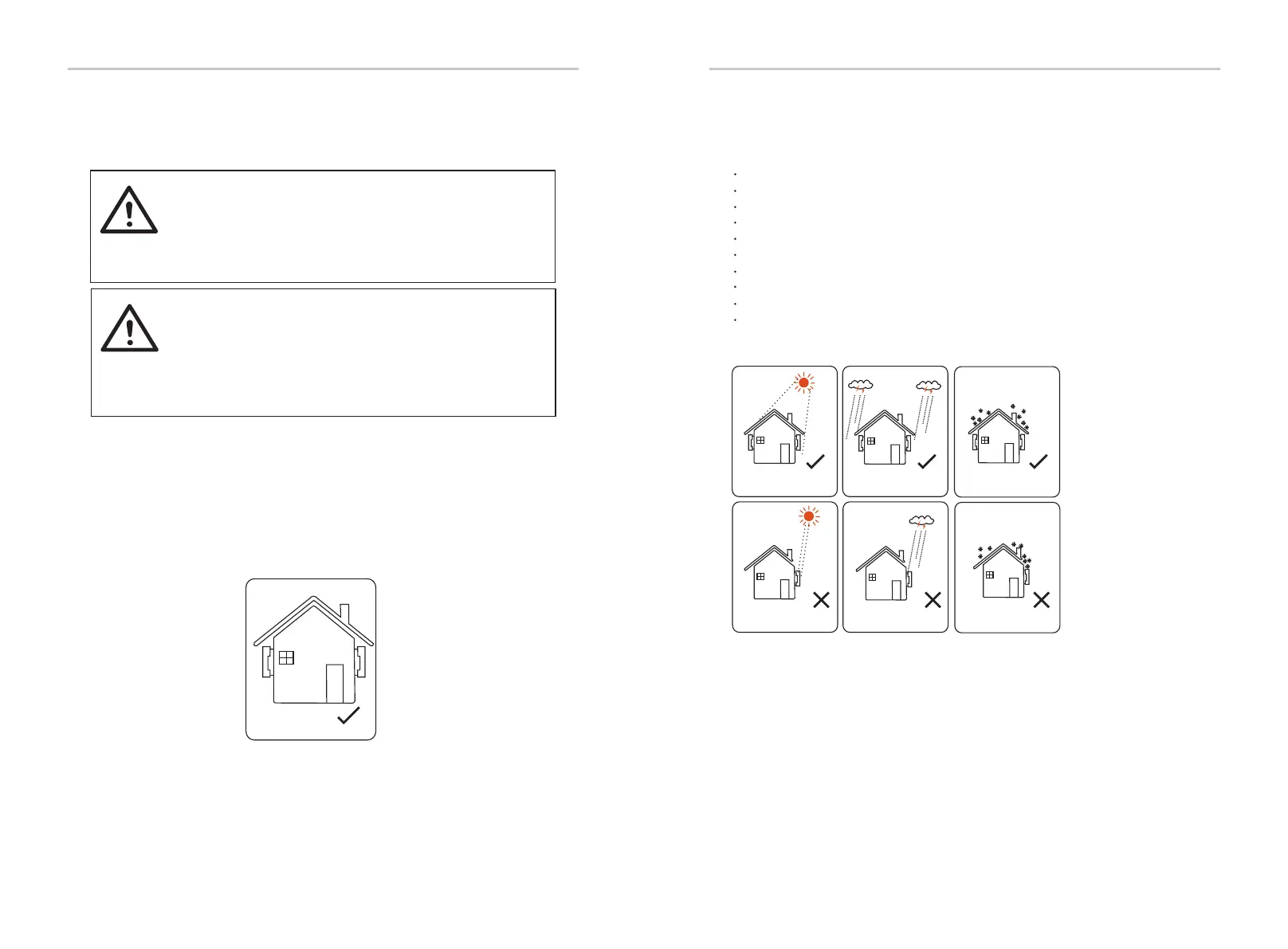

No direct sunlight
No rain exposure No snow lay up
Direct sunlight
Rain exposure
Snow lay up
5.2.2 Installation carrier required
