SolaX Power X3-Forth User Manual

-The inclination angle of the flat installation shall be greater than 10° and can
not be tilted forward, inverted, excessive back tilted or side tilted.
-The inverter shall be installed more than 500 mm above the ground.

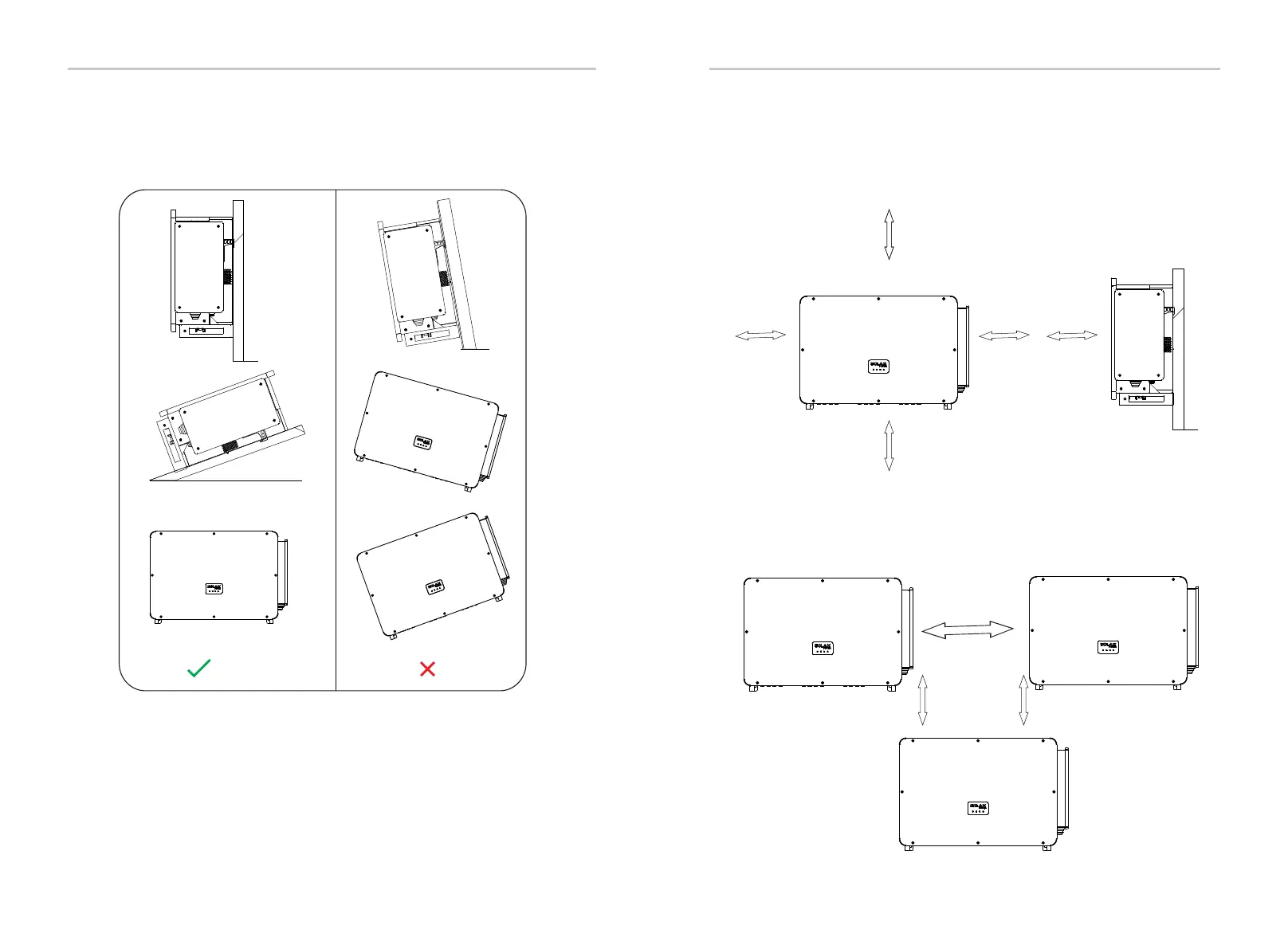

5.2.3 Installation angle required
To ensure good heat dissipation and convenient disassembly, the minimum
clearance around the inverter shall not be less than the following values, as
shown in the following figure.
5.2.4 Installation space required
≥600 mm
≥500mm≥500 mm
≥700 mm
≥700 mm
≥1000 mm
For multi-inverter installation, please reserve the space of 700 mm at least
between each left and right inverter and at least 500 mm between each
upper and lower inverter.
≥700 mm
≥500 mm
≥500 mm
Mechanical Installation Mechanical Installation
22
23
