SolaX Power X3-Forth - Basic Features; Overview of the Inverter

1312

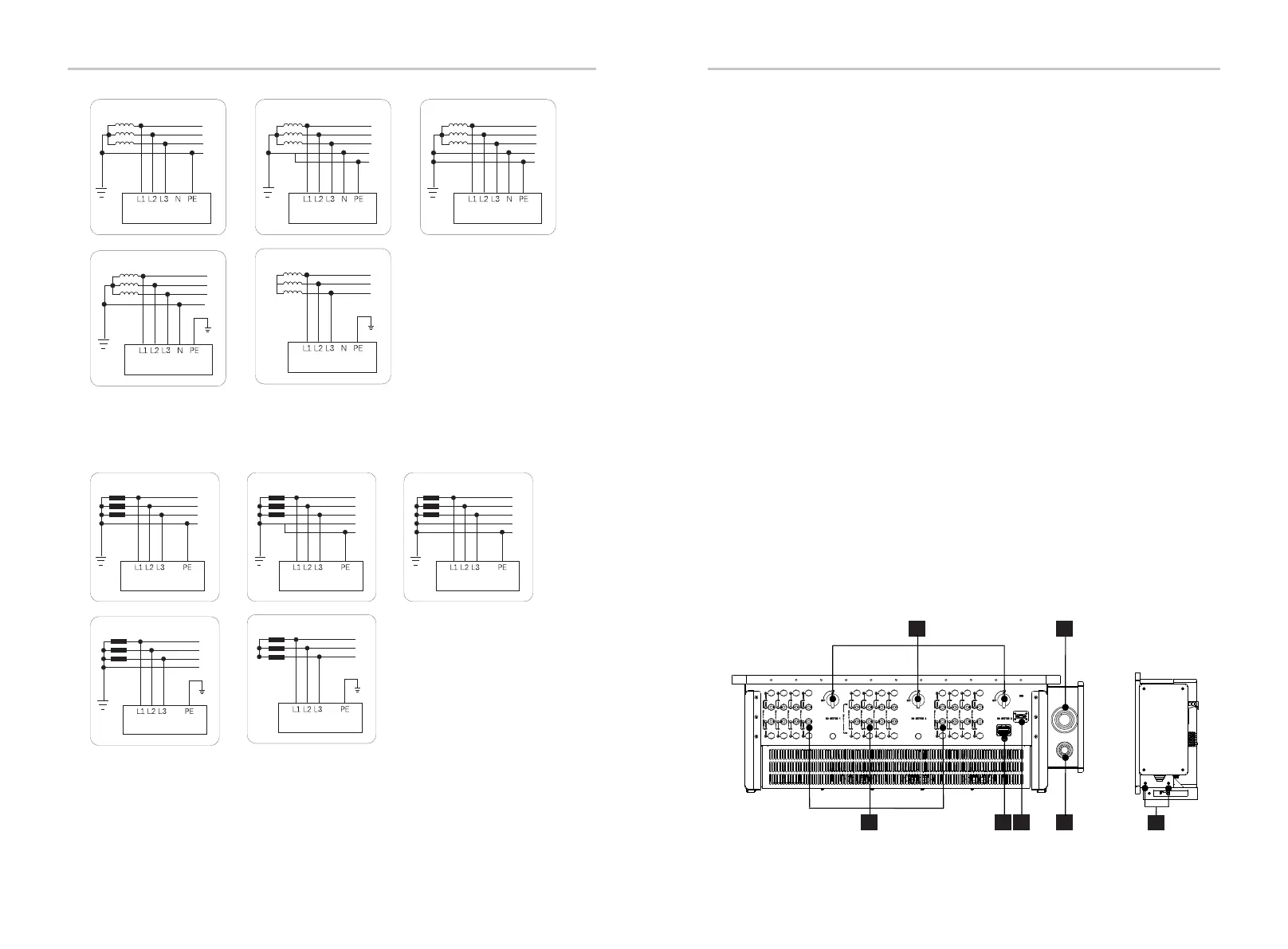

Figure1
Figure2
TN-C
L1
L2
L3
PEN
TN-C-S
L1
L2
L3
N
PE
TN-S
L1
L2
L3
N
PE
TT
L1
L2
L3
N
IT
L1
L2
L3
Inverter
Inverter
Inverter
Inverter
Inverter
TN-C
Inverter
L1
L2
L3
PEN
TN-C-S
L1
L2
L3
N
PE
TN-S
L1
L2
L3
N
PE
TT
L1
L2
L3
N
IT
L1
L2
L3
Inverter Inverter
Inverter Inverter
Transfomer
Transfomer
Transfomer
Transfomer
Transfomer
3.2 Basic Features
Thanks for your purchasing with SolaX X3-Forth Series inverter. The X3-Forth
Series inverter is one of the finest inverters on the market today, incorporating
state-of-the-art technology, high reliability, and convenient control features.
• 2 Strings per MPP tracker, maximum 12 MPP trackers
• Max DC input current 16 A per string, Max DC input current 32 A for each
MPP tracker, supporting double side arrays
• Max 150% oversizing DC input power; Max. 110% apparent AC output power
• Remote error diagnoses and firmware upgrade dispatching grid power
remotely; reactive power compensating during night
• Smart air cooling, adjustable fan speed
• Current monitoring on each MPP tracker, smart I-V curve scan
• Support electric ARC monitoring (optional), AC output terminal temperature
monitoring
• Safety &Reliability: transformerless design with software and hardware
protection.
• Power factor regulation.
• Friendly HMI.
- LED status indications.
- LCD display technical data, Human-machine interaction through press
key.
- Dry contact communication interface.
- PC remote control.
- Remote upgrade and upgrade through USB interface.
- RS485/PLC communication interfaces available (Optional): WI-FI/4G
available
- Energy conservation.
3.3 Overview of the Inverter
E
D
A
FC
B
G
Introduction Introduction
