SolaX Power X3-Forth User Manual

a) Check that device is fixed well on the wall or stand.
b) Make sure all the DC breakers and AC breakers are disconnected.
c) AC cable is connected to grid correctly.
d) All PV panels are connected to inverter correctly, DC connectors which are
not used should be sealed by cover.
e) Turn on the DC switch to the “ON”position.
● Start inverter after checking all below steps:
● Start the inverter
Inverter will start automatically when PV panels generate enough energy.

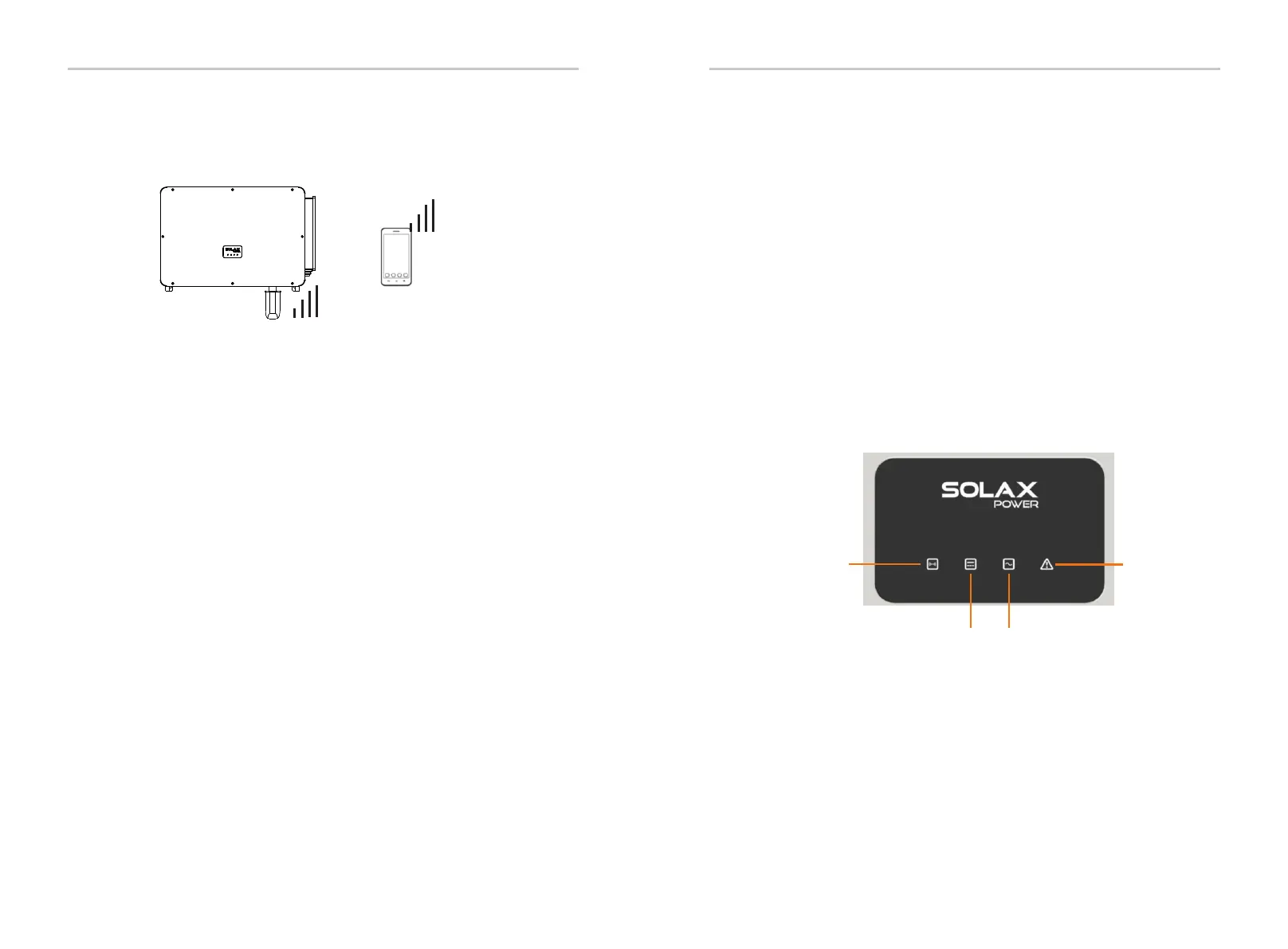

Check the status of LED indication
If the LED indication is not on, please check the below:
- All the connections are right.
- All the external circuit breakers are closed.
- The DC switch of the inverter is in the “ON” position.
Communication indicator
DC connection indicator Grid connection indicator
Alarm indicator
7. Start up the Inverter
Electrical Connection
Startup of the Inverter
41
Ø Basic setting and advanced setting
Electrical Connection
40
Basic settings include the time, date, language and system switch.
Advanced settings can set the new password of the inverter, buzzer enable,
timing switch, etc.
-Under different standard codes, the parameters that can be set for the inverter
are different.
-If you change the grid standard code, some parameters may revert to factory
defaults. After the grid standard code is changed, please check whether the
previously set parameters are affected.
-Sending reset, plant recovery, shutdown or upgrade instructions to the inverter
may cause the inverter to be unable to be connected to the grid and affect
power generation.
-The power grid parameters, protection parameters, characteristic parameters
and power regulation parameters of the inverter must be set by professionals.
power grid
Incorrect setting of parameters, protection parameters and characteristic
parameters may cause the inverter not connected to the grid and incorrect
setting of power adjustment parameters.
-The error may cause that the inverter cannot be connected to the power grid
according to the power grid requirements, thus affecting the power generation.
-Parameter name, ranges, and defaults may change or adjust in the future.
performance parameter setting
Ø 4G connection
SolaX Pocket 4G dongle allows you to use a 4G connection to monitor your
system without the option of connecting to a local network. (This product is not
available in the UK)
