Electrical Connection
Electrical Connection
38 39

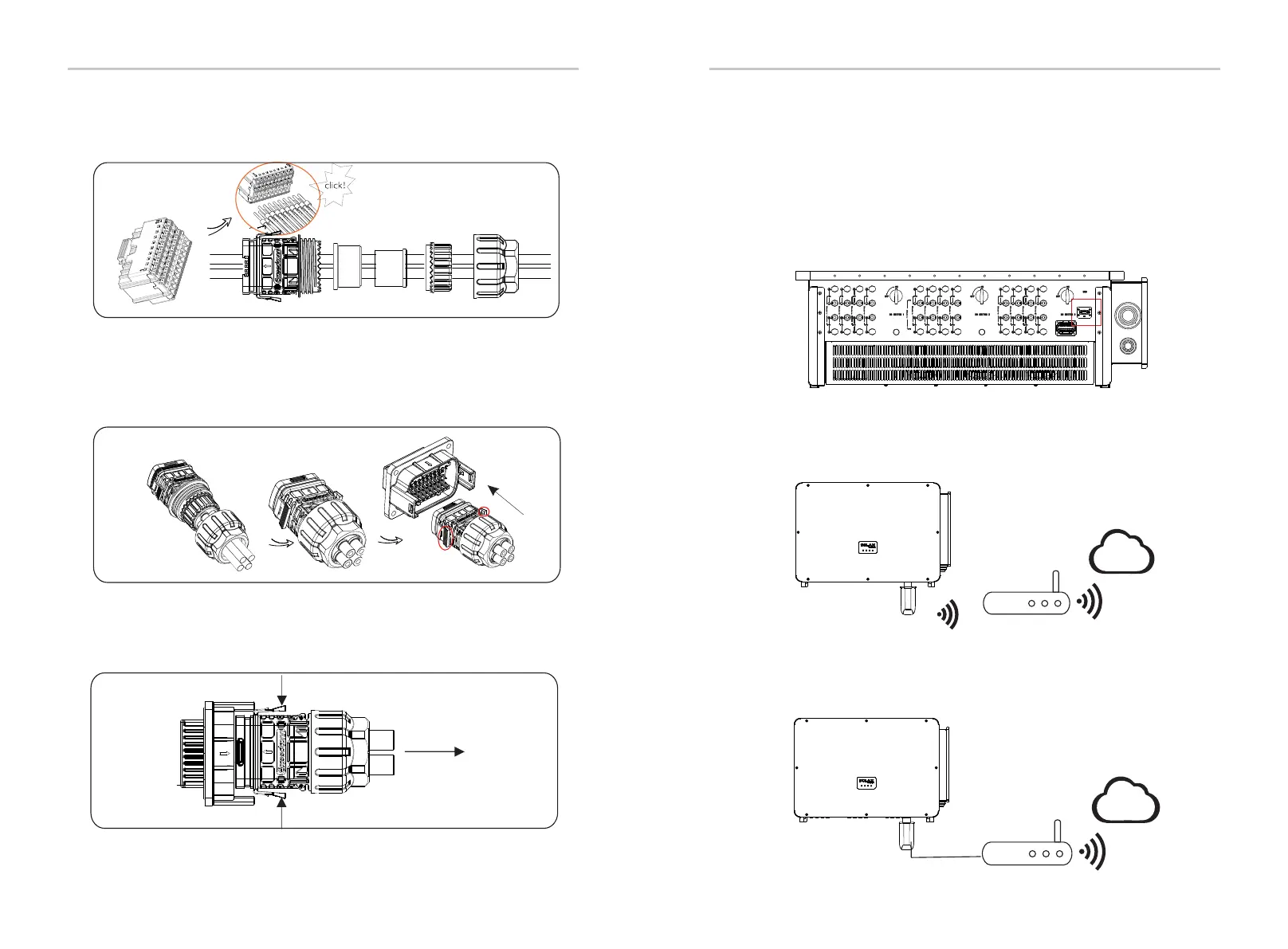

e) Insert the tube type terminal into the housing according to the label on
it. Push the terminal-inserted housing into the body. There will be a slight sound
of “Click”, which indicates the connection is completed.
f) Push the seal body into seal ring, then push the claw.
g) Clockwise tighten the nut with torque 8+/-2 N.m.
h) Keep the buttons on both sides pressed and connect it to the COM
port of the inverter. There will be a slight sound of “Click” if it is correctly
connected.
Housing
f) g) h)
6.4.3 Release steps of communication cable
For releasing the communication cable, please keep the buttons on the two
sides pressed and pull out the cable to make it unlocked.
Router
SolaX Cloud
Router
SolaX Cloud
Ø WiFi connection
Ø LAN connection
Solax Pocket WiFi Dongle connects to a local network within 50 m of the
installation to enable access to the SolaX Cloud monitoring platform.
If WiFi isn’t suitable, the Pocket LAN enables users to connect to the network
via an ethernet cable. Ethernet allows for a much more stable connection with
less interference.
6.5 Monitoring Connection
Solaxcloud is a mobile phone application that can communicate with the
inverter via WiFi/LAN/4G. It can realize alarm query, parameter configuration,
daily maintenance and other functions. This is a convenient maintenance
platform.
Plug Dongle into “USB” port at the bottom of the inverter. After the DC side or
AC side is powered on, the APP and inverter can be connected. Please refer to
the corresponding manual for details.
