Solcon HRVS-DN - Page 13

Control Wiring
12
1212
12

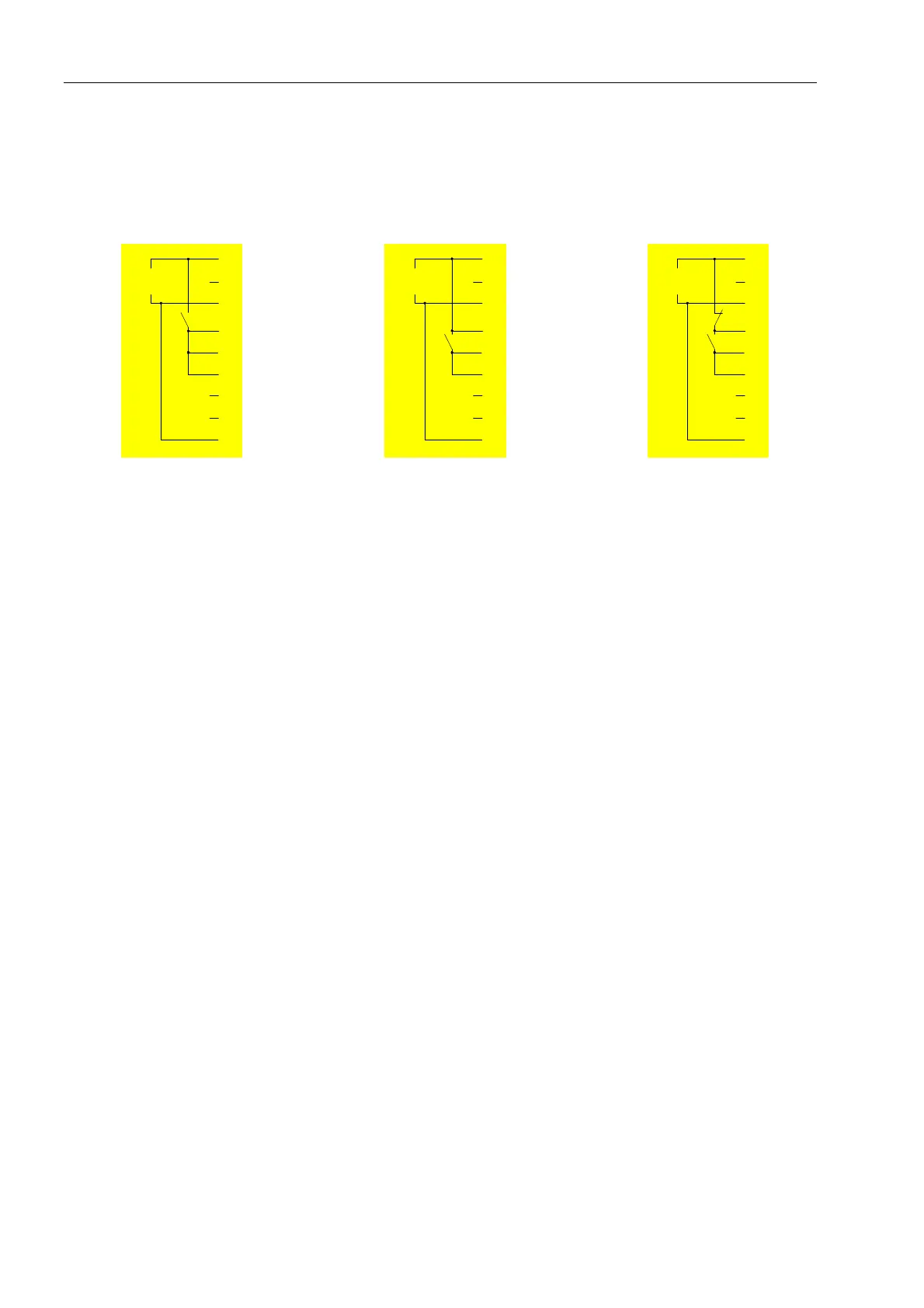

1. Motor will soft start when
C closes and stop
immediately when C
opens.
1
2
3
4
5
6
7
8
9
L 1
N
C
2. Motors will soft start
and soft stop with C.
1
2
3
4
5
6
7
8
9
L 1
N
C
3. Motors will soft start
and soft stop with C.
C
1
act as emergency
stop.
1
2
3
4
5
6
7
8
9
L 1
N
C
C 1
