Solid State Logic C100 HDS Software Update Manual

V4.2/6 Software Update
Page 23
Channel and Centre Section Softkeys
A range of transport functions can be assigned to the softkeys in the Centre Section or a C-Play Channel Strip.
Channel softkeys are configured by pressing the FREE ASSIGN button located in the Bay Master Control Strip. You will

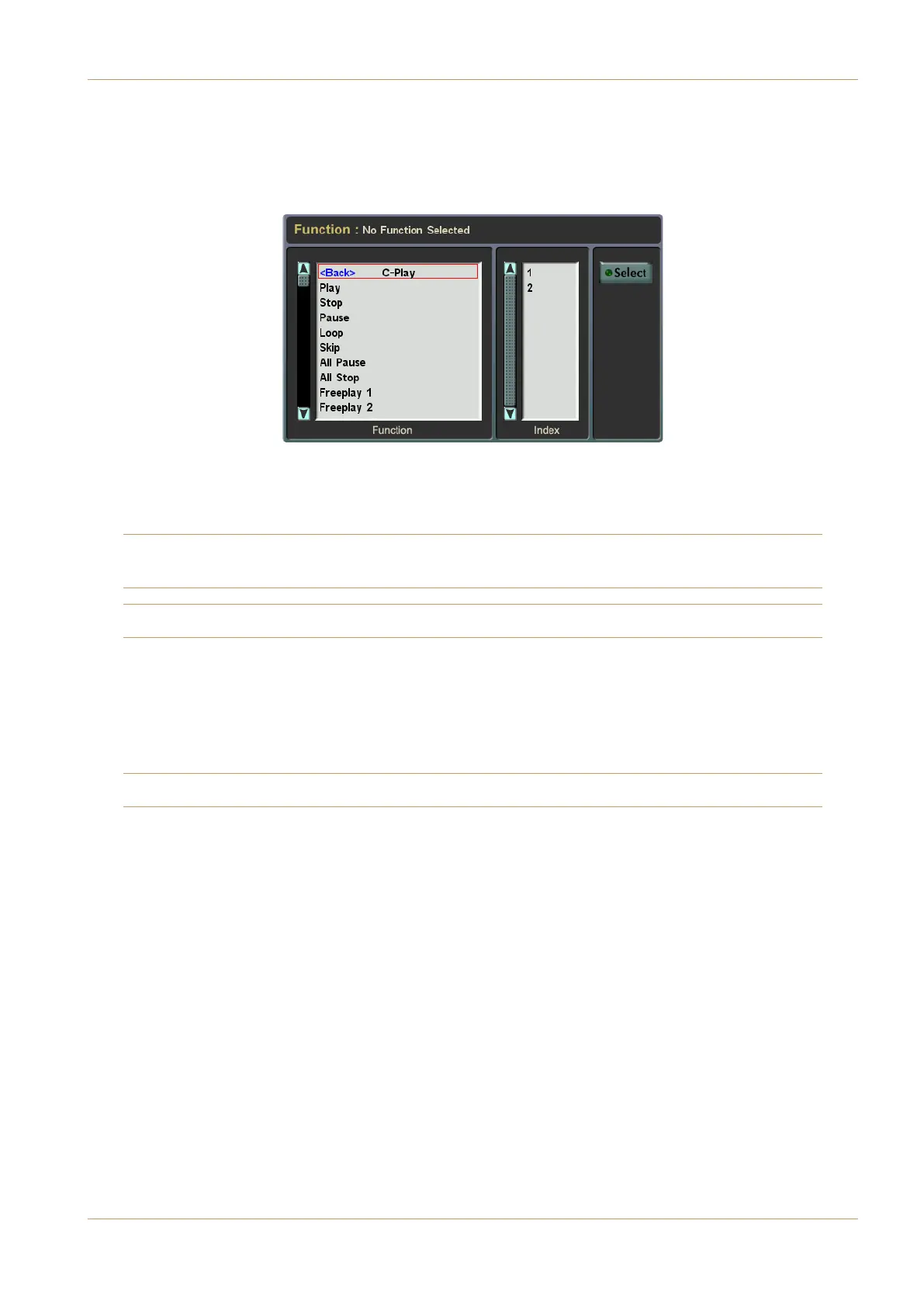

notice a C-Play folder in the window which appears, which opens as follows:
With this window open, press the switch to which you want to assign a transport function, then use the Control Strip
Scroller to select the function in the display, followed by C-Play Player 1 or 2 (displayed in the right-hand column), and use
the Scroller again to activate the Select button to complete the procedure.
Note that the Softkey assignment process is not limited to the Player in the current channel – either Player can be controlled
from any channel.
For more information on channel softkey assignment procedures, see Section 2 of the main Operating Manual.
Centre Section softkeys are configured by touching the GPI FREE button within the MISC menu, located at the base of
the Touchscreen. In the Function display which appears, you will notice a C-Play folder, which opens as above.
With this window open, press the softkey to which you want to assign a C-Play function, then use the Master Scroller to
select the function in the display, followed by C-Play Player 1 or 2 (displayed in the right-hand column), and touch Select
to complete the procedure.
For more information on Centre Section softkey assignment procedures, see Section 3 of the main Operating Manual.
The following functions are available:
- Play, Stop and Pause simply apply those transport commands to whichever Cut is selected in the Player.
- Loop and Skip duplicate their on-screen functions in V-Cart Cuts or Playlist view.
- All Pause and All Stop pause or stop any Cuts playing, either in V-Cart or Freeplay mode.
- The Freeplay entries apply Freeplay Triggers 1 to 96 to the softkeys. Pressing the softkey while the Trigger is
playing will perform the same function as touching the on-screen Trigger, as defined in the Trigger’s Setup page.
All of these functions are also available via the Touchscreen Free button, where you can also assign the V-Cart Playlist
button, Cuts view Follow On, and Freeplay Swap and Trigger Setup.

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
