15

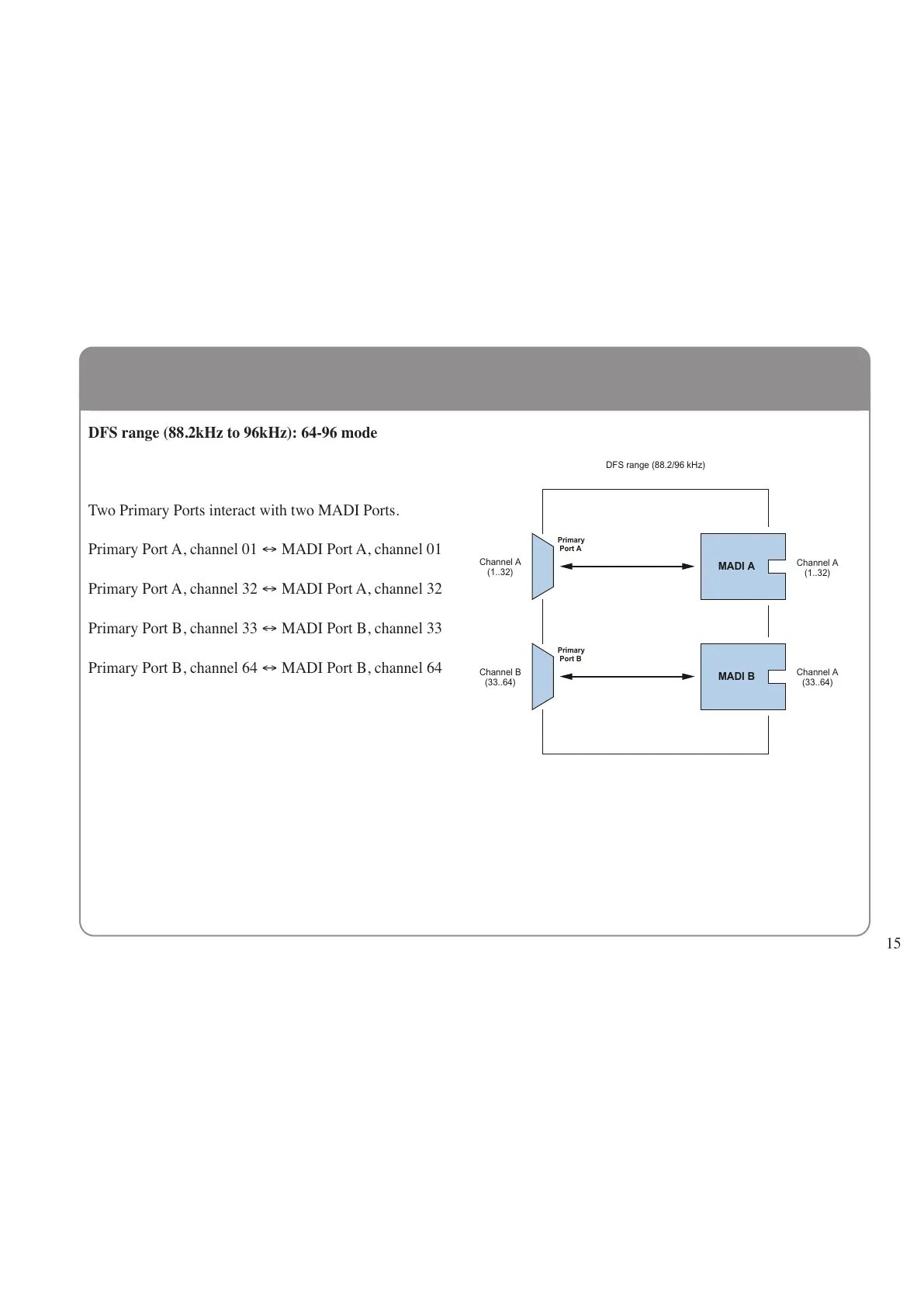

DFS range (88.2kHz to 96kHz): 64-96 mode
Two Primary Ports interact with two MADI Ports.
Primary Port A, channel 01 ↔ MADI Port A, channel 01
Primary Port A, channel 32 ↔ MADI Port A, channel 32
Primary Port B, channel 33 ↔ MADI Port B, channel 33
Primary Port B, channel 64 ↔ MADI Port B, channel 64
MADI A
MADI B
Primary
Port A
Primary
Port B
DFS range (88.2/96 kHz)
Channel A
(1..32)
Channel A
(1..32)
Channel A
(33..64)
Channel B
(33..64)
