Solid State Logic XLogic Delta-Link MADI HD - Page 20

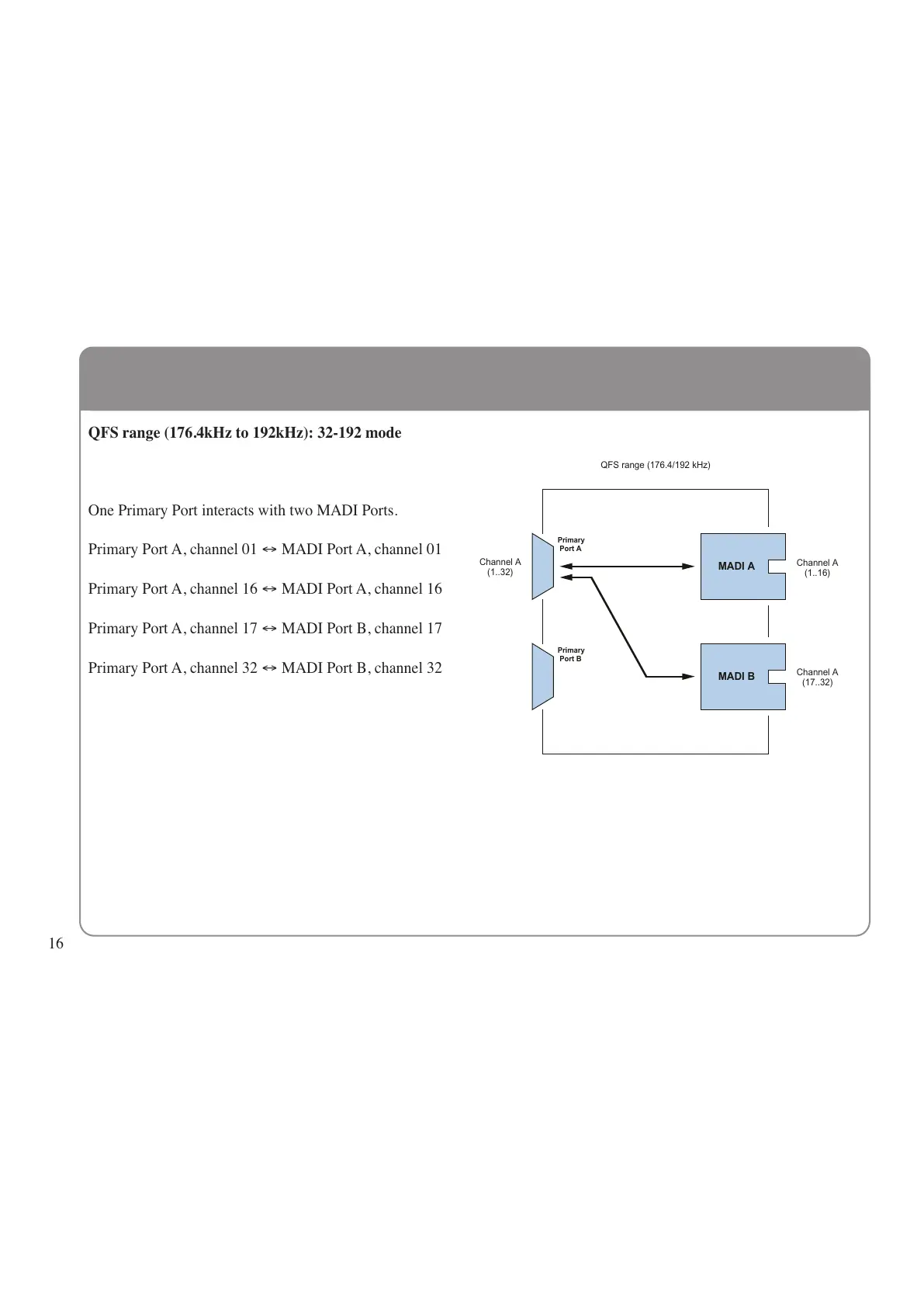

QFS range (176.4kHz to 192kHz): 32-192 mode
One Primary Port interacts with two MADI Ports.
Primary Port A, channel 01 ↔ MADI Port A, channel 01
Primary Port A, channel 16 ↔ MADI Port A, channel 16
Primary Port A, channel 17 ↔ MADI Port B, channel 17
Primary Port A, channel 32 ↔ MADI Port B, channel 32
MADI A
MADI B
Primary
Port A
Primary
Port B
QFS range (176.4/192 kHz)
Channel A
(1..32)
Channel A
(1..16)
Channel A
(17..32)
16
