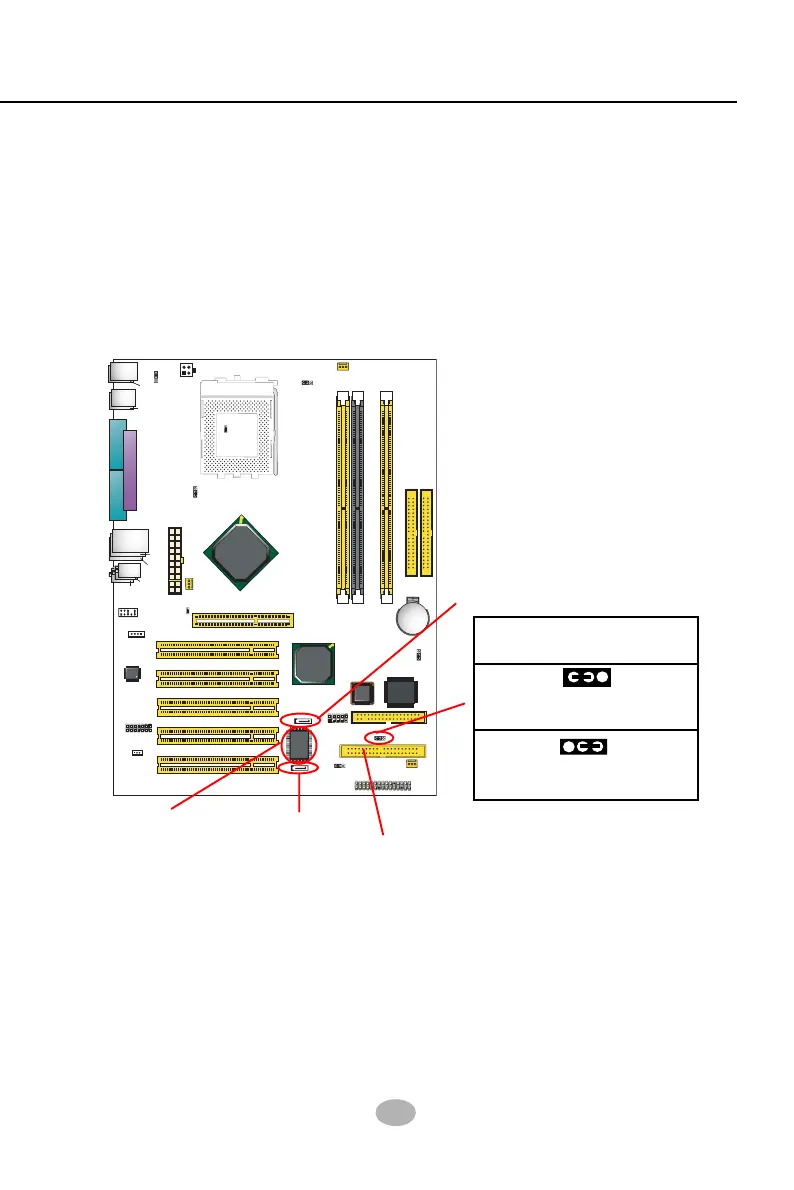

5-0 Before Creating Disk Array:
1. Jp4 is a 3-pin jumper for enabling or disabling the on-board Serial
ATA RAID Controller PDC20376. Setting Jp4 1-2 CLOSED will allow
user to enable on-board RAID Controller so as to allow user to set
up the Disk Array.
2. Please locate the Promise RAID Controller on your mainboard to
make sure that you are using the right board.
3. After you have enabled the Serial ATA RAID Controller with Jp4, you
can now install the Serial ATA RAID Controller Driver into your system.
