3.4. INSTALL THE NEEDLE CARTRIDGE
IMPORTANT: Needle Cartridges can be used for a maximum of 50 IDs. After 50 IDs, the
needle tips become blunt and are not as effective at producing a quality tattoo. Also,
please always handle Needle Cartridges with care. Never put your fingers inside the
Applicator Machine.
NOTE: If the needle has not been properly installed, it may fall off the tattoo head inside of the machine.
If this happens, the needle may interfere with the operation of the Applicator. Do not install another
needle or attempt to operate the Labstamp System. Contact SOMARK for further assistance.
If you are changing a previously installed Needle Cartridge, proceed to Section 3.5 CHANGING THE
NEEDLE CARTRIDGE
3.4.1 Press the CHANGE NEEDLE button on the front panel of the
Applicator Machine. The tattoo head door will open, and the
tattoo head will emerge from inside the Applicator Machine.

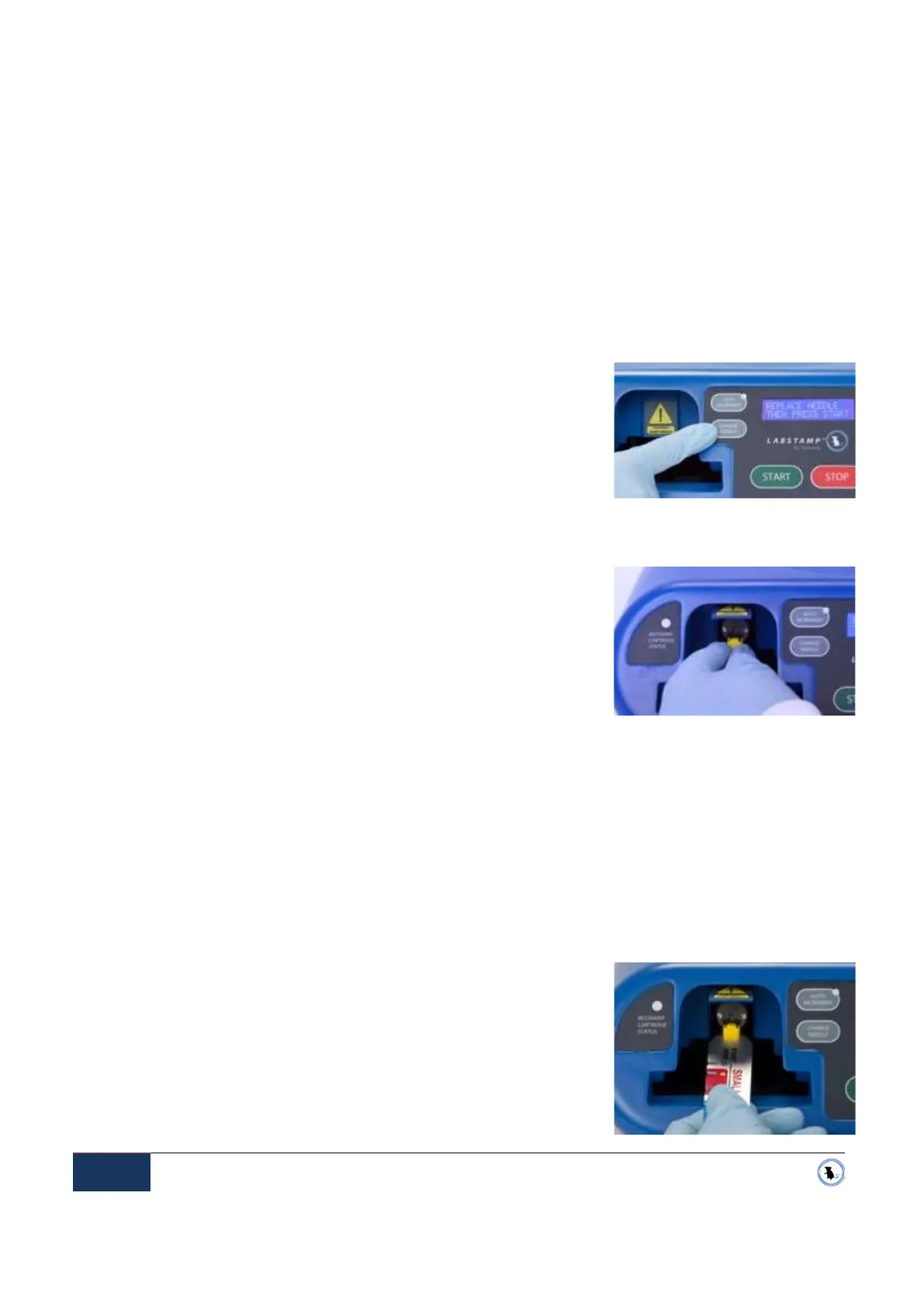

See Figure 3-7 Change Needle Button
NOTE:
If this is the first time the Applicator Machine is being used,
the tattoo head will already be in the Change Needle
position with the tattoo head protruding out of the
Applicator Machine.
3.4.2 With the needle pointing downward, install the Needle
Cartridge by lining up the clip arms of the Needle Cartridge
with the slots in the tattoo head. Gently push in until the clip
arms snap into place. See Figure 3-8 Install Needle Cartridge.
3.4.3 Press the CHANGE NEEDLE or START button on the front panel of the Applicator Machine to
retract the tattoo head. Ensure the small tattoo head door closes.
3.4.4 Once the Needle Cartridge is installed, proceed to section 3.6 - APPLYING TAIL OIL
3.5. CHANGING THE NEEDLE CARTRIDGE
IMPORTANT: Needle Cartridges can be used for a maximum of 50 IDs. After 50 IDs,
the needle tips become blunt and are not as effective at producing a quality tattoo.
Please always handle Needle Cartridges with care. Never put your fingers inside the
Applicator Machine.
3.5.1 Press the CHANGE NEEDLE button on the front panel of the
Applicator Machine. See Figure 3-7 Change Needle Button.
The tattoo head and used Needle Cartridge will emerge from
inside the Applicator Machine.
Figure 3-7 Change Needle Button
Figure 3-8 Install Needle Cartridge
