Section 2 Labstamp Components

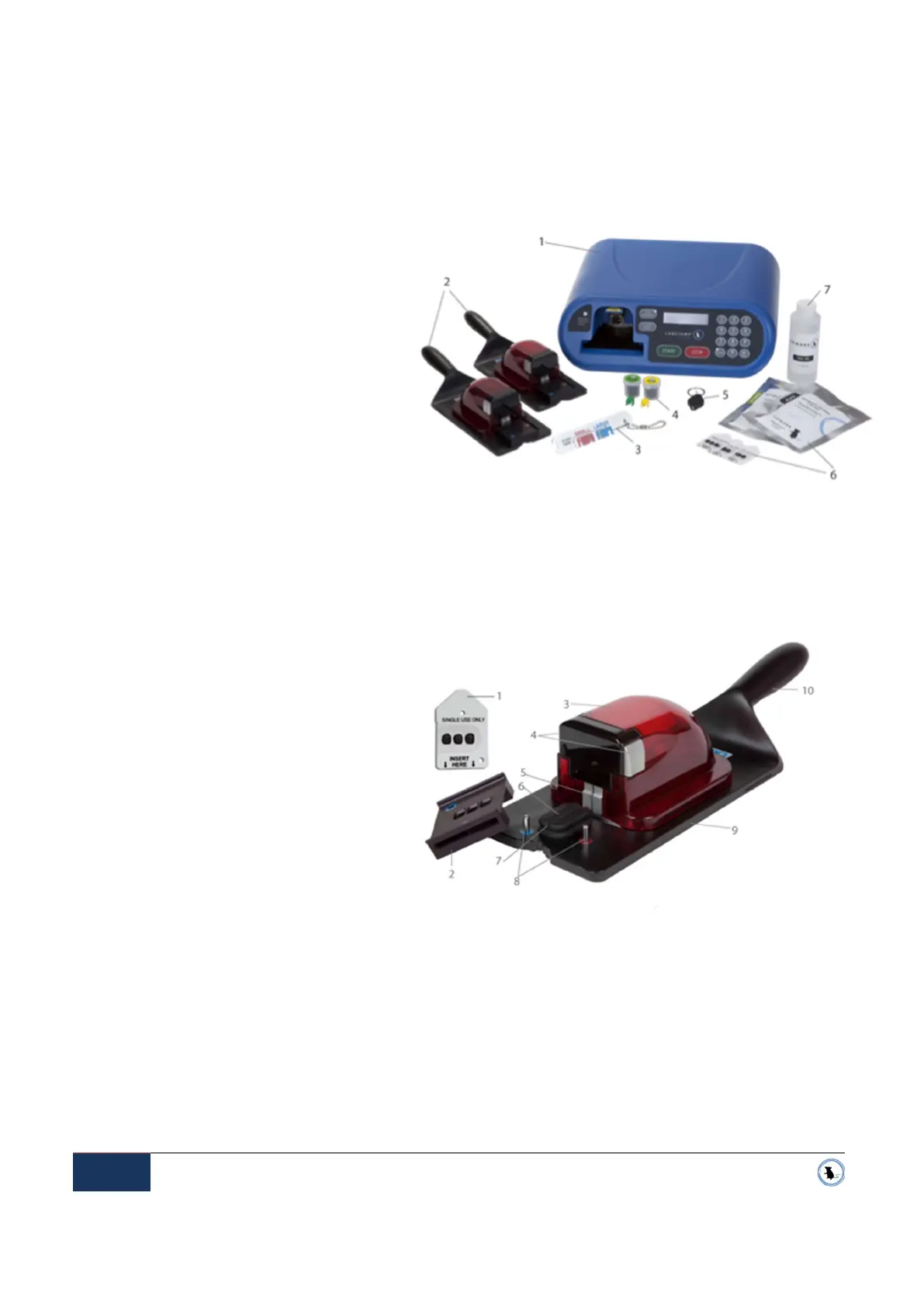

LABSTAMP SYSTEM:
1 Applicator Machine
2 Restraint Cartridges (SMALL and LARGE)
3 Tail Gauge
4 Needle Cartridges (Yellow and Green)
5 UV Thumb Light
6 Ink Slides (Black or UV Green, in foil
pouches)
7 Tail Oil
RESTRAINT CARTRIDGE COMPONENTS
1 TriCell Ink slide
2 Tail Cover
3 Red Dome
4 Tail Gripper buttons
5 Tail Grippers
6 V-Groove Tail Guide
7 Tail Bed
8 Tail Cover Alignment Posts
9 Restraint Cartridge Platform
(labelled SMALL or LARGE)
10 Handle
Figure 2-1 Labstamp System
Figure 2-2 Restraint Cartridge Components
