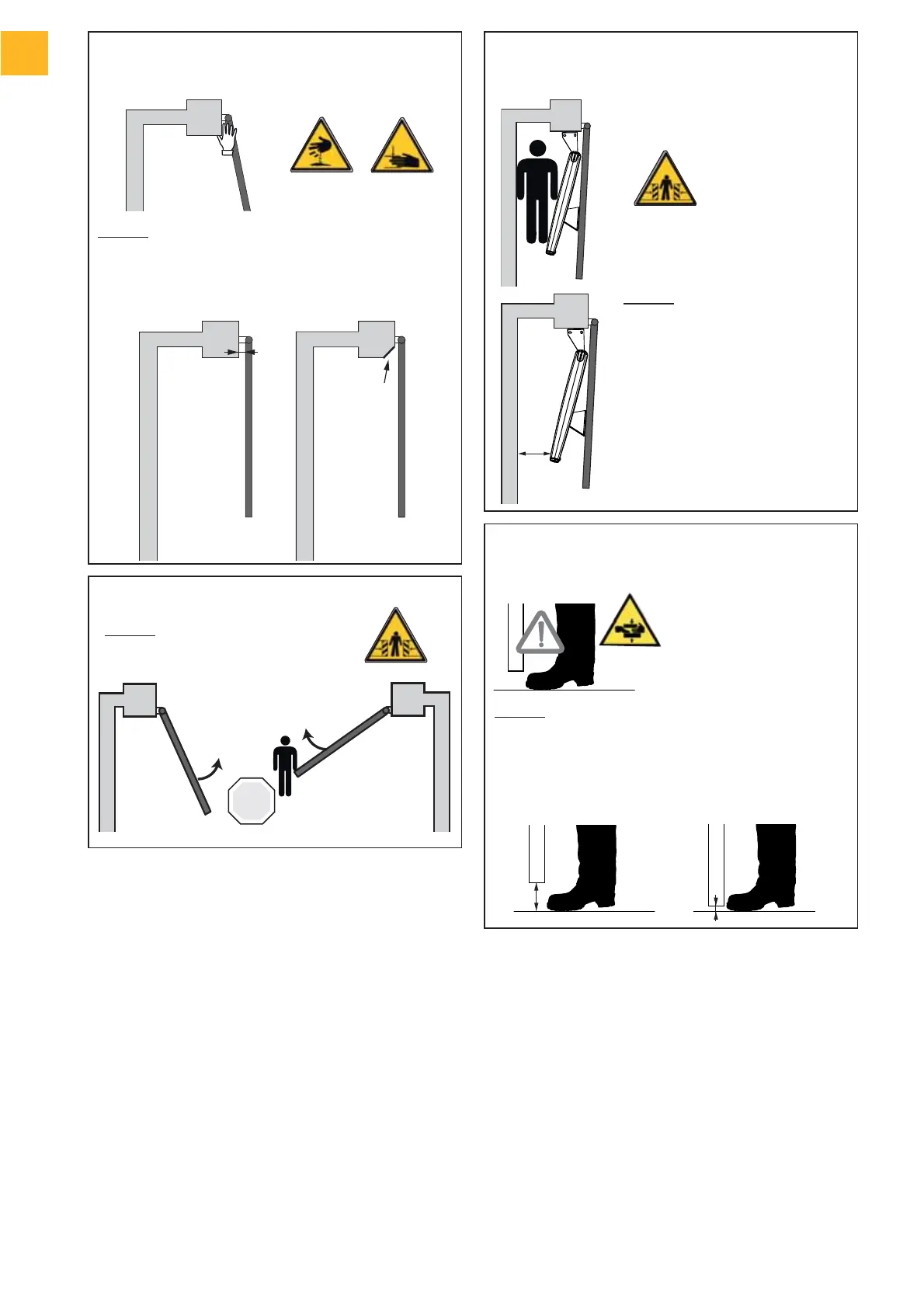

ZONE 2
Risks of crushing and cutting of hands
Solution:
If there a cutting risk zone on the installation:
- leave a distance of at least 10 cm between the leaf and
the pillar/wall
- cut off the corner of the pillar without weakening it.
ZONE 3
Risk of impact
Solution:
Obstacle detection built into the motor
STOP
50 cm
mini
ZONE 4
Risk of trapping and crushing
Solution:
Obstacle detection built into the
motor
If there is an area between the
gate leaves and the surrounding
fixed elements where someone
could get trapped, you must leave
a minimum distance of 50 cm
between the gate leaves and the
fixed sections.
ZONE 5
Risk of feet being trapped
Solution:
If there is an area where feet could be trapped between
the bottom of the gate leaves and the ground, you must
leave a distance between the bottom of the gate leaves
and the ground of a minimum of 12 cm or a maximum
of 5 mm.
12 cm
min.
5 mm
max.
Corner cut
