Step 1: Preprogramming the Somfy io-homecontrol
®
local control point
- Turn the power supply back on
- Press both and V :
The roller shutter moves back and forth:
this control point is now preprogrammed in
the drive.
Step 2
a
: Setting / resetting of end limits in manual mode
This procedure is only applicable to roller shutters without rigid links and without stops.
From 3), in set mode, t
few seconds.
1) Position the roller shutter at its half-way position.
2) Simultaneously press and V, for 5 s, until
there is back and forth movement by the roller
shutter.
The drive is in set mode.
3) Move the roller shutter to the desired upper (or
lower) end limit.
4) Press my, for 2 s, until there is back and
forth movement by the roller shutter.
5) Move the roller shutter to the desired lower (or
upper) end limit.
6) Press my, for 2 s, until there are two back
and forth movements by the roller shutter.
The settings for the end limits are programmed.
The drive enters programming mode for 10 min. if no control point is programmed.
The procedure for modifying the end limit settings is identical to the initial setting
procedure. To modify the settings at a later time, repeat step 2
a
.
Step 2
b
: Setting / resetting of end limits in semi-automatic mode
This procedure is only applicable to roller shutters without rigid links and
with stops, and roller shutters with rigid links and without stops.
From 3), in set mode, t
seconds.
1) Position the roller shutter at its half-way position.
2) Simultaneously press and V, for 5 s, until
there is back and forth movement by the roller
shutter.
The drive is in set mode.

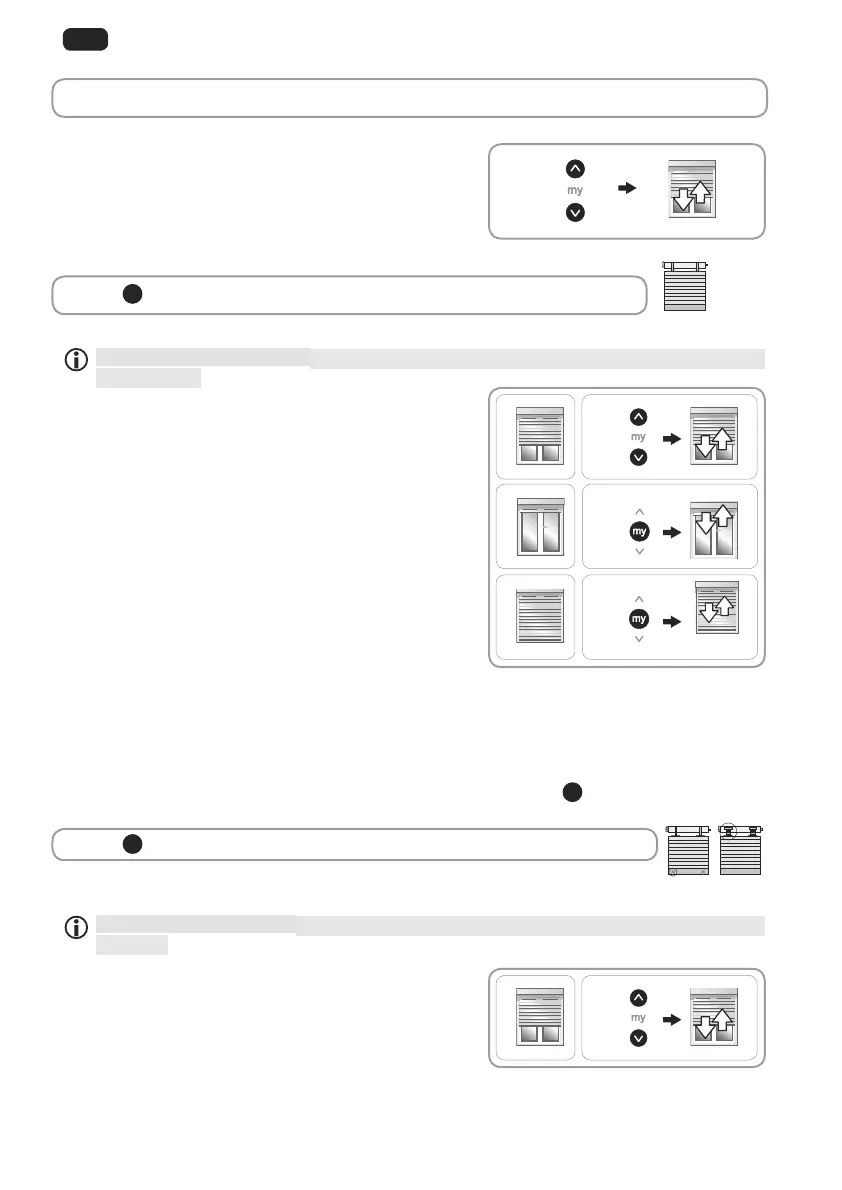

0.5 S
1) 2)
3) 4)
5) 6)
5 S
2 S
2 S
X 2
1) 2)
5 S
