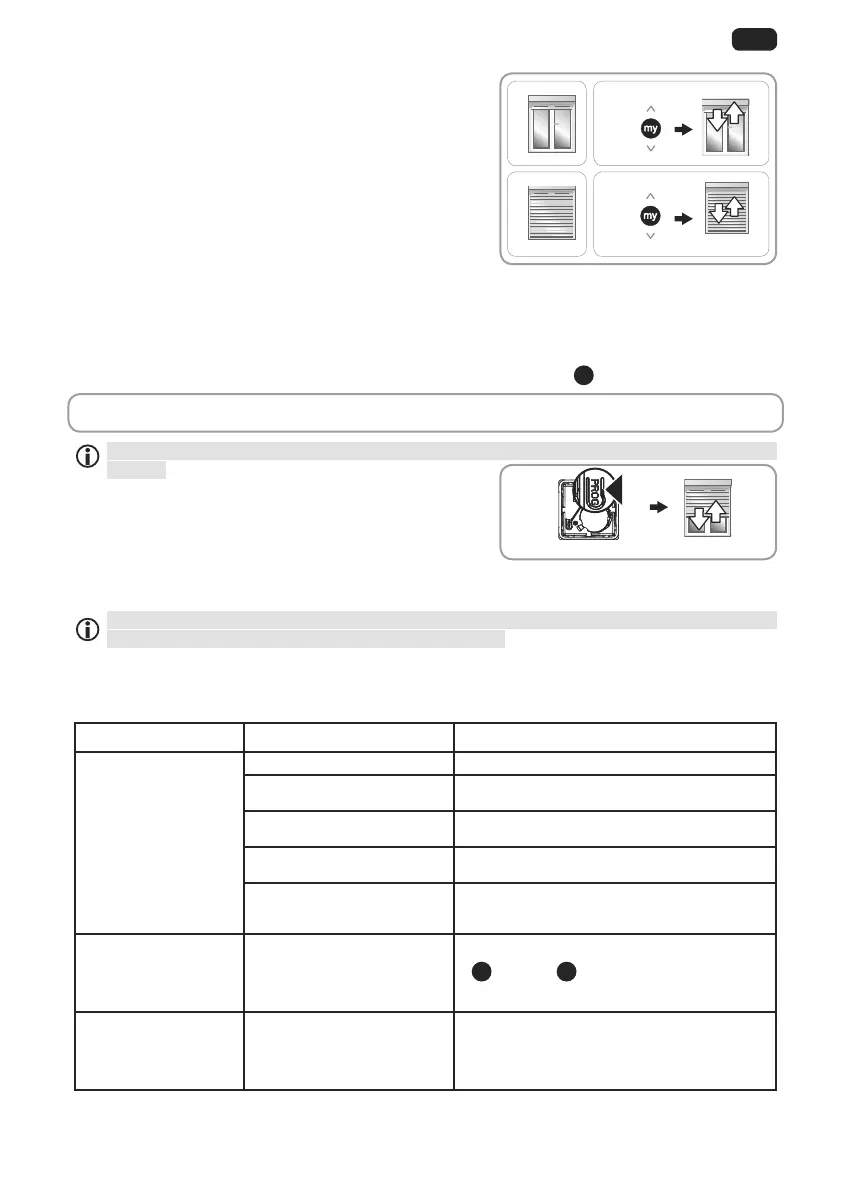

3) Operate the roller shutter and allow it to stop
automatically at the upper end limit (if stops) or
lower end limit (if rigid links).
4) Press my, for 2 s, until there is back and
forth movement by the roller shutter.
5) Move the roller shutter to the desired lower end
limit (no rigid links) or upper limit (no stops).
6) Press my, for 2 s, until there are two back
and forth movements by the roller shutter.
The setting for the second end limit is
The settings for the end limits are programmed.
The drive enters programming mode for 10 min. if no control point is programmed.
The procedure for modifying the end limit settings is identical to the initial setting
procedure. To modify the settings at a later time, repeat step 2
b
.
Step 3: Programming the Somfy io-homecontrol
®
local control point
If the drive is no longer in programming mode, repeat Step 1 again, before performing
Step 3.
The drive is in programming mode:
- press the PROG button on the Somfy
io-homecontrol
®
local control point you want to
programme:
The roller shutter moves back and forth: the control point has been programmed
in the drive.
Certain control points are equipped with an ON/OFF button. To activate them, press
the ON/OFF button at the rear of the control point.
2.4. TIPS AND ADVICE ON INSTALLATION
2.4.1. Questions on the S&SO-RS100 io?
Observations Possible causes Solutions
The roller shutter does not
operate.
The wiring is incorrect. Check the wiring and modify as required.
The overheating protection on
the drive has been activated.
Wait for the drive to cool down.
The io-homecontrol
®
control
point battery is low.
Check the battery and replace it as required.
The control point is not
compatible.
Contact a Somfy representative.
The io-homecontrol
®
control
point used is not programmed in
the drive.
Use a programmed control point or program this
control point.
The roller shutter makes
2 brief movements before
orders and functions at
slow speed.
The end limit setting in manual
or semi-automatic mode was
interrupted.
If setting in manual or semi-automatic mode is
required: repeat the setting procedure (see Step
2
a
or Step 2
b
). Otherwise move the roller
shutter once to the upper end limit and once to the
lower end limit to return to normal operating mode.
The rotation direction of
the drive does not self-
adjust automatically.
This is a small roller shutter of
about 0,5 m² (about 0.6 m x
0.7m).
Move the roller shutter to the lower end limit and
raise it, while retaining it slightly with the hand
(without stopping) for 5 seconds. Move it back to
the lower end limit. The next move, the drive has
found its rotation direction.
X 2
3) 4)
5) 6)
2 S
2 S
PROG. 0.5 S
