Scenario A: NAT/Route Mode Gateway

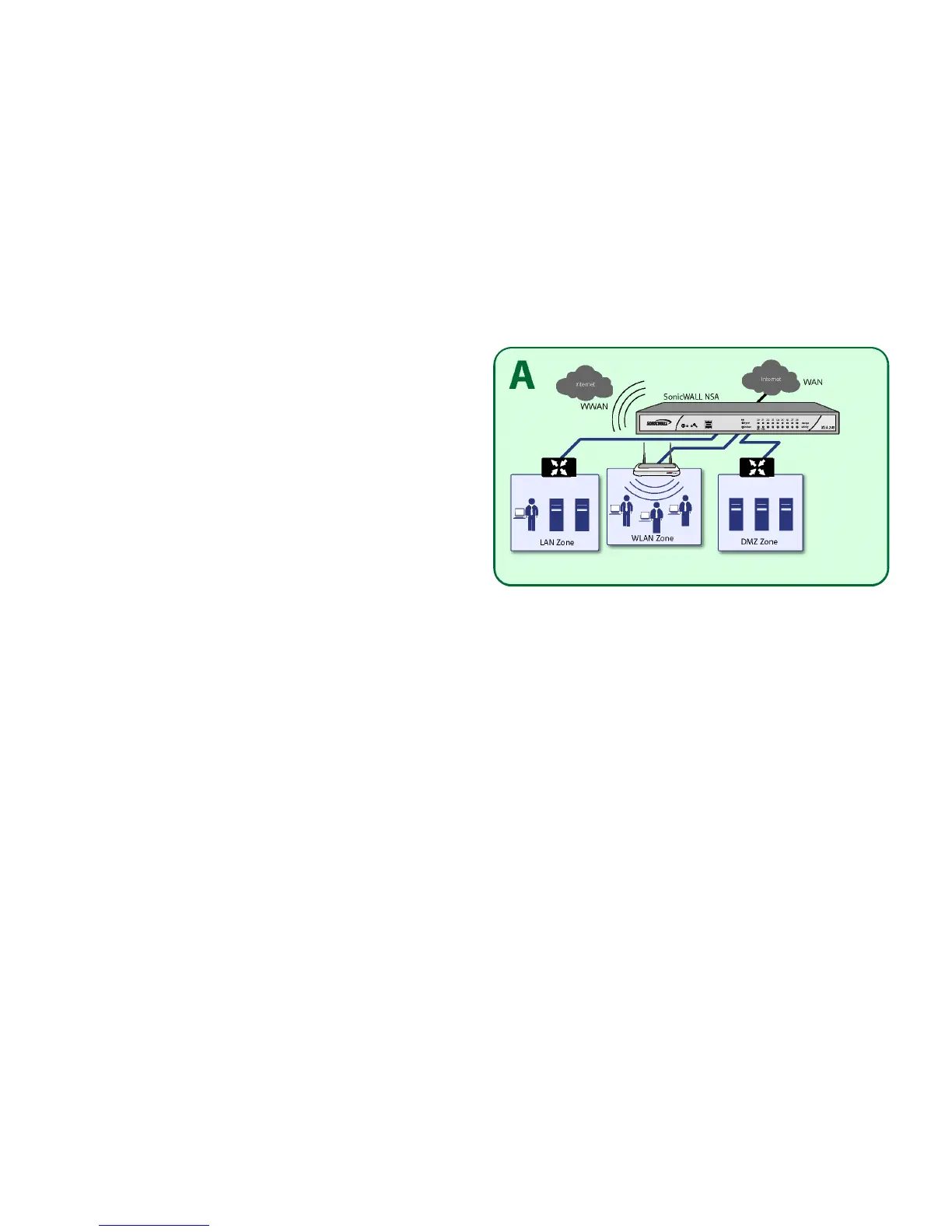

In this scenario, the SonicWALL NSA 240 is configured in NAT/
Route mode to operate as a single network gateway. Two
Internet sources may be routed through the SonicWALL
appliance for load balancing and failover purposes. Because
only a single SonicWALL appliance is deployed, the added
benefits of high availability with a stateful synchronized pair are
not available.
A
Internet
SonicWALL NSA
M0 X0 X1 X2 X3 X4 X5 X6 X7 X8
NSA 240
WWAN
WAN
Internet
