Sonos PLAYBASE User Manual

Product Guide
6
Set it up
PLAYBASE is compatible with Sonos software versions 7.2 and later. If you are adding the PLAYBASE to an
existing Sonos system, be sure to check for software updates before adding the PLAYBASE.
1. Carefully unpack the box.
2. Choose a location for the PLAYBASE (refer to the TV placement guidelines for help).
3. Remove the protective cap from each end of the optical audio cable.

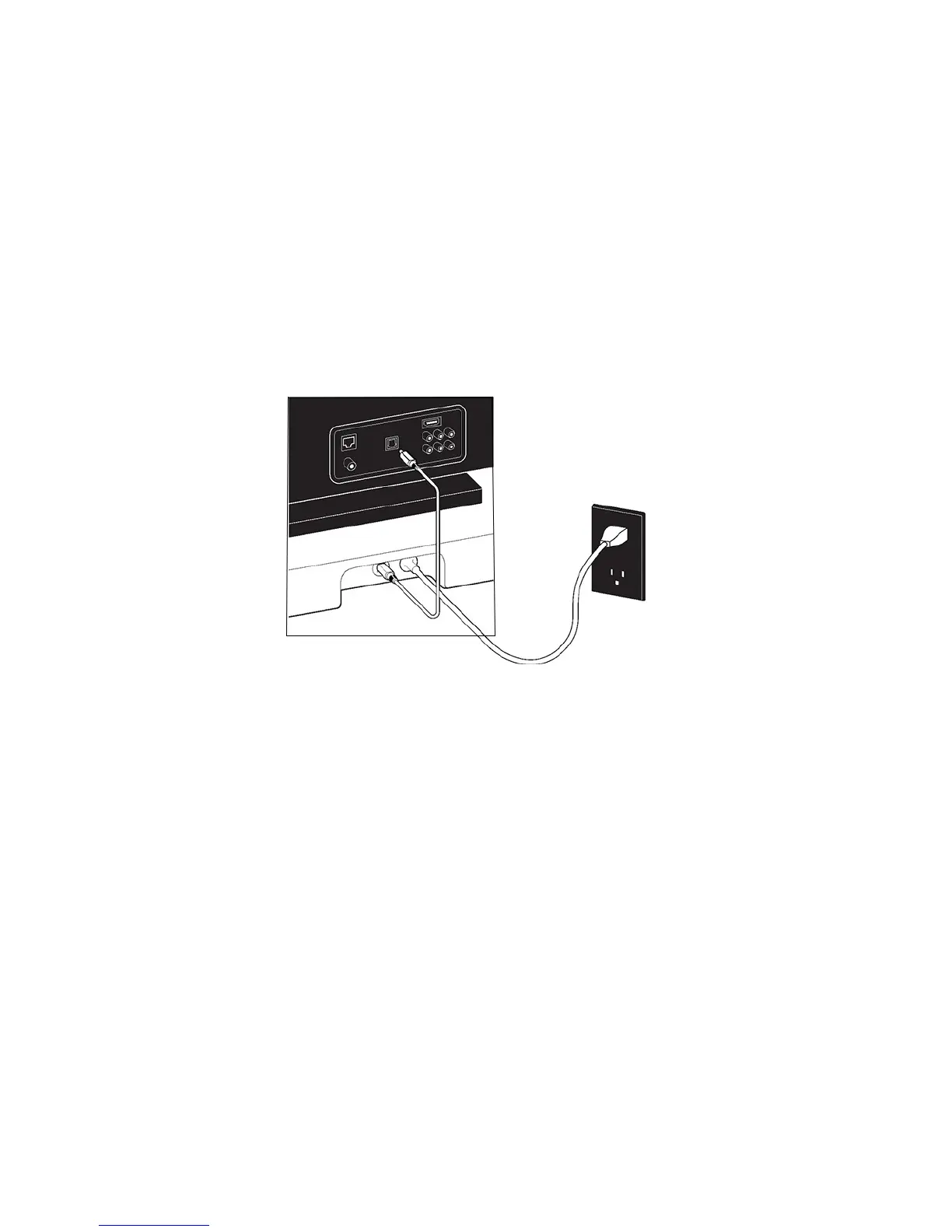

4. Connect the optical audio cable (supplied) from your TV’s digital audio out (optical) to the PLAYBASE’s
digital audio in (optical) being careful not to twist or bend the cable. The PLAYBASE digital audio in and
the optical cable are ’D-shaped’—make sure they align for proper insertion.
5. Attach the power cord to the PLAYBASE and plug it in, making sure to push the power cord all the way
into the PLAYBASE.
The status indicator light on top will begin to flash.
6. (OPTIONAL) If you are setting up your PLAYBASE with a SUB and/or surround speakers, put them where
you want them and plug them in.

(You’ll be prompted to add these after you’ve got the PLAYBASE set up.)
IMPORTANT: Be sure to
remove the protective
caps from each end of
the supplied optical
audio cable.

Sonos PLAYBASE Specifications

General

Control type	Touch
Volume control	Digital
Smartphone remote support	Yes
Internet radio services supported	Napster, Pandora, Slacker, Spotify, TuneIn, iTunes
Network streaming services supported	-
Product color	White
Number of drivers	10
Number of woofer drivers	1
Number of tweeter drivers	3
Number of mid-range drivers	6
USB port	No
Wi-Fi standards	802.11b, 802.11g
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Cables included	AC, LAN (RJ-45), Optical

Weight and Dimensions

Depth	380 mm
Width	720 mm
Height	58 mm
Weight	8600 g
