Instruction for use | Supercal 739

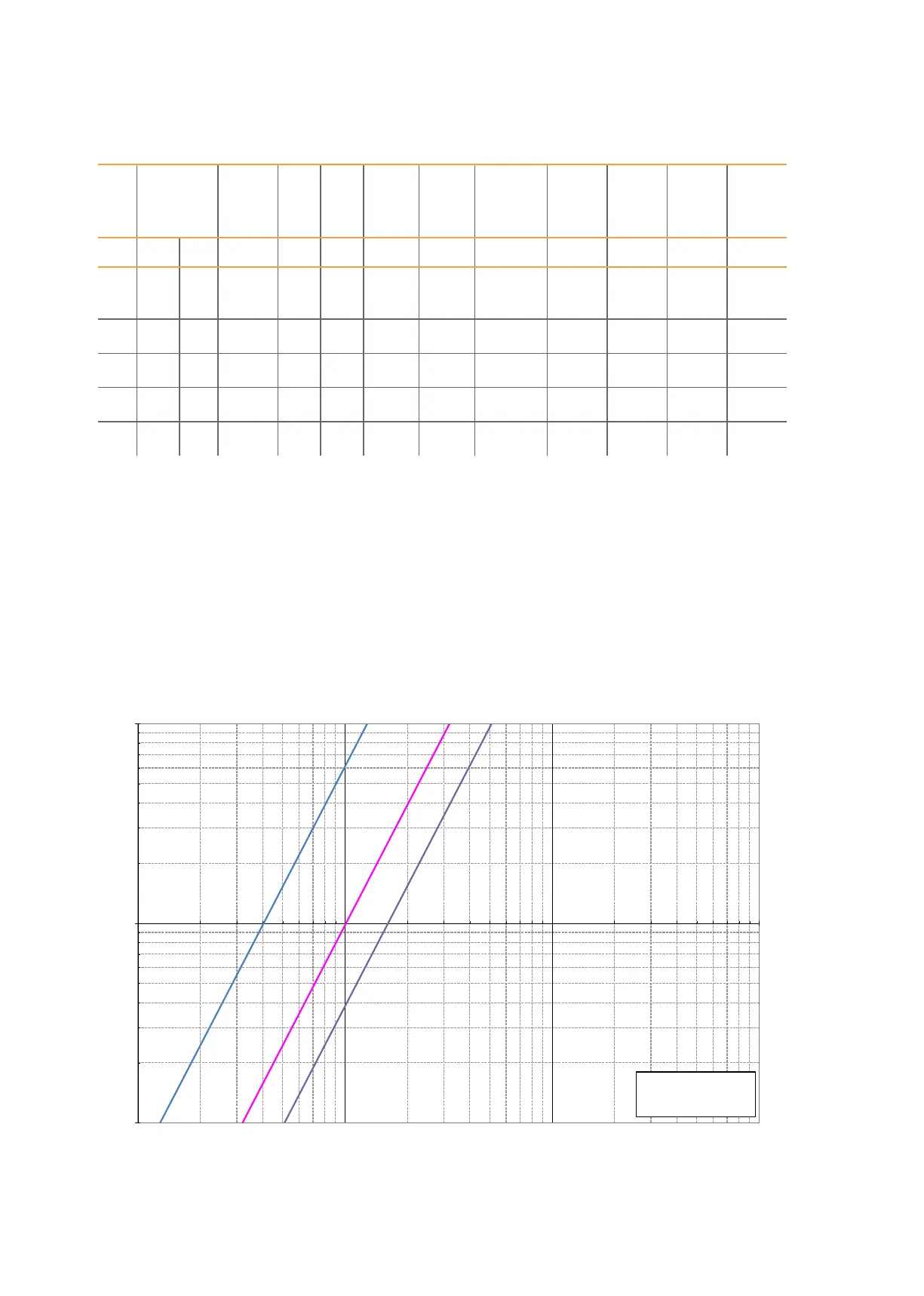

13.1 Single jet ow meter
13. Technical data
Qn Threaded
connection
Mounting
length
Mat PN Maximal
ow
qs
Minimal
ow
qi
Low ow
threshold
value
(50°C)
Threaded
hole for
sensor
Total
Meter
Weight
Kvs value
(20°C)
Pressure
loss at
qp
m
3
/h G'' DN mm bar m
3
/h l/h l/h Kg m
3
/h bar
(EN
ISO
228-1)
* (h / v)
0.6 3/4 '' (15) 110 Brass 16 1.2 12 / 24 3 yes 0.8 1.3 0.22
1.5 3/4'' (15) 110 Brass 16 3.0 30 / 60 3 yes 0.9 3.2 0.22
1.5 1'' (20) 130 Brass 16 3.0 30 / 60 3 yes 1.0 3.2 0.22
2.5 1'' (20) 130 Brass 16 5.0 50 /100 3 yes 1.1 5.1 0.24
*(h/v): horizontal / vertical mounting 16 bar = 1.6 MPa
Mounting
The Supercal 739 should not be mounted on the side where the continuous operating temperature of
the liquid exceeds 90°C or is below 5°C.
Length of straight section tted upstream/downstream of each ow meter (EN1434): U3 / D0 for:
L=110mm and L=130mm
qp 0.6
qp1.5
qp 2.5
0.01
0.1
1
0.1 1 10 100
Pressure loss [bar] ==>
Flow [m3/h] ==>
Pressure loss
Sontex Supercal 739
log-log
Pressure loss curve
