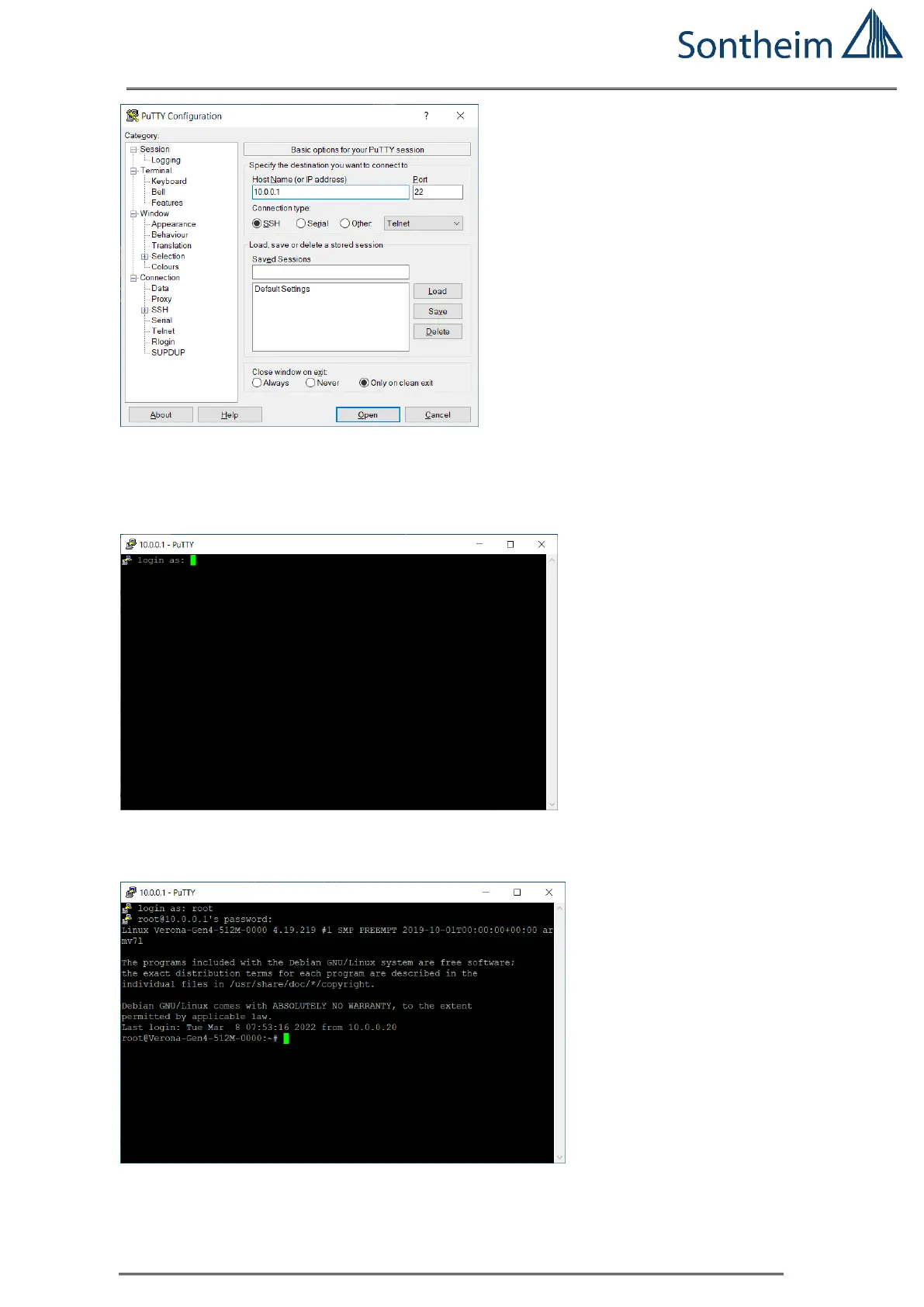

Figure 11 PuTTY Console to connect the COMhawk xt

The COMhawk xt / VERONA Gen 4 is connected.

Enter the login: root

Password: root

Figure 12 Enter the Login

After successful login the COMhawk xt / VERONA Gen 4 can be accessed:

Figure 13 COMhawk xt is connected
