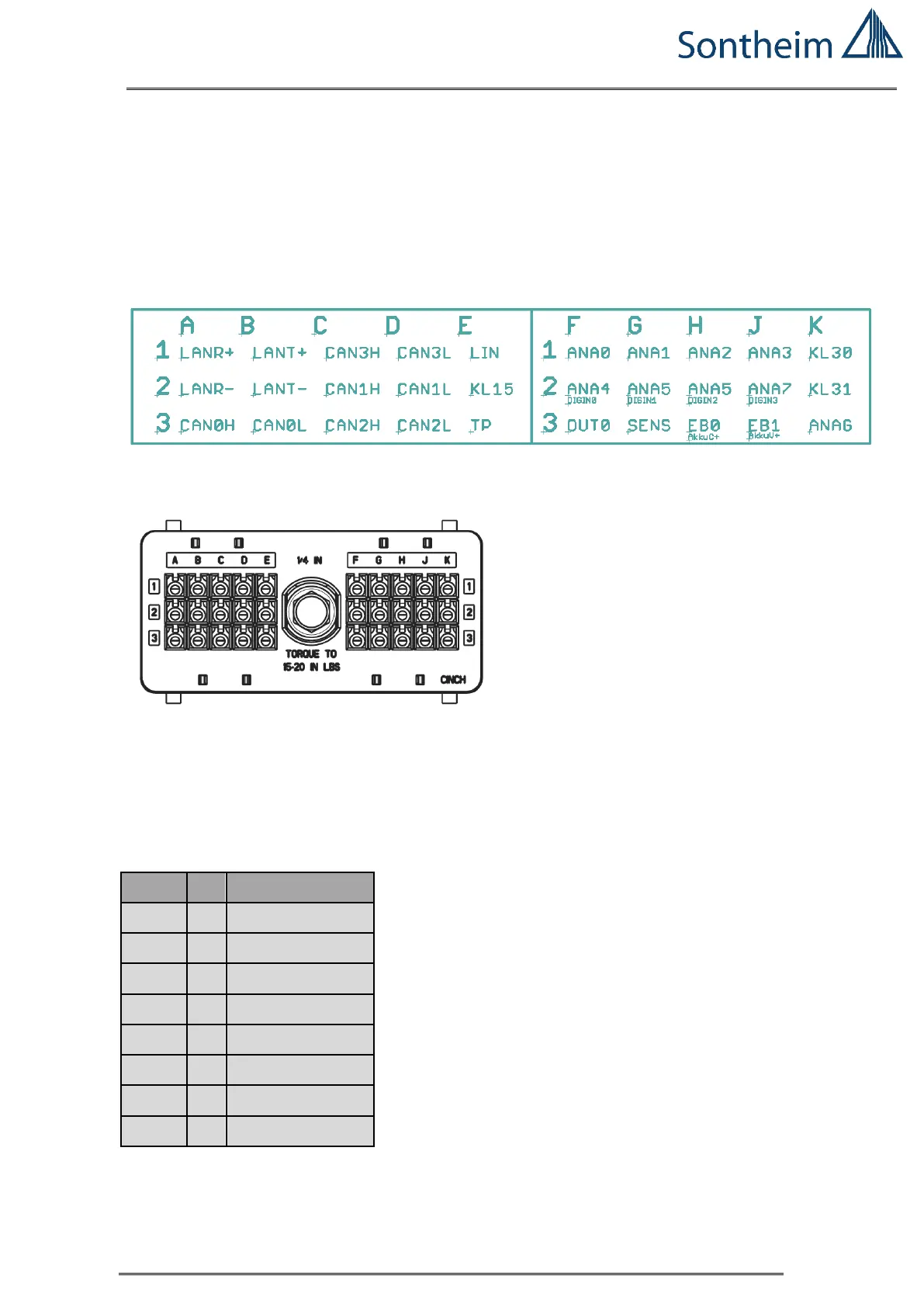

17. Verona Gen 4 Pinout

Figure 27 Verona Gen 4 Pinout

Figure 28 30 Pin Receptacle (Rear View)

Assignment of RJ45-connector

for Ethernet according to

EIA/TIA 568A (network cable):

Signal

Color

TX+

white/green

TX-

green

RX+

white/orange

blue

white/blue

RX-

orange

white/brown

brown

Figure 29 Ethernet RJ45-Plug and Network-Cable
