Sony BRAVIA KDL-40V3000 User Manual

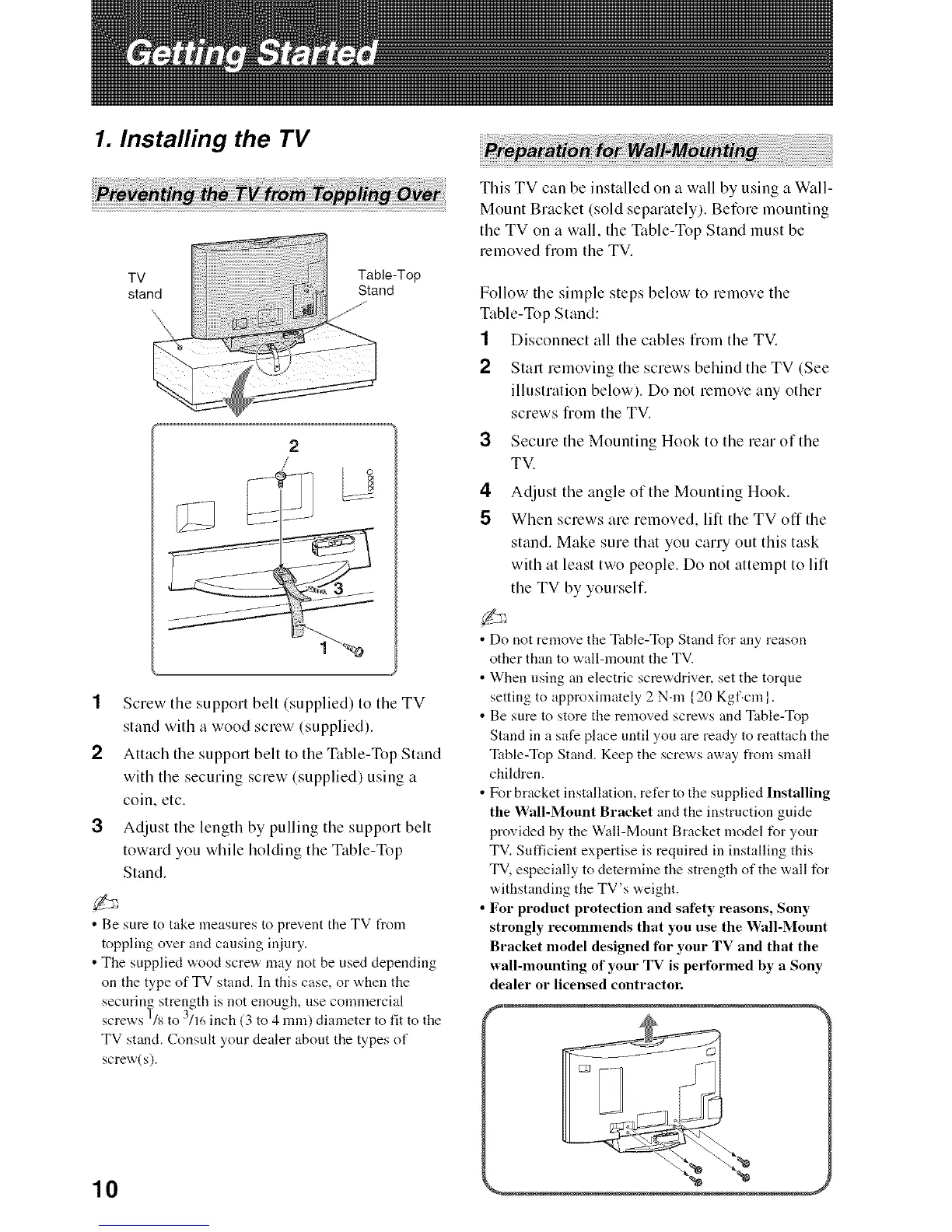

1. Installing the TV
2
!
1 Screw the support belt (supplied) to the TV
stand with a wood screw (supplied).
2 Attach the support belt to the Table-Top Stand
with the securing screw (supplied) using a
coin, etc.
3 Adjust the length by pulling the support belt
toward you while holding the Table-Top
Stand.
• Be sure to take measures to prevent the TV t_om
toppling over and causing injury.
• The supplied wood screw may not be used depending
on the type of TV stand. In this case, or when the
securing strength is not enough, use commercial
screws 1/8to 3/16 inch (3 to 4 ram) diameter to fit to the
TV stand. Consult your dealer about the types of
screw(s).
10
This TV can be installed on a wall by using a Wall-
Mount Bracket (sold separately). Before mounting
the TV on a wall, the Table-Top Stand must be
removed l¥om the TV.
Follow the simple steps below to remove the
Table-Top Stand:
Disconnect all the cables from the TV.1
2
Start removing the screws behind the TV (See
illustration below). Do not remove any other
screws from the TV.
Secure the Mounting Hook to the rear of the
TV.
4 Adjust the angle of the Mounting Hook.
5 When screws are removed, lift the TV off the
stand. Make sure that you carry out this task
with at least two people. Do not attempt to lilt
the TV by yourself.
• Do not remove the Table-Top Stand l\_r any reason
other than to wall-mount the TV.
• When using an electric screwdriver, set the torque
setting to approximately 2 N.m {20 Kgf.cm}.
• Be sure to store the removed screws and Table-Top
Stand in a safe place until you are ready to reattach the
Table-Top Stand. Keep the screws away from small
children.
• For bracket installation, refer to the supplied Installing
the Wall-Mount Bracket and the instruction guide
provided by the Wall-Mount Bracket model for your
TV. Sufficient expertise is required in installing this
TV, especially to determine the strength of the wall for
withstanding the TV's weight.
• For product protection and safety reasons, Sony
strongly recommends that you use the Wall-Mount
Bracket model designed for your TV and that the
wall-mounting of your TV is performed by a Sony
dealer or licensed contractor.
f

Sony BRAVIA KDL-40V3000 Specifications

Power

power consumption in operation	260 W
power consumption in standby	Less than 0.4 W
energy star compliant	Yes

Display

screen size	40 inches
aspect ratio	16:9
display resolution	1920 x 1080p

Inputs and Outputs

analog audio input(s)	5 (1 Side /4 Rear)
audio out (variable/fixed)	1 (Rear)
component video (Y/Pb/Pr ) input(s)	2 (Rear)

Weight and Dimensions

weight with pedestal	25.0 kg
dimensions with pedestal	992 x 688 x 265 mm
dimensions without pedestal	992 x 643 x 122 mm
