Overview
System Configuration
14
Using BRC-300/300P Cameras and VISCA-controllable Cameras in the
Same System
This system allows you:
• To operate up to seven cameras supporting the VISCA protocol such as EVI-D30/D30P, EVI-D70/D70P and EVI-
D100/D100P remotely using a single RM-BR300 Remote Control Unit
• To perform pan/tilt and zoom operations comfortably using the joystick
• To control the BRC-300/300P cameras remotely from a distance up to 500 m (1,640 feet) by transmitting the video
signal and control signal using the Optical Fiber Cable

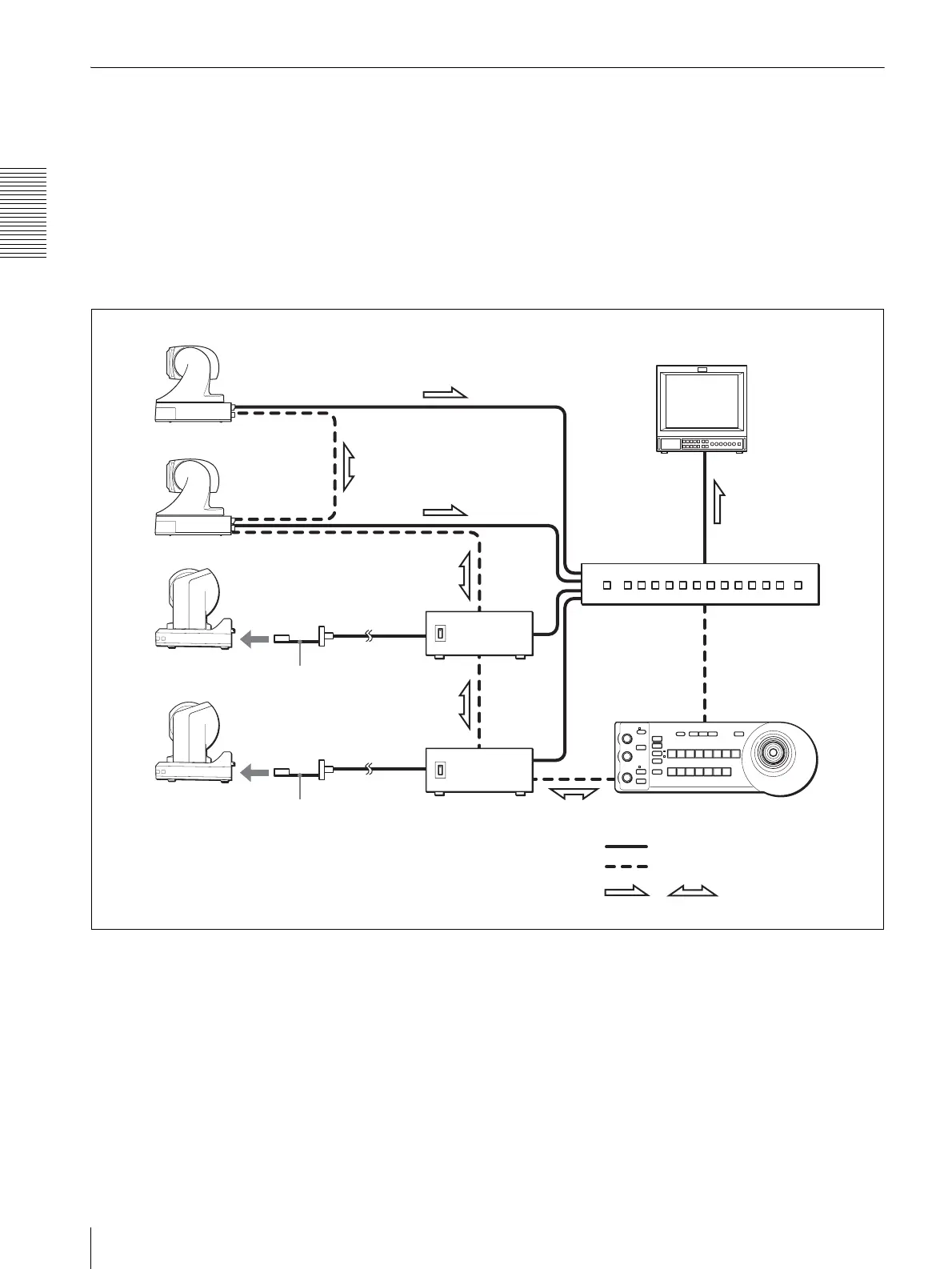

System configuration
,
VISCA-controllable camera
BRC-300/300P
BRC-300/300P
BRBK-303
BRBK-303 Optical
Multiplex Card
Video monitor, VTR, etc.
BRU-300/
300P
Video switcher
RM-BR300 Remote Control Unit
CCFC-M100
Optical Fiber
Cable
CCFC-M100
VISCA-controllable camera
BRU-300/300P
Optical Multiplex Unit
Video signal
Remote control (VISCA) signal
Signal flow
