Appendix
Specifications
64

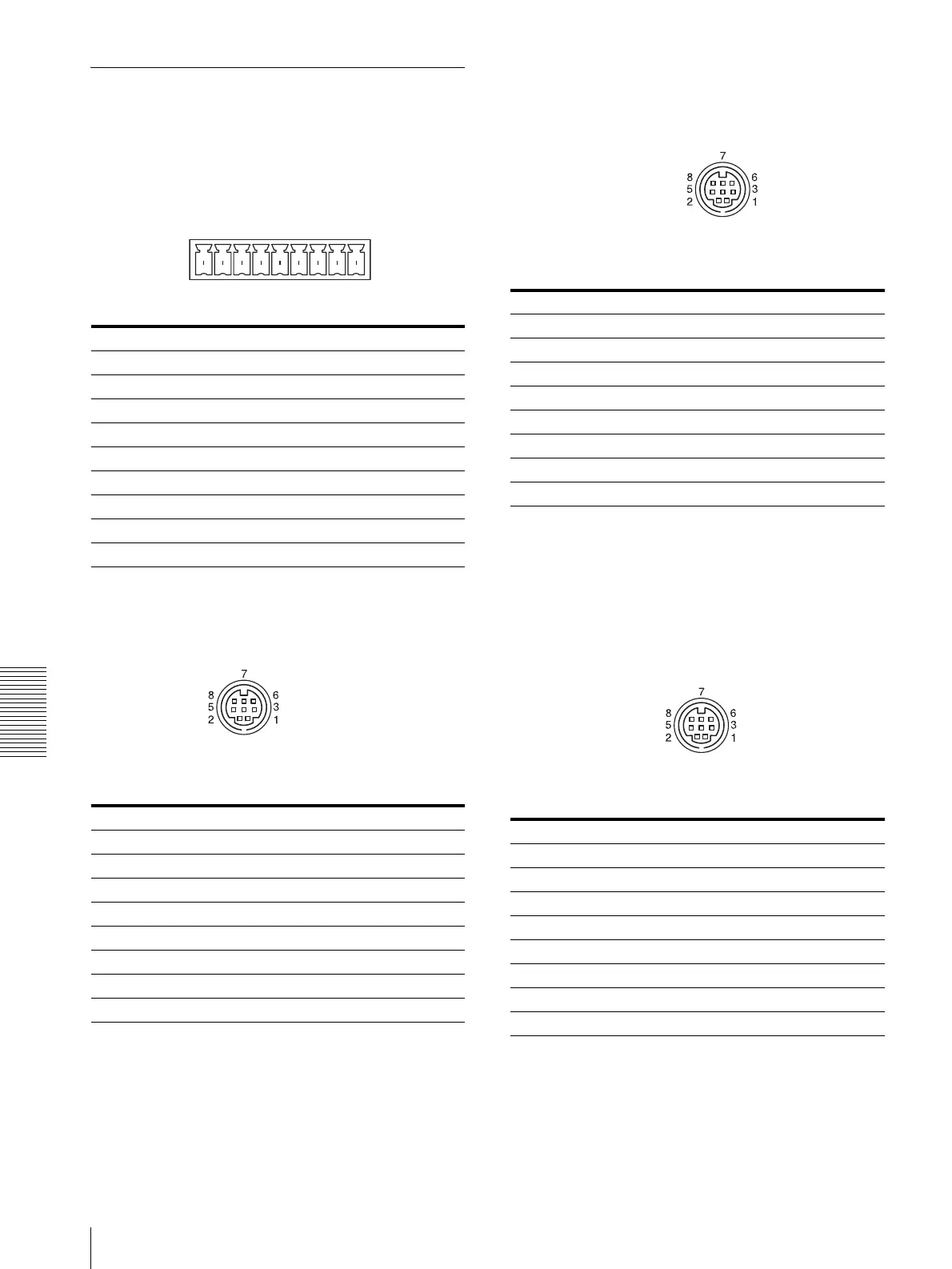

Pin Assignments
BRC-300/300P Video Camera
VISCA RS-422 connector (connector plug
9-pin)
VISCA RS-232C IN connector (mini-DIN 8-pin,
female)
* The SIRCS OUT function is selectable with the BOTTOM
switch on the bottom of the camera.
VISCA RS-232C OUT connector (mini DIN 8-pin,
female)
RM-BR300 Remote Control Unit
(optional)
VISCA RS-232C output connector (mini DIN 8-
pin, female)
Pin No. Function
1 RXD OUT-
2 RXD OUT+
3 TXD OUT-
4 TXD OUT+
5 GND
6 RXD IN-
7 RXD IN+
8 TXD IN-
9 TXD IN+
Pin No. Function
1DTR IN
2DSR IN
3 TXD IN
4 GND
5 RXD IN
6 GND
7 SIRCS OUT *
8 No Connection
12345
VISCA RS-422
6789
IN VISCA RS-232C
Pin No. Function
1DTR OUT
2 DSR OUT
3 TXD OUT
4 GND
5 RXD OUT
6 GND
7 No Connection
8 No Connection
Pin No. Function
1 No Connection
2 No Connection
3 TXD IN
4 GND
5 RXD IN
6 GND
7 No Connection
8 No Connection
VISCA RS-232C OUT
RS-232C
