1-3. Location and Function of Parts
1-3-1. Front Panel
AUTO SETUP PROBE connector
DEGAUSS switch
0 Tally lamp ------~
' SCAN MODE switches
SCREEN switches
MONO MODE switch
0 PHASE MANUAL switch and contro1-----~
~ CHROMA MANUAL switch and control----~
CD BRIGHTNESS MANUAL switch and control------'
@ CONTRAST MANUAL switch and contro1--------'
ce OVERLOAD lamp------------------'
~ MANUAL lamp-----------------~
G, INPUT selectors 1-4-------------------'
~ POWER switch and lamD---------------------'
The photo shows the BVM-1911. The parts configuration is common to the BVM-2011 P.

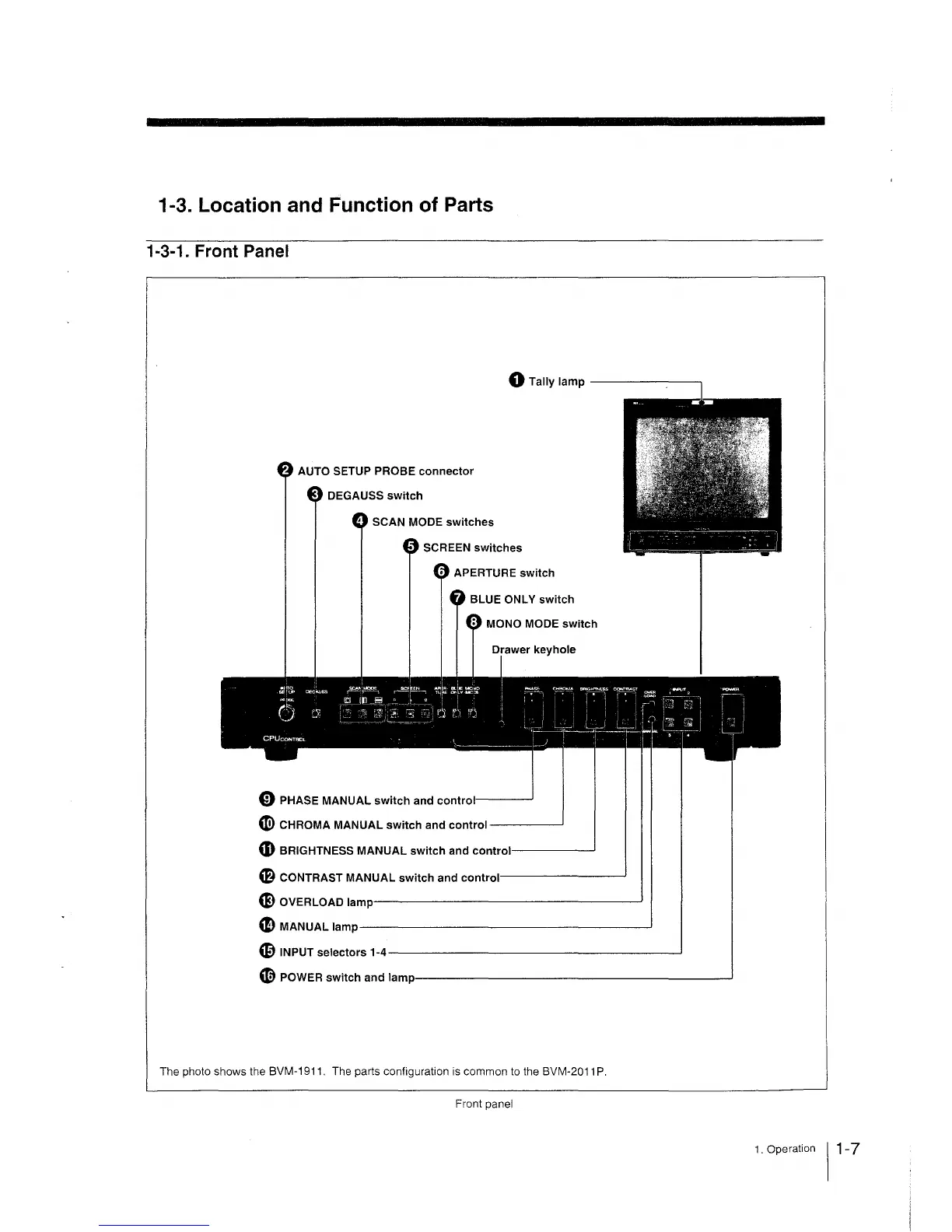

Front panel
