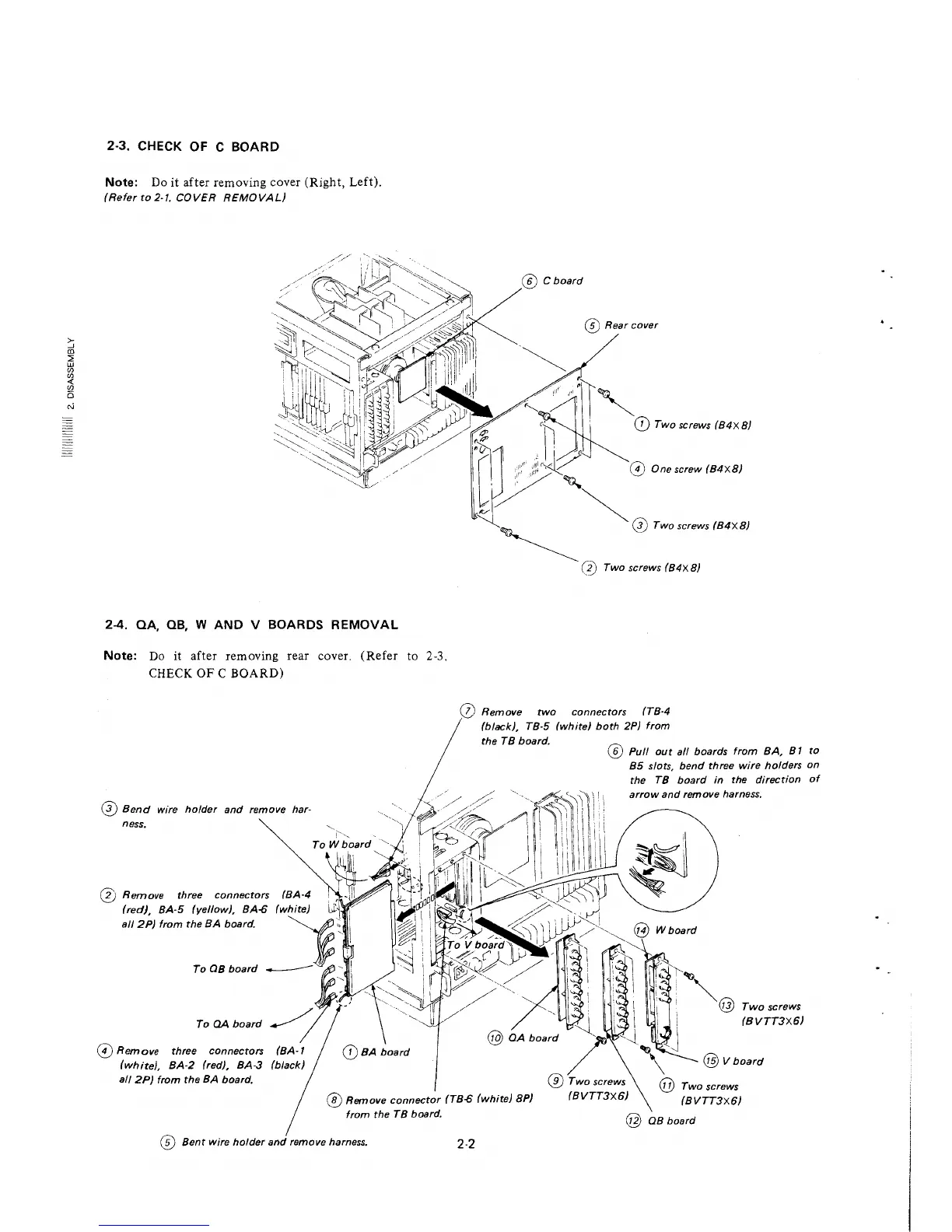

2-3. CHECK OF C BOARD
Note: Do it after removing cover (Right, Left).
(Refer to 2-1. COVER REMOVAL)
2-4. QA, QB, W AND V BOARDS REMOVAL
Note: Do it after removing rear cover. (Refer to 2-3.
CHECK OF C BOARD)
0 Bend wire holder and remove har-
ness.
@ Remove three connectors (BA-4
(red), BA-5 (yellow), BA-6
all 2P) from the BA board.
To QA board
0 Remove three connectors (BA-1
(white), BA-2 (red), BA-3 (black)
al/ 2P) from the BA board.
(I) Remove two connectors (TB-4
(black), TB-5 (white) both 2P) from
the TB board.
@ QA board
@ Pull out all boards from BA, 81 to
85 slots, bend three wire holders on
the TB board in the direction of
arrow and remove harness.
Two screws
(BVTT3X6)
@ Remove connector (TB-6 (white) BP)
from the TB board.
@Vboard
@ Two screws
(BVTT3X6)
@ QB board
@ Bent wire holder and remove harness.
2-2
To Next Page
