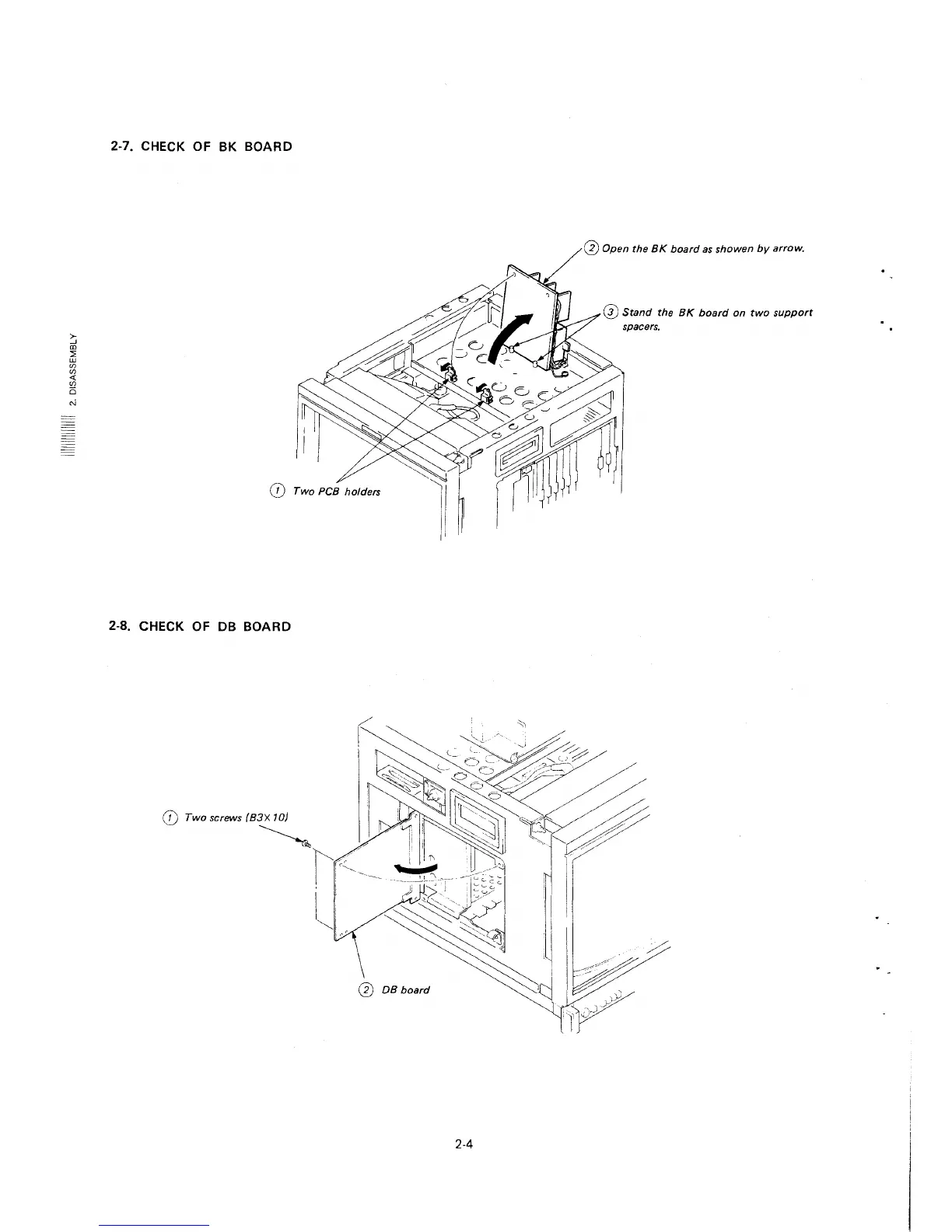

2-7. CHECK OF BK BOARD
(j) Two PCB holders
2-8. CHECK OF DB BOARD
2-4
@ Open the BK board as showen by arrow.
G) Stand the BK board on two support
spacers.
