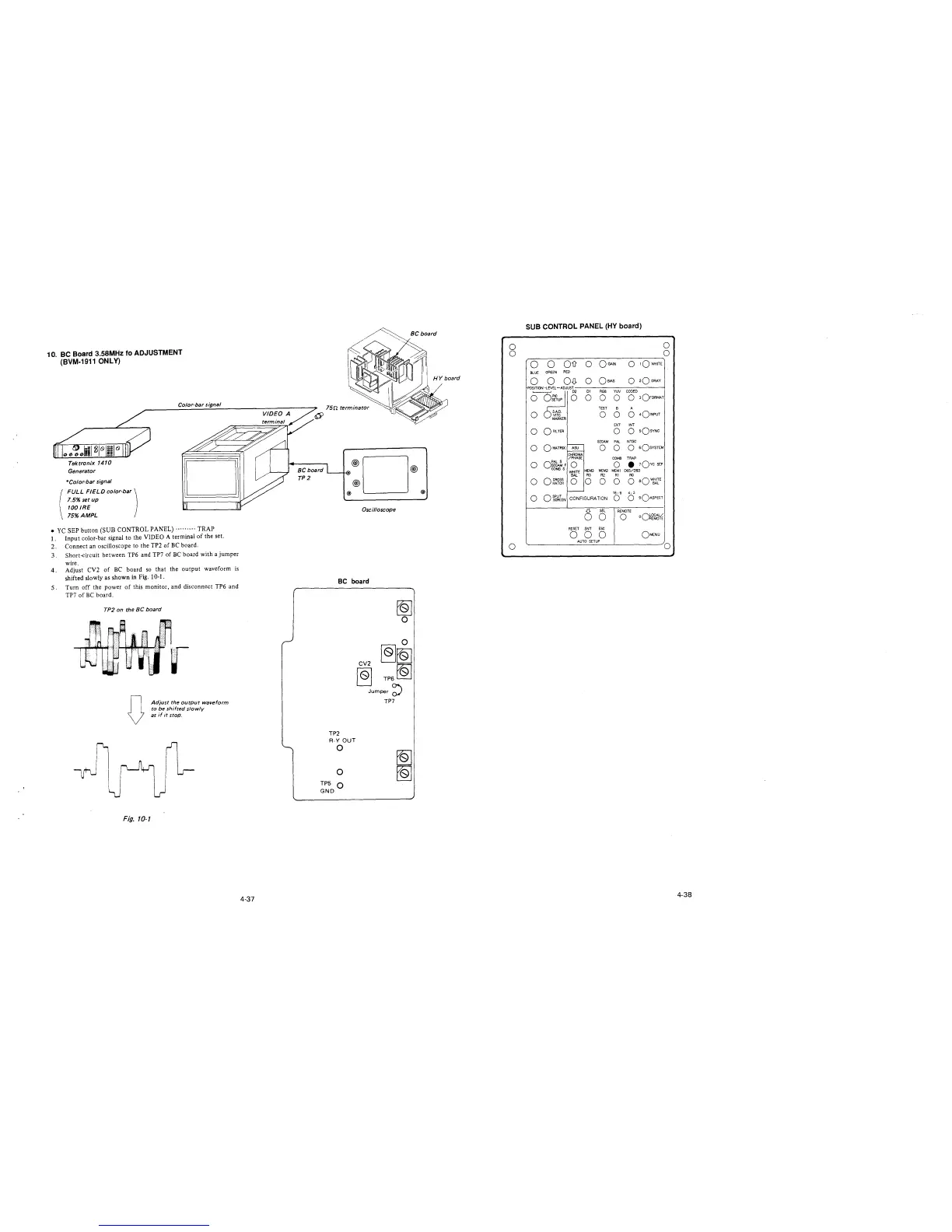

10. BC Board 3.58MHz fo ADJUSTMENT
(BVM-1911 ONLY)
Tektronix 1410
Generator
*Color-bar signal
FULL FIELD color-bar)
7.5% setup
100 IRE
75%AMPL
Co/or-bar signal
• YC SEP button (SUB CONTROL PANEL) ......... TRAP
1. Input color-bar signal to the VIDEO A terminal of the set.
2. Connect an oscilloscope to the TP2 of BC board.
3. Short-circuit between TP6 and TP7 of BC board with a jumper
wire.
4. Adjust CV2 of BC board so that the output waveform is
shifted slowly as shown in Fig. 10-1.
5. Turn off the power of this monitor, and disconnect TP6 and
TP7 of BC board.
TP2 on the BC board
D
Fig. 10-1
Adjust the output waveform
to be shifted slowly
as if it stop.
