Sony BVM-2011P - 18-2-9. BT Board Y;C DELAY Adjustment

18
_
2
_
9

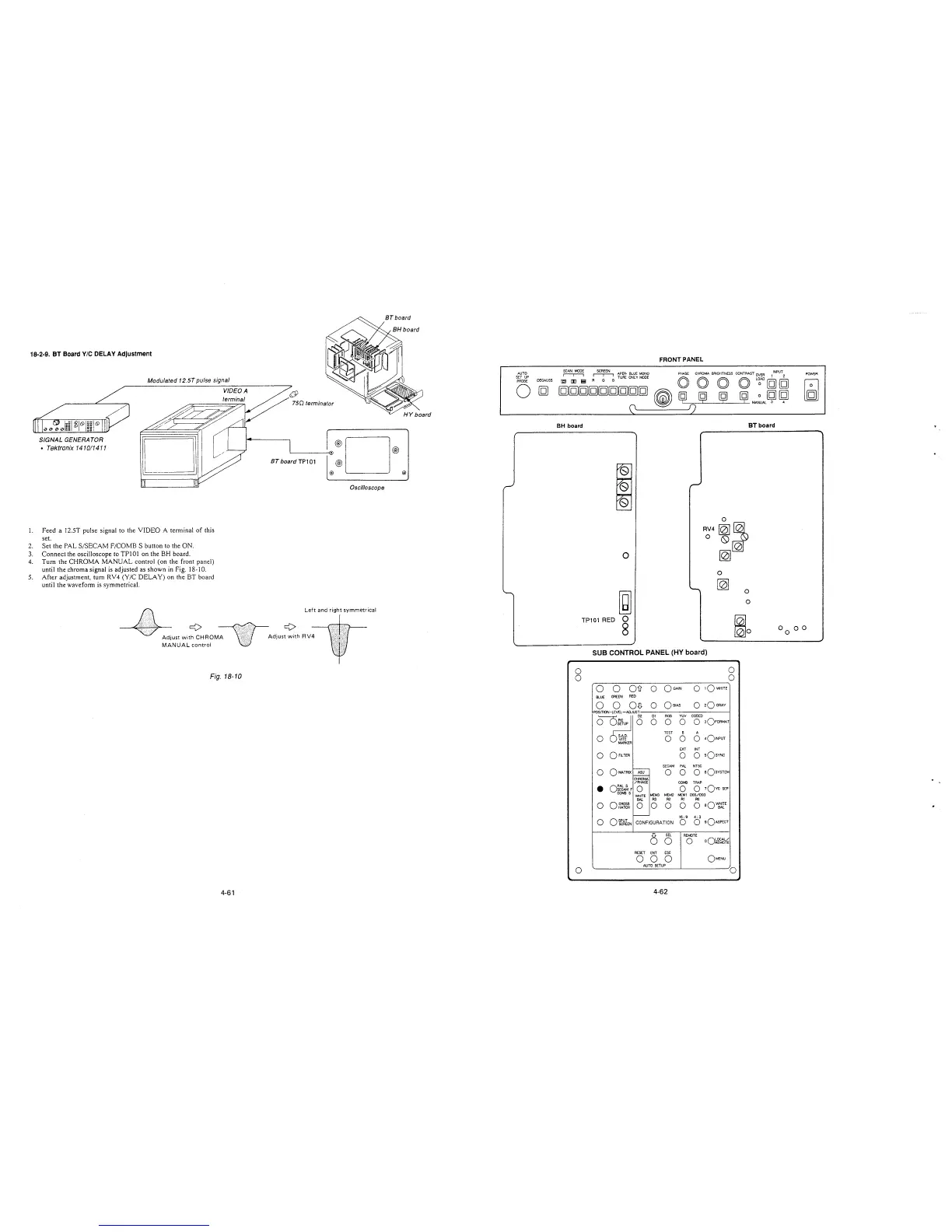

_ BT Board Y/C DELAY Adjustment
I.
2.
3.
4.
5.
Modulated 12.5T pulse signal
SIGNAL GENERA TOR
• Tektronix 1410/1411
0
Feed a 12.ST pulse signal to the VIDEO A tem1inal of this
set. h ON
Set the PAL S/SECAM F/COMB S button tot e .
Connect the oscilloscope to TPI0I on the BH board.
Tum the CHROMA MANUAL control (on _the _front panel)
until the chroma signal is adjusted as shown m Fig. 18-10.
After adjustment, tum RY4 (Y_/C DELAY) on the BT board
until the wavefom1 is symmetrical.
VIDEO A
Fig. 18-10
4-61
'----------,,; ® D ®
BT board TP101 @)
@)
Oscilloscope
Left and right symmetrical
©
AUTO
SET UP
