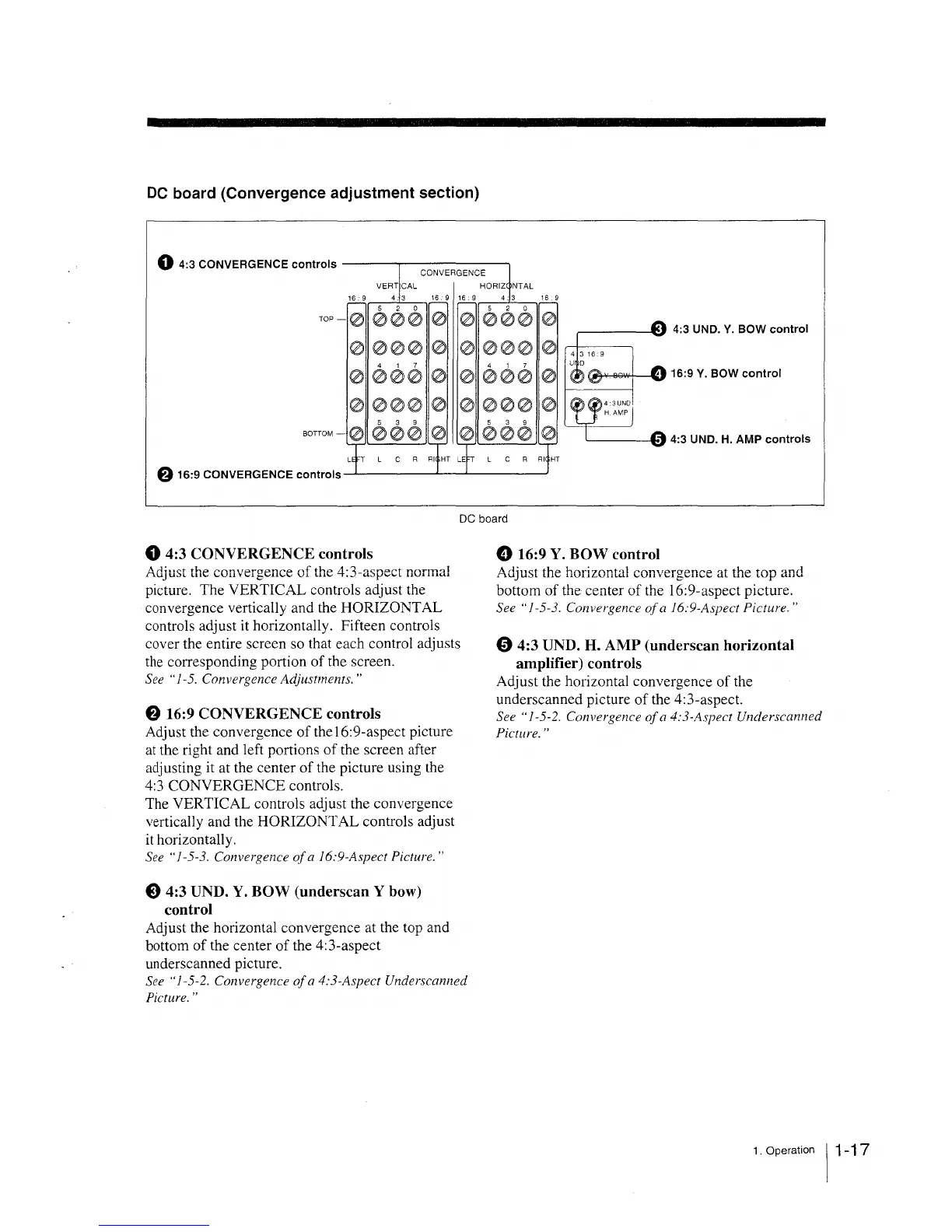

DC board (Convergence adjustment section)
0 4:3 CONVERGENCE controls
rj CONVERGENCE '.t
VERT CAL HORIZ NTAL
169 43 16916:9 43 16 9
5
2
0
TOP-
0
000
0
0 000
0
4
1
7
0
000
0
0
000
0
5 3 9
BOTTOM -
0
000
0
5 2 0
0
000
0
000
4 1 7
0 000
0 000
5
3
9
0
000
0
0
0
0
0
,-----~ 4:3 UND. Y. BOW control
4 3 16: 9
U D
~-----1~ 4:3 UND. H. AMP controls
f) 16:9 CONVERGENCE controls
L+T L
C R Rlf HT L+T L
C R RltHT
DC board
0 4:3 CONVERGENCE controls
Adjust the convergence of the 4:3-aspect normal
picture. The VERTICAL controls adjust the
convergence vertically and the HORIZONTAL
controls adjust it horizontally. Fifteen controls
cover the entire screen so that each control adjusts
the corresponding portion of the screen.
See "1-5. Convergence Adjustments. "
f) 16:9 CONVERGENCE controls
Adjust the convergence of the 16:9-aspect picture
at the right and left portions of the screen after
adjusting it at the center of the picture using the
4:3 CONVERGENCE controls.
The VERTICAL controls adjust the convergence
vertically and the HORIZONTAL controls adjust
it horizontally.
See "1-5-3. Convergence of a 16:9-Aspect Picture."
0 4:3 UND. Y. BOW (underscan Y bow)
control
Adjust the horizontal convergence at the top and
bottom of the center of the 4:3-aspect
underscanned picture.
See "1-5-2. Convergence of a 4:3-Aspect Underscanned
Picture."
C) 16:9 Y. BOW control
Adjust the horizontal convergence at the top and
bottom of the center of the 16:9-aspect picture.
See "1-5-3. Convergence of a 16:9-Aspect Picture."
0 4:3 UND. H. AMP (underscan horizontal
amplifier) controls
Adjust the horizontal convergence of the
underscanned picture of the 4:3-aspect.
See "1-5-2. Convergence of a 4:3-Aspect Underscanned
Picture."
1 . Operation 11 -1 7
