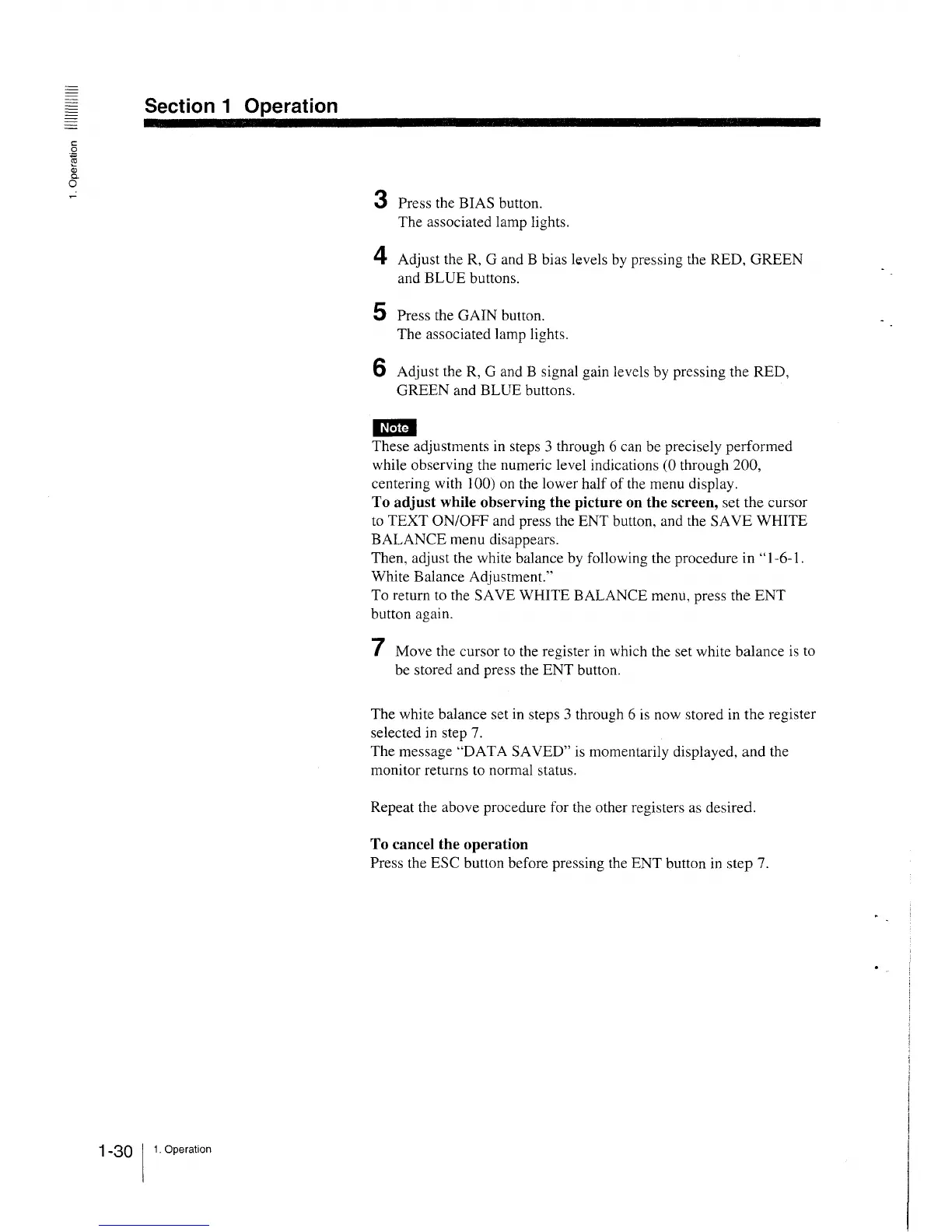

Section 1 Operation
1 -30 11. Operation
3 Press the BIAS button.
The associated lamp lights.
4 Adjust the R, G and B bias levels by pressing the RED, GREEN
and BLUE buttons.
5 Press the GAIN button.
The associated lamp lights.
6 Adjust the R, G and B signal gain levels by pressing the RED,
GREEN and BLUE buttons.
mn
These adjustments in steps 3 through 6 can be precisely performed
while observing the numeric level indications (0 through 200,
centering with I 00) on the lower half of the menu display.
To adjust while observing the picture on the screen, set the cursor
to TEXT ON/OFF and press the ENT button, and the SA VE WHITE
BALANCE menu disappears.
Then, adjust the white balance by following the procedure in "1-6-1.
White Balance Adjusrment."
To return to the SA VE WHITE BALANCE menu, press the ENT
button again.
7 Move the cursor to the register in which the set white balance is to
be stored and press the ENT button.
The white balance set in steps 3 through 6 is now stored in the register
selected in step 7.
The message "DAT A SAVED" is momentarily displayed, and the
monitor returns to normal status.
Repeat the above procedure for the other registers as desired.
To cancel the operation
Press the ESC button before pressing the ENT button in step 7.
