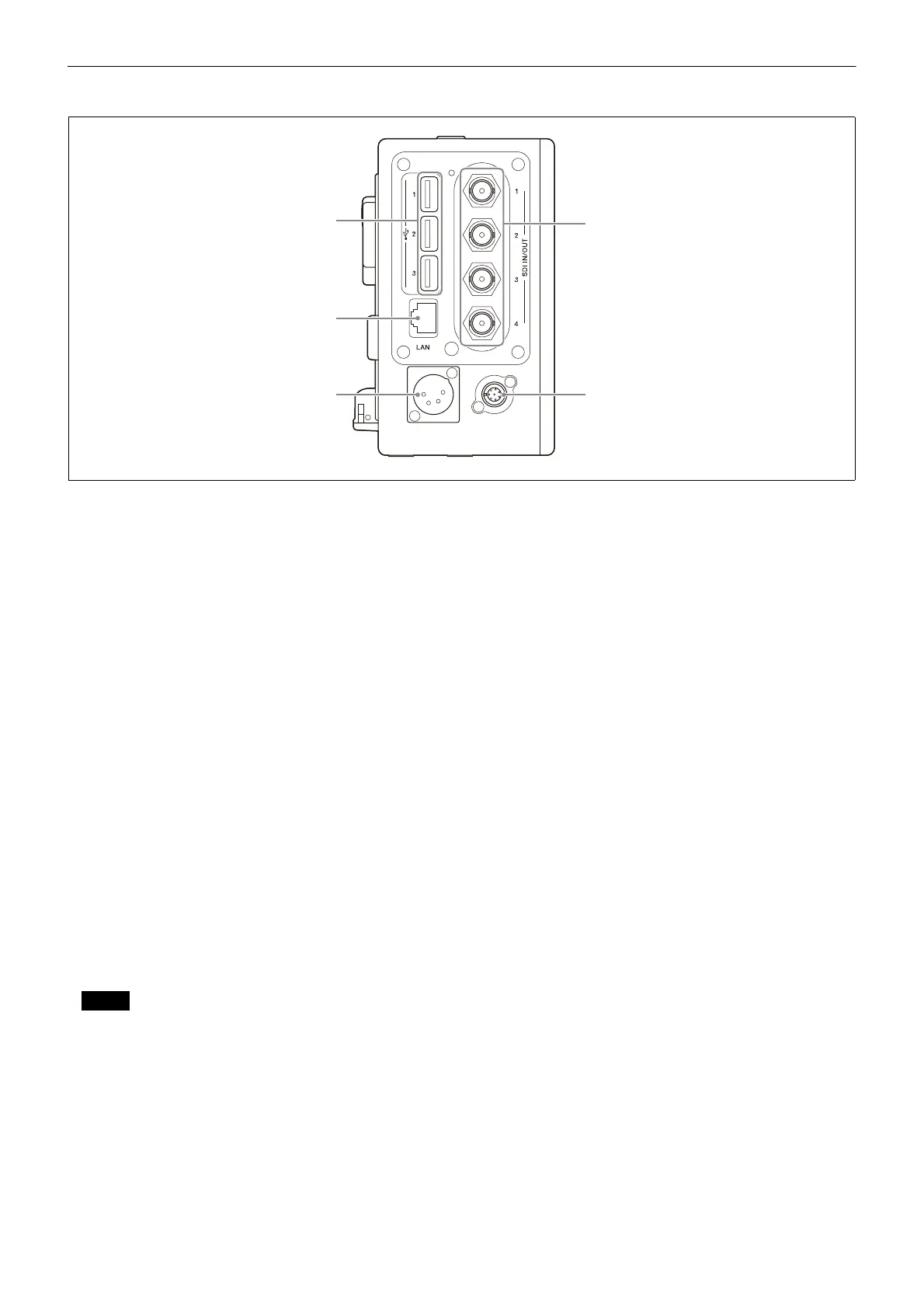

Rear
1 USB connectors × 3 (USB 3.0 (HOST) type A)
Connect to a 5G communications device with
tethering enabled to access the web menu and to
send video. The function is the same
regardless of
which USB connector is used.
2 Wired LAN connector (RJ-45 type, with LED)
Connect to a computer within a LAN to access the
we
b menu and to send video.
CAUTION
For safety, do not connect the connector for
peripheral device wiring that might have
excessive voltage to the following port:
–LAN
3 DC IN connector (XLR type, 4-pin)
4 SDI IN/OUT connectors × 4 (BNC type)
Use to input SDI signals.
Connector 1 supports 12G-SDI connection.
Connectors 1 to 4 combined
support 3G-SDI (Quad
Link) connection.
5 REMOTE (remote control) connector (8-pin)
The SDI OUT function and remote
control
function are not supported in software version
1.0.
Note
