Sony CDP-3100 - Safety Check-Out; Leakage Test

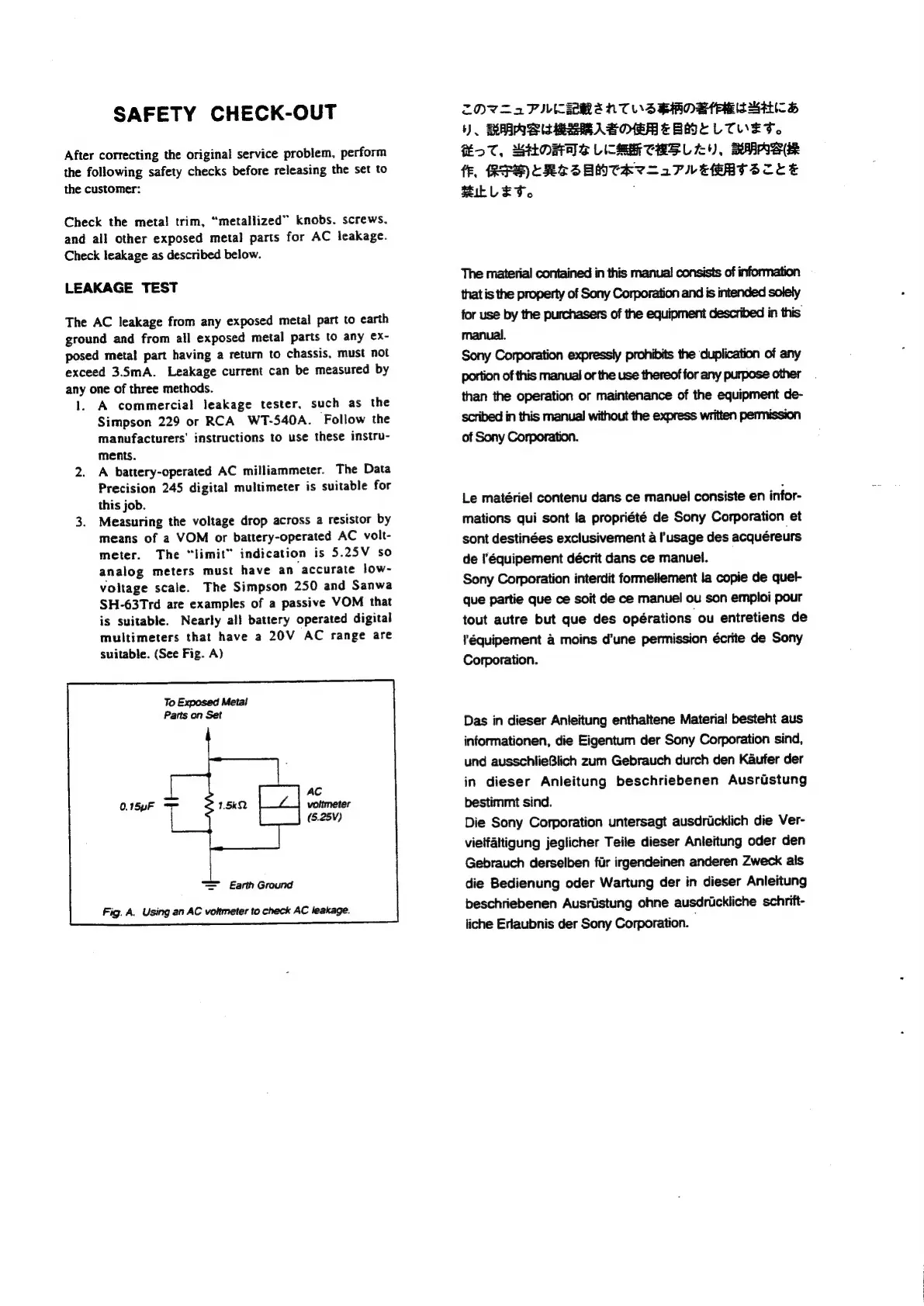

SAFETY CHECK-OUT
After
correcting
the
original
service
problem,
perform
the
following
safety
checks
before
releasing
the
set
to
the
customer:
Check
the
metal
trim,
“metallized”
knobs.
screws.
and
all
other
exposed
metal
parts
for
AC
leakage.
Check
leakage
as
described
below.
LEAKAGE TEST
The
AC
leakage
from
any
exposed
metal
part
to
earth
ground
and
from
all
exposed
metal
parts
to
any
ex-
posed
metal
part
having
a
return
to
chassis,
must
not
exceed
3.5mA.
Leakage
current
can
be
measured
by
any
one
of
three
methods.
1.
A
commercial
leakage
tester,
such
as
the
Simpson
229
or
RCA
WT-540A.
Follow
the
manufacturers’
instructions
to
use
these
instru-
ments.
2.
A
battery-operated
AC
milliammeter.
The
Data
Precision
245
digital
multimeter
is
suitable
for
this
job.
3.
Measuring
the
voltage
drop
across
a
resistor
by
means
of
a
VOM
or
battery-operated
AC
volt-
meter.
The
“limit”
indication
is
5.25V
so
analog
meters
must
have
an
accurate
low-
voltage
scale.
The
Simpson
250
and
Sanwa
SH-63Trd
are
examples
of
a
passive
VOM
that
is
suitable.
Nearly
all
battery
operated
digital
multimeters
that
have
a
20V
AC
range
are
suitable.
(See
Fig.
A)
To Exposed Metal
Parts on Set
AC
voltmeter
(5.25V)
= Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
LOVi a PIVICIRS nT US RAOS HE BHI S
), BRASIBERARORRt BHC LTET.
Hol, SHORNS LICR CHSL EY, BRASS
tf, RFECRESBWCHAVIAPUVEERTS CEE
SEL ET.
The material contained in this manual consists of information
that is the property of Sony Corporation and is intended solely
for use by the purchasers of the equipment described in this
manual.
Sony Corporation expressly prohibits the duplication of any
portion of this manual or the use thereof for any purpose other
than the operation or maintenance of the equipment de-
scribed in this manual without the express written permission
of Sony Corporation.
Le matériel contenu dans ce manuel! consiste en infor-
mations qui sont la propriété de Sony Corporation et
sont destinées exclusivement a usage des acquéreurs
de l'équipement décrit dans ce manuel.
Sony Corporation interdit formeliement la copie de quel-
que
partie
que
ce
soit
de
ce
manuel
ou
son
emploi
pour
tout autre but que des opérations ou entretiens de
'équipement a moins d'une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Materia! besteht aus
informationen, die Eigentum der Sony Corporation sind,
und ausschlieBlich zum Gebrauch durch den Kaufer der
in dieser Anleitung beschriebenen Ausristung
bestimmt sind.
Die Sony Corporation untersagt ausdriicklich die Ver-
vielfaltigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben fir irgendeinen anderen Zweck als
die Bedienung oder Wartung der in dieser Anleitung
beschriebenen
Ausriustung
ohne
ausdrickliche
schrift-
liche Erlaubnis der Sony Corporation. .
