– 49 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 112 4-991-138-21 PANEL, BACK (SP)
* 112 4-991-138-31 PANEL, BACK (US)
* 112 4-991-138-41 PANEL, BACK (CND)
113 4-952-197-01 PLATE (TR), GROUND
114 4-959-077-01 DAMPER
* 115 1-657-094-11 TRANS BOARD (SP)
* 115 1-666-290-11 TRANS BOARD (EXCEPT SP)
116 4-962-329-01 DAMPER
* 117 3-670-570-31 SPACER, SUPPORT
118 4-929-302-81 WASHER
! CNP1 1-558-568-21 CORD, POWER (AEP, SP)
! CNP1 1-559-583-21 CORD, POWER (US, CND)
! CNP1 1-696-571-11 CORD, POWER (UK)
! T991 1-427-938-11 TRANSFORMER, POWER (AEP, UK)
! T991 1-427-997-11 TRANSFORMER, POWER (SP)
! T991 1-431-437-11 TRANSFORMER, POWER (US, CND)
101 4-970-124-01 CUSHION (F50180S)
102 4-970-123-01 FOOT (F50180S)
103 4-955-939-01 WASHER (CASE)
104 4-886-821-11 SCREW, S TIGHT, +PTTWH 3X6
105 1-777-873-11 WIRE (FLAT TYPE) (16 CORE) (10cm)
* 106 A-4699-751-A POWER BOARD, COMPLETE (EXCEPT UK)
* 106 A-4699-756-A POWER BOARD, COMPLETE (UK)
107 4-949-302-11 WASHER
* 108 A-4699-745-A MAIN BOARD, COMPLETE (US, CND)
* 108 A-4699-749-A MAIN BOARD, COMPLETE (AEP)
* 108 A-4699-755-A MAIN BOARD, COMPLETE (UK)
* 108 A-4699-757-A MAIN BOARD, COMPLETE (SP)
* 109 4-923-873-01 BRACKET, CORD STOPPER
* 110 3-703-244-00 BUSHING (2104), CORD
111 3-704-515-21 SCREW (BV/RING)
* 112 4-991-138-01 PANEL, BACK (AEP)
* 112 4-991-138-11 PANEL, BACK (UK)
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
103
102
101
102
114
103
101
#4
#6
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
T991
#1
#1
#1
#1
#1
#1
#1
mechanism deck
(CDM36B-14C)
#1
#1
#1
#4
118
116
#1
not supplied
#1
#1
104
113
104
117
115
107
107
107
105
108
107
109
110
111
AEP, UK
111
112
106
US, CND
CNP1
CNP1
CNP1
AEP, SP
UK
#1
not supplied

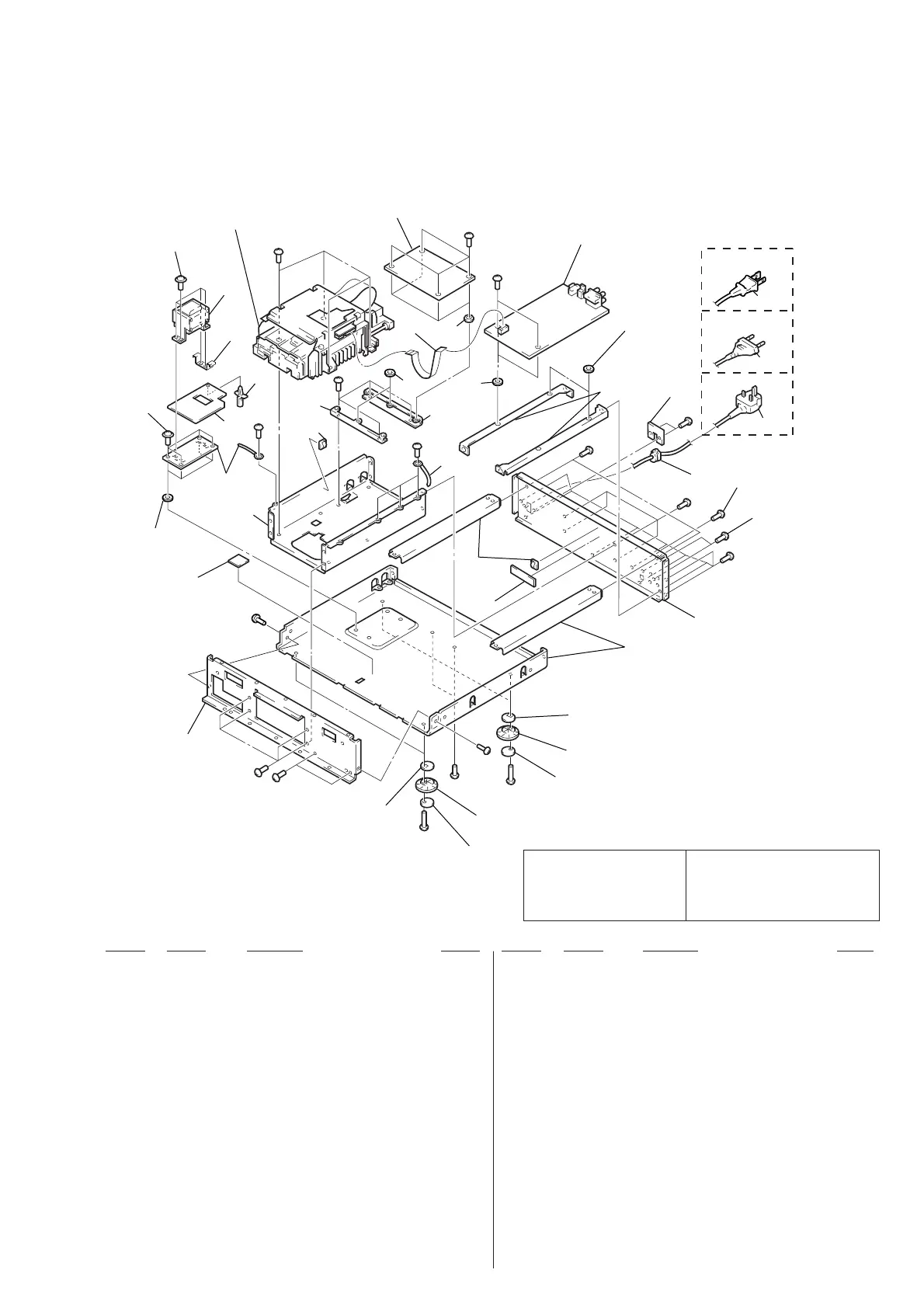

(3) CHASSIS SECTION
To Next Page
