– 32 –
SECTION 7

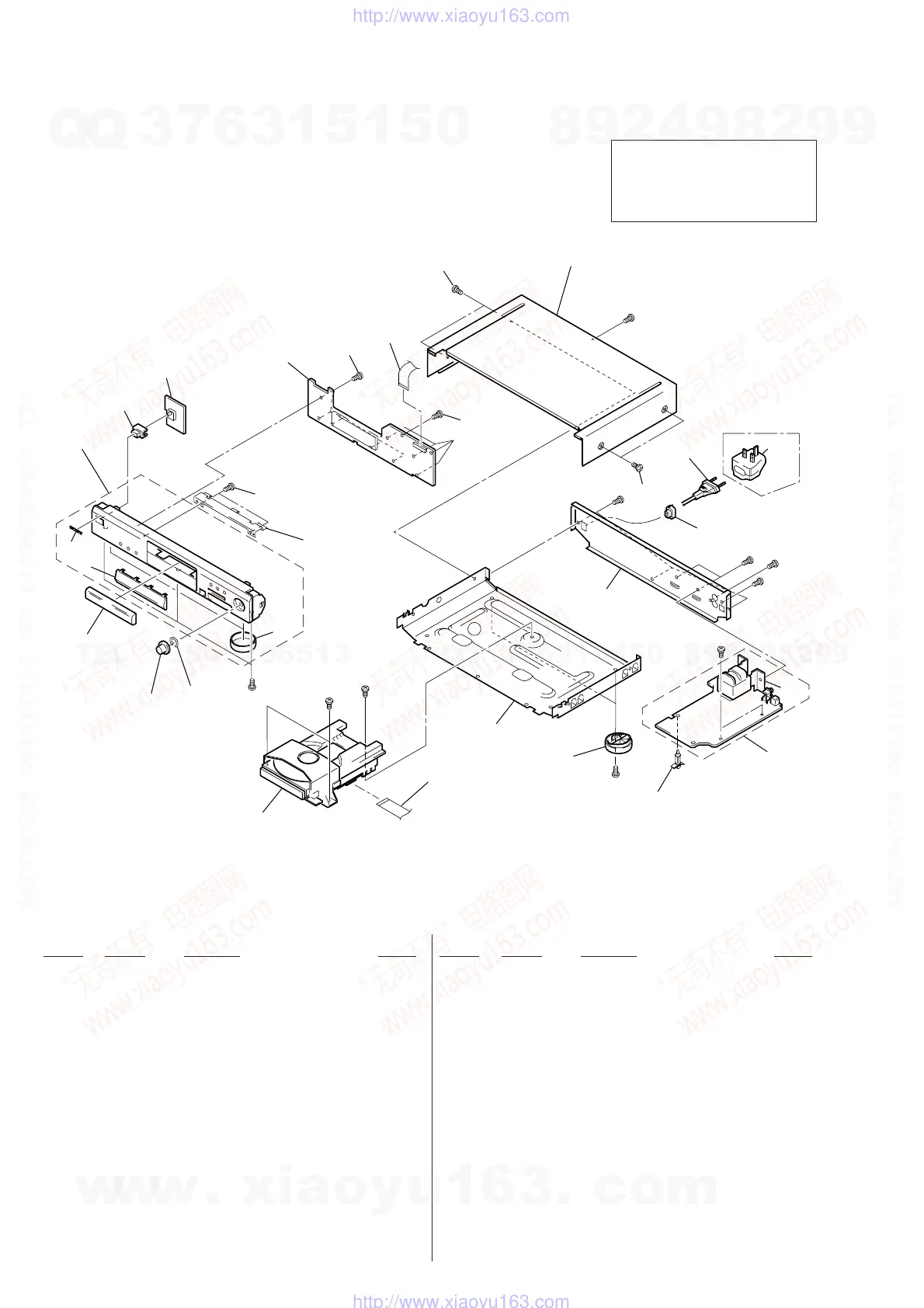

EXPLODED VIEWS
7-1. MAIN SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 14 4-978-901-21 CASE (408226)…(BLACK)
* 14 4-980-193-41 CASE (408226)…(SILVER) (XE220)
!15 1-575-651-21 CORD, POWER
16 X-4947-207-1 FOOT ASSY (F50150S)
* 17 4-954-051-51 HOLDER, PC BOARD
* 18 A-4699-941-A MAIN BOARD, COMPLETE
* 19 4-996-565-01 PANEL, BACK (XE320:AEP)
* 19 4-996-565-11 PANEL, BACK (XE320:UK)
* 19 4-996-565-21 PANEL, BACK…(BLACK) (XE220:AEP)
* 19 4-996-565-31 PANEL, BACK…(BLACK) (XE220:UK)
* 19 4-996-565-41 PANEL, BACK…(SILVER) (XE220)
20 4-966-267-11 BUSHING (FBS001), CORD
!21 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)
!T901 1-423-979-11 TRANSFORMER, POWER
1 4-996-562-01 PANEL, LOADING…(BLACK)
1 4-996-562-51 PANEL, LOADING…(SILVER) (XE220)
2 4-996-687-21 KNOB (AMS)
3 4-996-698-21 EMBLEM, SONY
4 4-996-560-01 WINDOW (FL)
5 4-977-593-01 RING (DIA. 50), ORNAMENTAL
6 X-4949-358-1 PANEL ASSY, FRONT…(BLACK) (XE220)
6 X-4949-424-1 PANEL ASSY, FRONT (XE320)
6 X-4952-810-2 PANEL ASSY, FRONT…(SILVER) (XE220)
7 4-977-589-71 BUTTON (POWER)
* 8 1-668-618-11 POWER SW BOARD
9 4-951-620-01 SCREW (2.6X8), +BVTP
* 10 A-4699-942-A PANEL BOARD, COMPLETE
11 1-590-243-11 WIRE (FLAT TYPE) (21 CORE)
12 3-354-981-01 SPRING (SUS), RING
13 4-210-291-11 SCREW, TAPPING…(SILVER) (XE220)
13 3-710-901-11 SCREW, TAPPING…(BLACK)
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number
specified.
UK model
CDM14FL-5BD29C
1
2
12
3
4
5
6
7
8
9
9
10
11
13
13
14
11
16
17
18
19
20
15
21
T901
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
not supplied
9
Ver 1.1 2001.05
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
