– 34 –

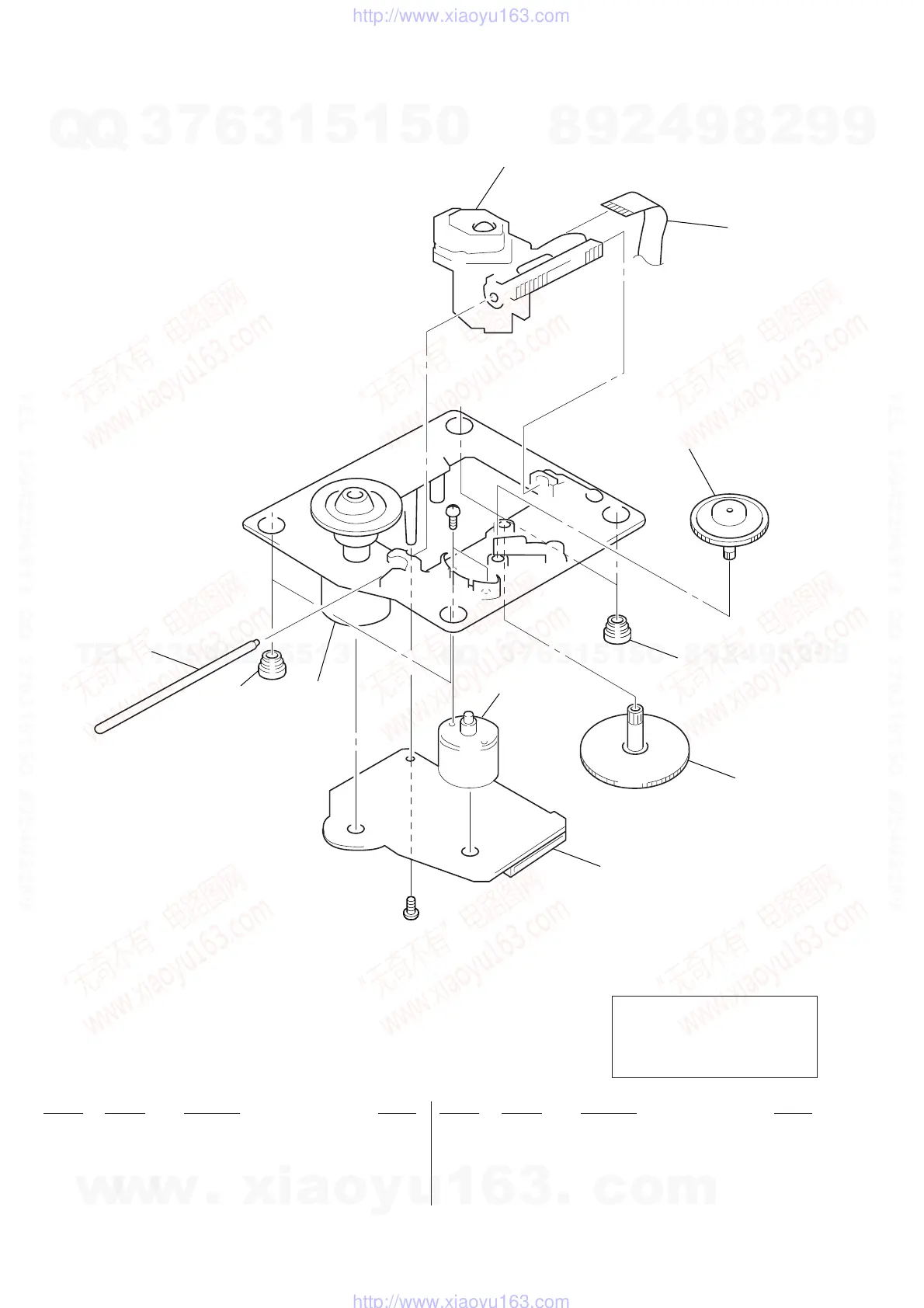

7-3. BASE UNIT SECTION (BU-5BD29C)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151
152
153
154
156
M102
M101
#4
#3
157
155
154
! 151 8-848-379-31 OPTICAL PICK-UP KSS-213BA/F-NP
152 1-769-069-11 WIRE (FLAT TYPE)(16 CORE)
153 4-917-567-21 GEAR (M)
154 4-951-940-01 INSULATOR (BU)
155 4-917-565-01 SHAFT, SLED
156 4-917-564-01 GEAR (P), FLATNESS
* 157 A-4699-944-A BD BOARD, COMPLETE
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number
specified.
