Ref. No. Part No. Description Remark
R41 1-216-093-00METAL CHIP 68K5% 1/10W
R42 1-216-107-00METAL CHIP 270K5% 1/10W
R43 1-216-097-00METAL GLAZE 100K5% 1/10W
R44 1-216-085-00METAL CHIP 33K5% 1/10W
R45 1-216-081-00METAL CHIP 22K5% 1/10W
R46 1-216-097-00METAL GLAZE 100K5% 1/10W
R47 1-216-105-00METAL GLAZE 220K5% 1/10W
R48 1-216-073-00METAL CHIP 10K5% 1/10W
R49 1-216-065-00METAL CHIP 4.7K5% 1/10W
R50 1-216-065-00METAL CHIP 4.7K5% 1/10W
R51 1-216-295-00CONDUCTOR, CHIP (2012)
< VARIABLE RESISTOR >
RV1 1-238-091-11RES, ADJ, CERMET 22K
RV4 1-238-091-11RES, ADJ, CERMET 22K
************************************************************
*1-659-834-11SUB BOARD
**********
< CONNECTOR >
CN1 1-770-347-21CONNECTOR, FPC 6P
************************************************************
MISCELLANEOUS
***************
12 1-769-786-71CORD (WITH CONNECTOR) (POWER)
!210 8-848-402-02PICK-UP, OPTICAL KSS-520A/J2NP
F501 1-532-877-11FUSE (BLADE TYPE) (AUTO FUSE) 10A
M901 X-3371-664-1MOTOR ASSY (SPINDLE)
M902 A-3291-674-AMOTOR ASSY, SLED
M903 A-3291-676-AMOTOR SUB ASSY, LOADING
************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
4-H00-065-01MANUAL, INSTRUCTION
4-H00-066-01MANUAL, INSTRUCTION, INSTALL
(ENGLISH,FRENCH)
3-937-057-11CASE ASSY
************************************************************
Ref. No. Part No. Description Remark
SERVO SUB
The components identified by mark
! or dotted line with mark. ! are
critical for safety.
Replace only with part number
specified.
**************
HARDWARE LIST
**************
#1 7-627-000-00SCREW, PRECISION +P 1.7X2.2 TYPE 3
#2 7-685-791-09SCREW +PTT 2.6X5 (S)
#3 7-685-792-09SCREW +PTT 2.6X6 (S)
#4 7-685-793-09SCREW +PTT 2.6X8 (S)
#5 7-621-772-10SCREW +B 2X4
#6 7-685-106-19SCREW +P 2X10 TYPE2 NON-SLIT
#7 7-628-253-00SCREW +PS 2X4
#87-627-553-37PRECISION SCREW +P 2X3 TYPE 3
#9 7-627-553-17PRECISION SCREW +P 2X2 TYPE 3
#10 7-627-850-28SCREW, PRECISION +P 1.4X3
************************************************************

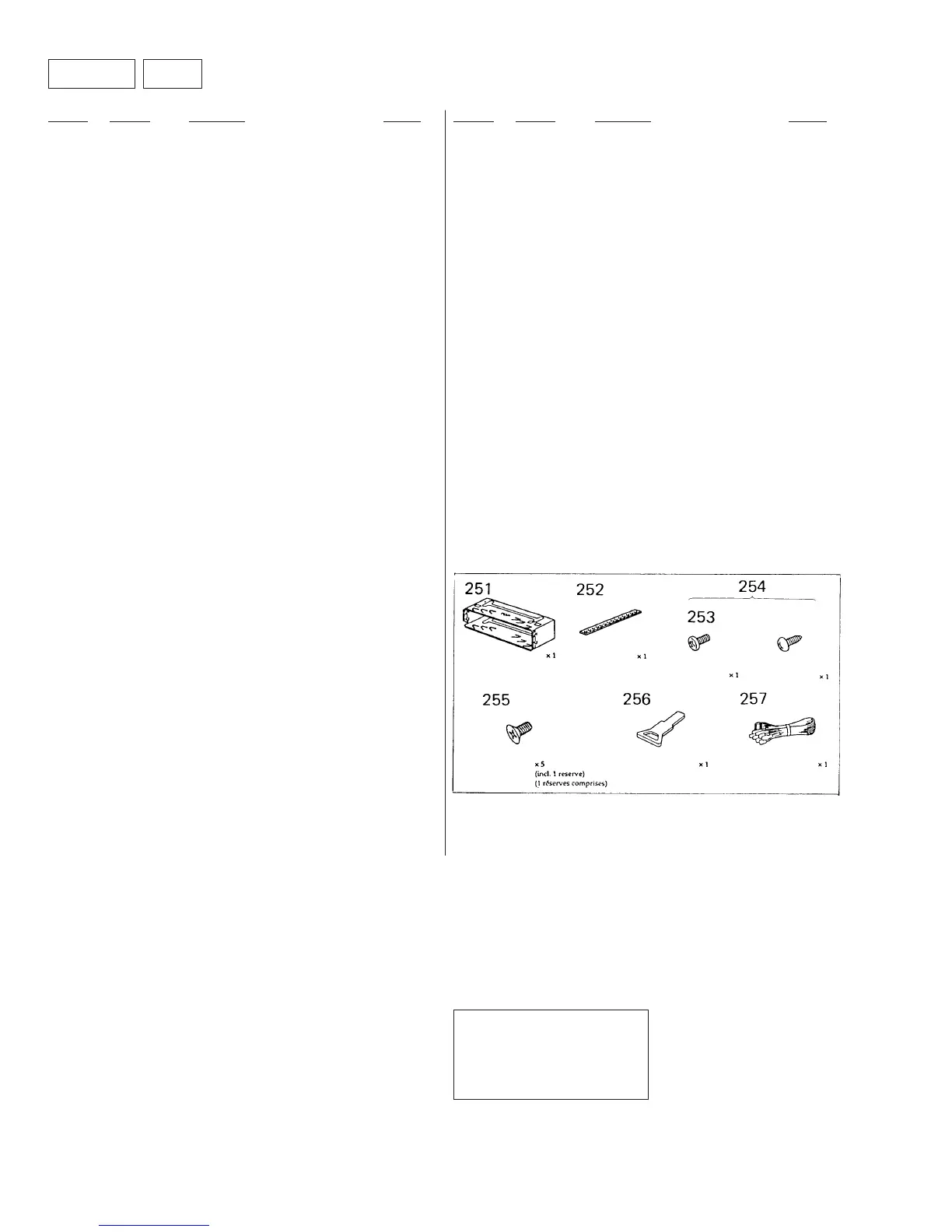

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
251X-3370-077-2 CONJ. ACESSORIES
2523-916-012-01BRACKET (ND), FITTING ASSIST
2537-682-560-04SCREW +P 4X6
254X-3368-725-1SCREW ASSY, FITTING
2513-931-986-41 FRAME, FITTING
256 3-388-078-01KEY
257 1-769-786-71CORD (WITH CONNECTOR) (POWER)
