40
CDX-CA600/CA600X
R20 1-216-809-11 METAL CHIP 100 5% 1/16W
R21 1-216-821-11 METAL CHIP 1K 5% 1/16W
R22 1-216-821-11 METAL CHIP 1K 5% 1/16W
R24 1-216-864-11 METAL CHIP 0 5% 1/16W
R25 1-216-864-11 METAL CHIP 0 5% 1/16W
R26 1-216-797-11 METAL CHIP 10 5% 1/16W
R29 1-216-833-11 METAL CHIP 10K 5% 1/16W
R30 1-216-833-11 METAL CHIP 10K 5% 1/16W
< SWITCH >
SW1 1-762-944-12 SWITCH, DETECTION (SMALL TYPE) (DOWN)
< VIBRATOR >
X1 1-795-520-21 VIBRATOR, CERAMIC (16.9344MHz)
*************************************************************
1-683-282-11 SL SW BOARD
************
< SWITCH >
SW4 1-529-565-41 SWITCH, PUSH (1 KEY) (LIMIT)
*************************************************************
1-683-930-11 SPEAKER BOARD (supplied with
MAIN BOARD, COMPLETE)
**************
*************************************************************
MISCELLANEOUS
***************
3 1-776-207-82 CORD (WITH CONNECTOR) (POWER) (E)
3 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK)
201 X-3378-480-1 CHASSIS (OP) ASSY (including M901)
207 1-823-641-11 CABLE, FLEXIBLE FLAT (6 CORE)
0210 8-820-103-11 PICK-UP, OPTICAL KSS-720A/C-RP
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M902 A-3301-985-A MOTOR ASSY, SLED (SLED)
M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)
*************************************************************
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
ACCESSORIES
************
1-476-526-31 REMOTE COMMANDER (RM-X115) (E)
3-230-047-01 LID, BATTERY CASE (for RM-X115) (E)
3-238-730-11 MANUAL, INSTRUCTION (ENGLISH,GERMAN,
FRENCH,ITALIAN,DUTCH)
(AEP,UK)
3-238-730-21 MANUAL, INSTRUCTION (ENGLISH,
TRADITIONAL CHINESE) (E)
3-238-731-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
GERMAN,FRENCH,ITALIAN,DUTCH)
(AEP,UK)
3-238-731-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
TRADITIONAL CHINESE) (E)
X-3380-054-2 CASE ASSY (for FRONT PANEL)
*************************************************************

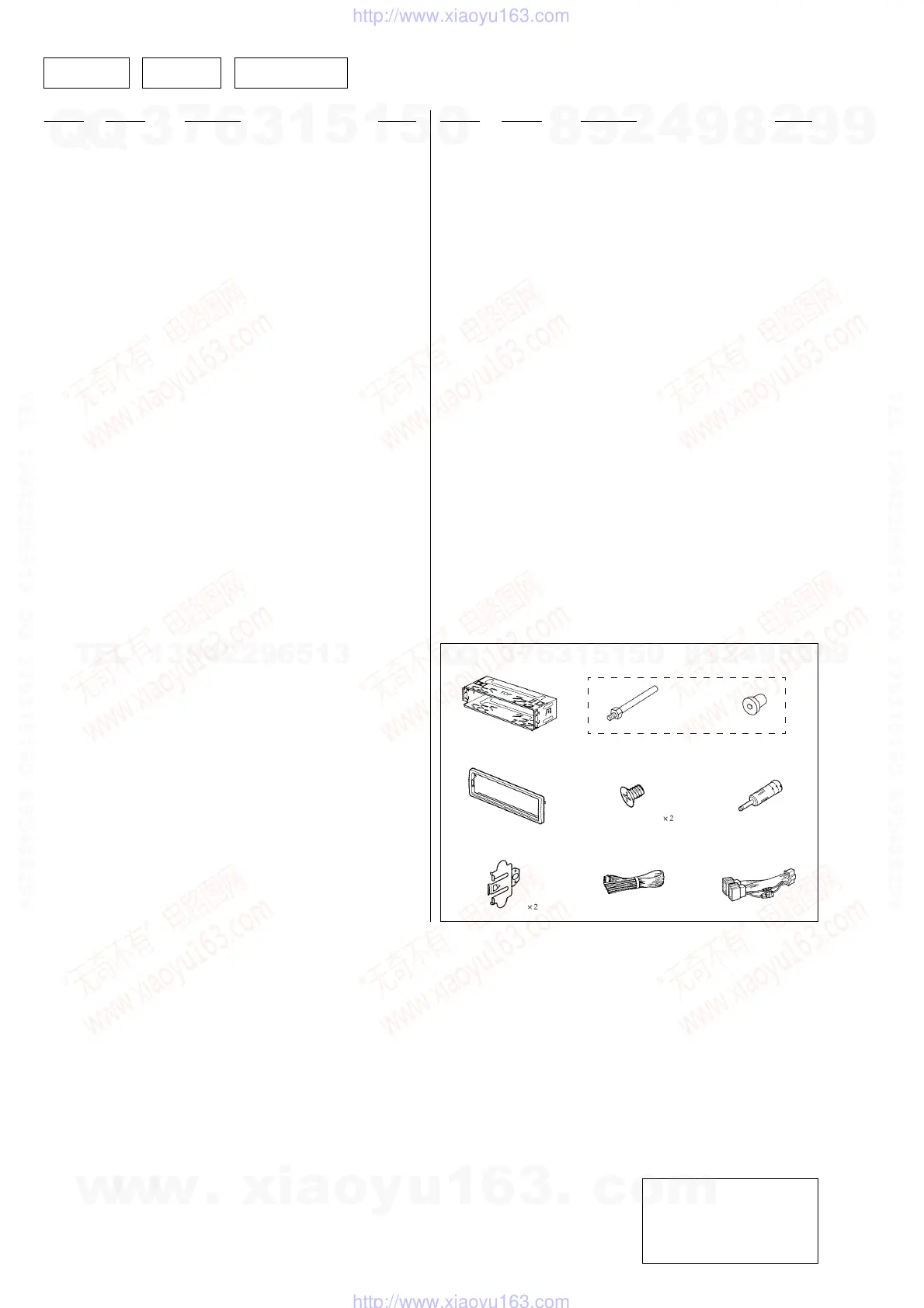

PARTS FOR INSTALLATION AND CONNECTION
*************************************
251 3-014-370-21 FRAME, FITTING
252 X-3366-405-1 SCREW ASSY (EXP), FITTING
253 3-236-923-01 COLLAR
254 3-934-325-01 SCREW (+K 5X8 TP)
255 1-465-459-21 ADAPTOR, ANTENNA (AEP,UK)
256 3-030-929-04 SPRING, FITTING
257 1-776-207-82 CORD (WITH CONNECTOR) (POWER) (E)
258 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
SERVO
SL SW SPEAKER
252251
253 254 255
256 257 258
