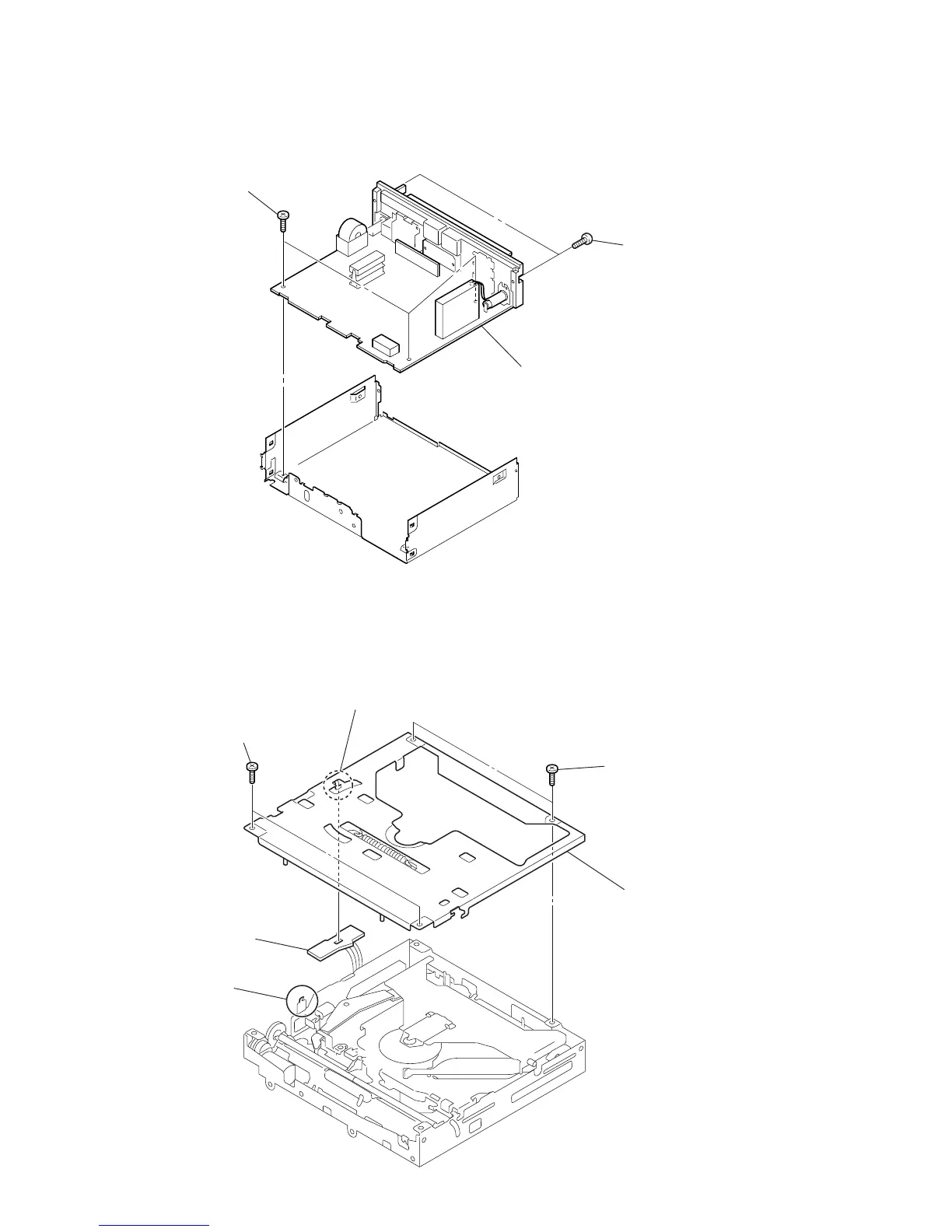

CDX-F5000/FW500
2-4. CHASSIS (T) SUB ASSY
2-3. MAIN BOARD
1
three screws
(+BTT)
3
MAIN board
2
two
screws
(+PTT 2.6
x
8
)
5
SENSOR board
6
chassis (T) sub assy
4
claw
1
two
screws
(+P 1.7
x
2.2)
2
two
screws
(+P 1.7
x
2.2)
3
claw
