31
CDX-F5000/FW500
SECTION 4

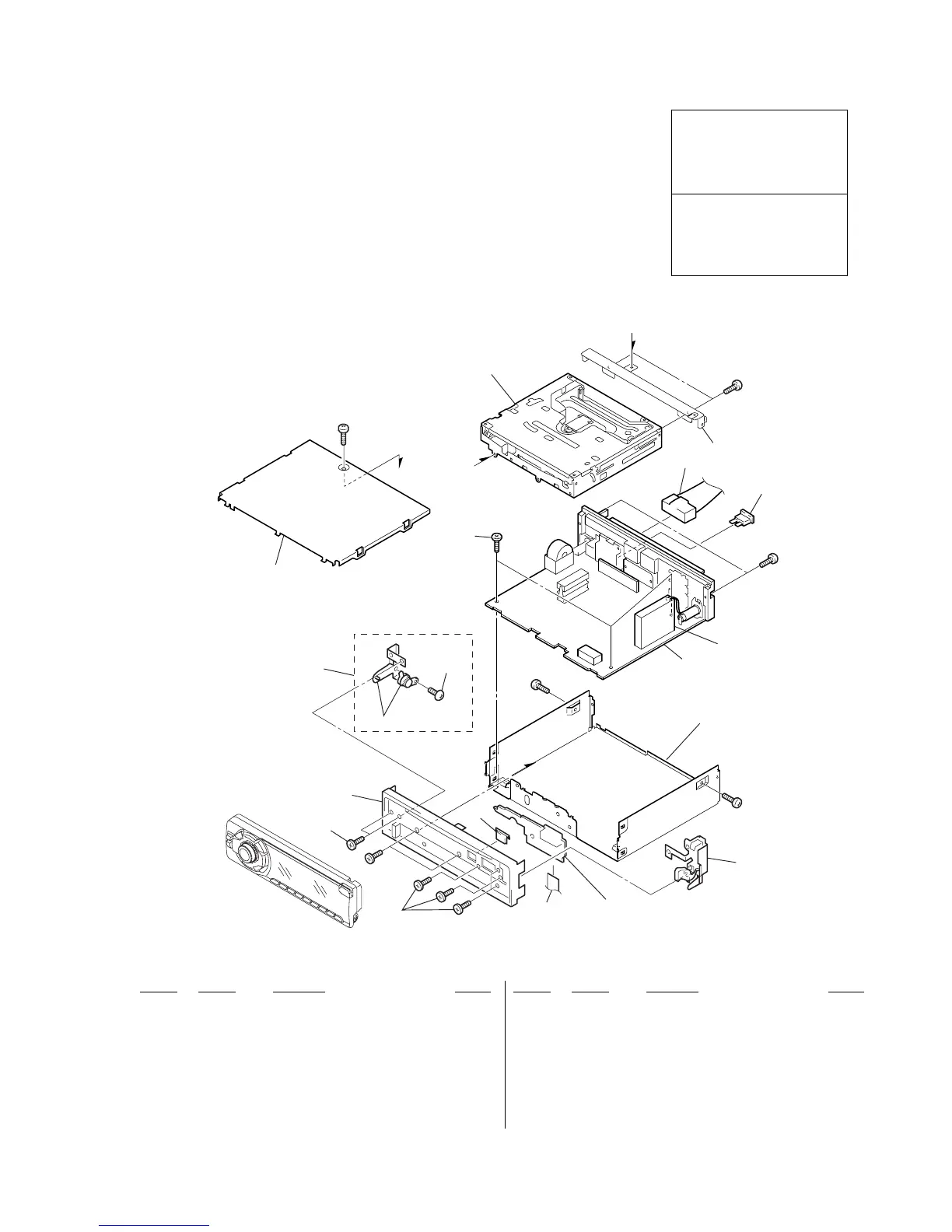

EXPLODED VIEWS
Ref. No. Part No. Description Remark
4-1. MAIN SECTION
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
•Abbreviation
CND : Canadian model
RR
1 X-3384-273-1 LOCK ASSY
21-792-173-11 CABLE, FLAT (FFC) 12P
33-246-030-01 BUTTON (EJECT)
43-261-903-01 SCREW (+BTT 2X5)
5 X-3384-270-1 PANEL ASSY (CD), SUB
6 X-3384-271-1 GEAR ASSY
73-713-786-51 SCREW +P 2X3
* 83-246-006-31 COVER
9 3-922-535-11 SCREW (+BTT)
10 1-776-207-82 CORD (WITH CONNECTOR) (POWER)
11 A-3283-503-A MAIN BOARD, COMPLETE
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TUX601 A-3220-961-A TUNER UNIT (TUX-032)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
F901
not supplied
not supplied
not supplied
(RELAY board)
TUX601
not supplied
#1
#1
#1
#1
#
2
#1
MG-611XA-186//K
A
A
B
B
1
2
4
5
6
7
4
3
8
9
10
11
Ver 1.1
