Sony CDX-F5000 - Internal Mechanism Component Disassembly

11
CDX-F5000/FW500

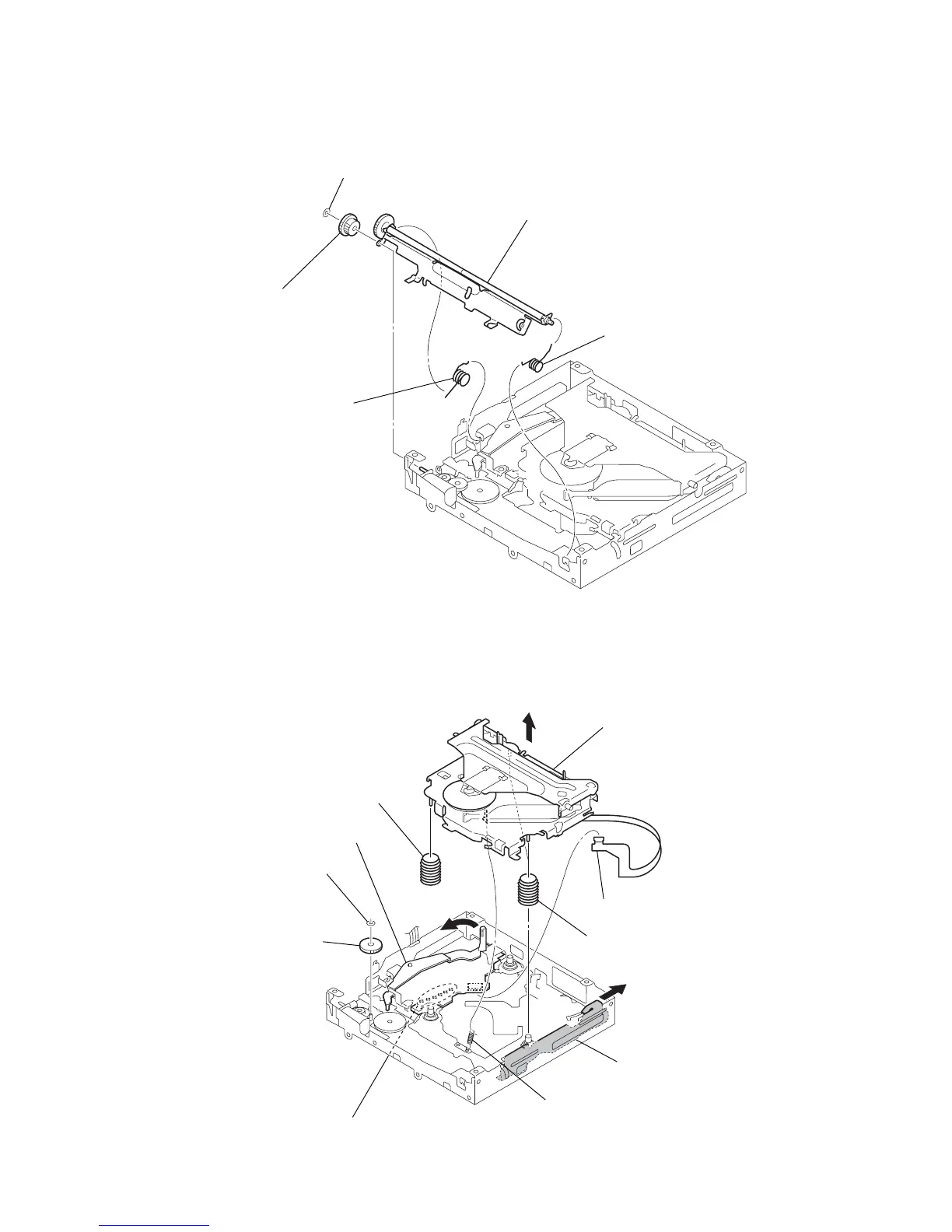

2-5. ROLLER ARM ASSY
2-6. CHASSIS (OP) ASSY
3 washer (1.1 – 2.5)
4 worm wheel (RA)
5 roller arm assy
1 spring (RAL)
2 spring (RAR)
4 washer
0 compression spring (damper)
9 two compression springs (damper
)
qa chassis (OP) assy
5 gear (LE1)
1 CN2
lever (D)
slider (R)
6
7
8
2 Remove the six solderings.
3 tension coil spring (KF)
