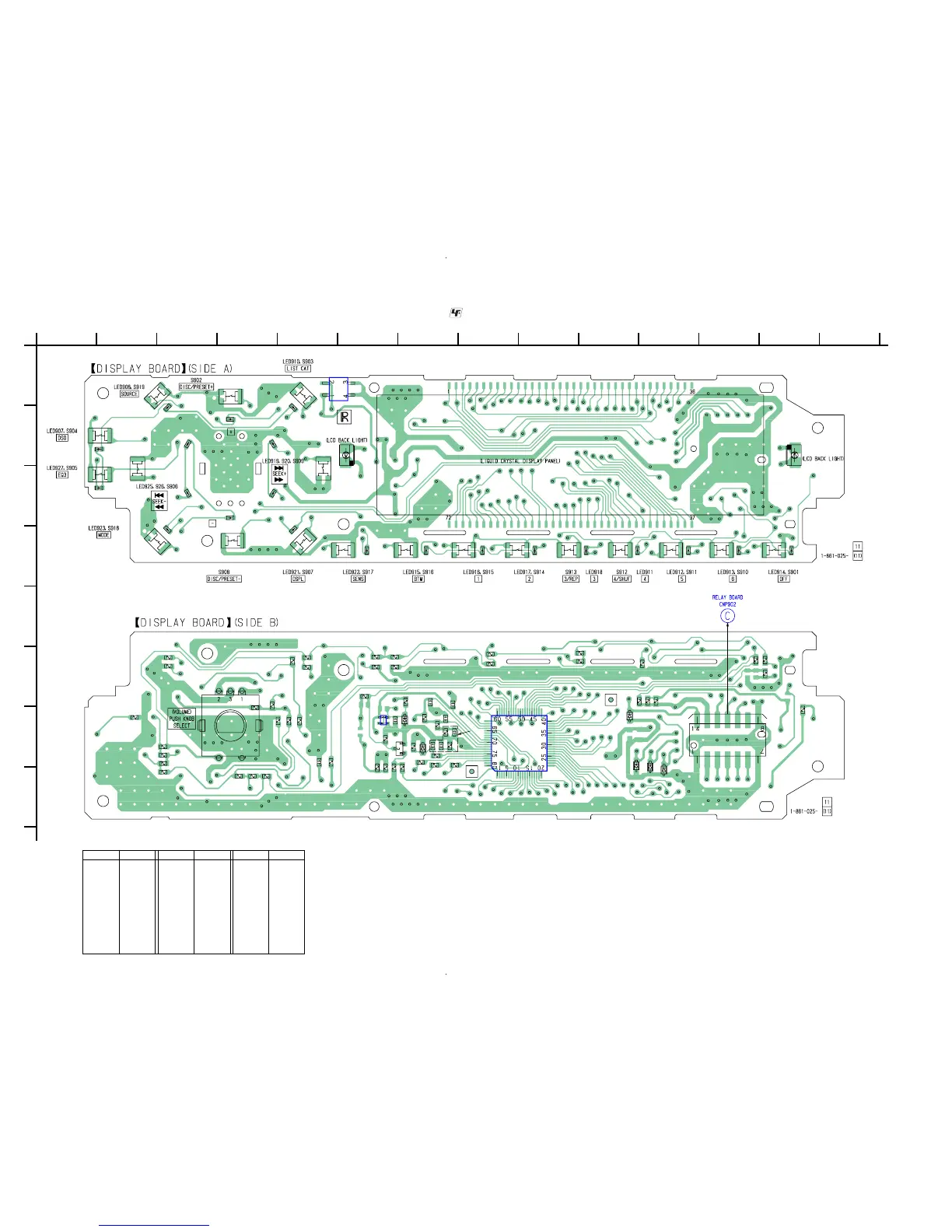

3-15. PRINTED WIRING BOARD — DISPLAY SECTION — • Refer to page 20 for Circuit Boards Location. : Uses unleaded solder.
(Page 27)
Ref. No. Location
D902 H-10
D903 H-11
D904 H-11
D905 G-7
D906 G-10
D951 G-7
IC901 G-9
IC905 G-6
IC951 A-6
LED902 B-6
• Semiconductor Location
Ref. No. Location
LED905 B-13
LED907 B-2
LED908 B-3
LED909 B-4
LED910 B-5
LED911 D-10
LED912 D-11
LED913 D-12
LED914 D-13
LED915 D-7
LED916 D-8
LED917 D-9
Ref. No. Location
LED918 D-10
LED919 B-4
LED920 C-4
LED921 D-5
LED922 D-6
LED923 D-3
LED924 C-4
LED925 B-3
LED926 C-3
LED927 C-2
Q501 G-6
