Sony CDX-F5000 - LE Motor Assy (M903); Servo Board

13
CDX-F5000/FW500

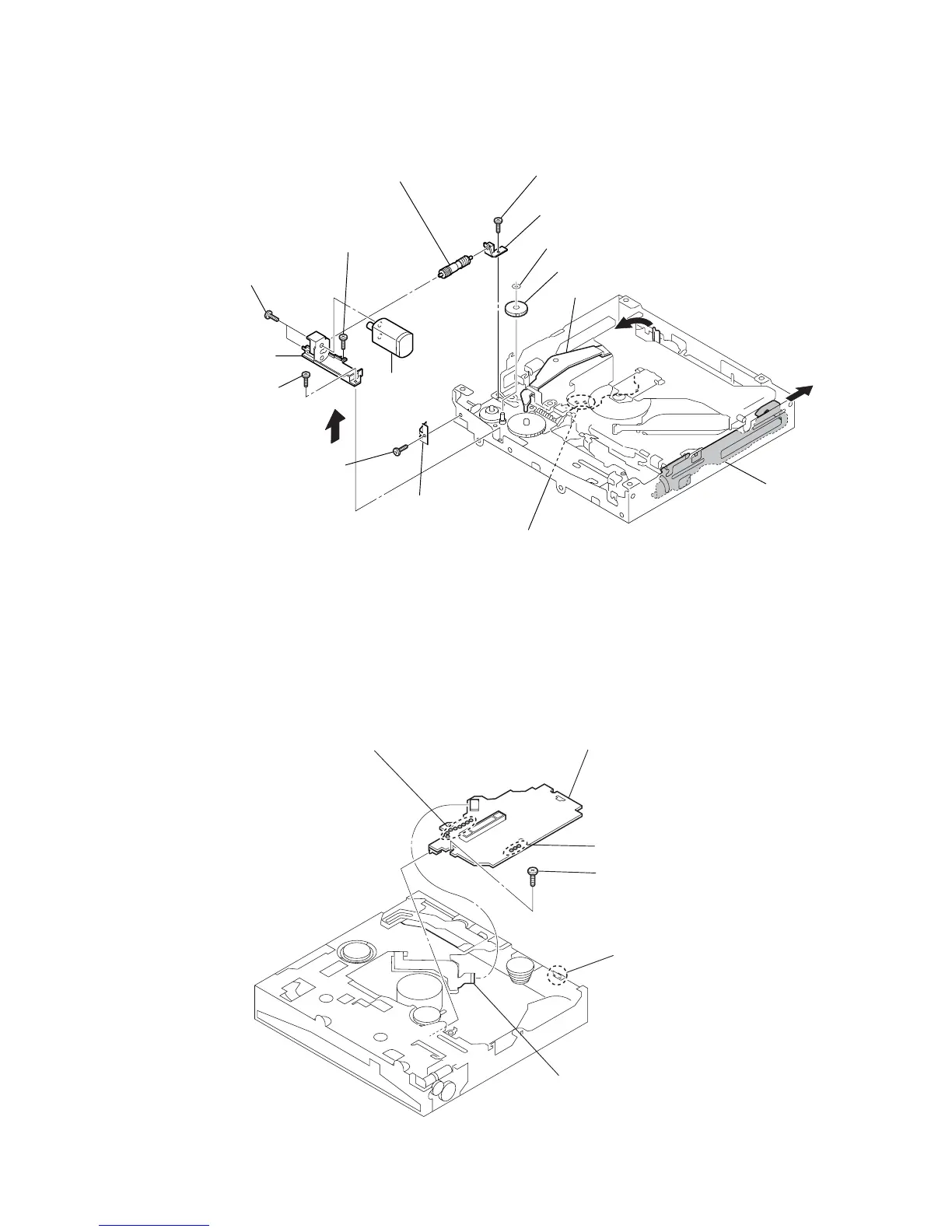

2-9. LE MOTOR ASSY (M903)
2-10. SERVO BOARD
2 washer
4
qd
3
gear (LE1)
7 leaf spring (LE)
5
lever (D)
bracket (LEM)
slider (R)
6 screw
(+P 1.7
x 2.2)
8 screw
(+M 1.7
x 2.5)
qa screw
(+M 1.7
x 2.5)
qf two toothed lock screws
(+M 1.4
)
qs screw
(+M 1.7
x 2.5)
9 bearing (LEB)
0 woam (LEB) assy
qg LE motor assy
(M903)
1 Remove the soldering.
3 CN2
5 claw
6 SERVO board
4 toothed lock screw
(M 1.7)
1 Remove the eight solderings.
2 Remove the three solderings.
