37
CDX-M50IP/MR50IP
SECTION 6
EXPLODED VIEWS
1 X-2176-202-1 LOCK ASSY
23-246-441-01 BUTTON (EJECT)
31-834-507-11 CABLE, FLEXIBLE FLAT (17 CORE)
43-260-247-01 CUSHION (SUB PANEL)
53-042-244-31 SCREW (T)
6 X-2179-173-1 PANEL ASSY, SUB (AUX)
7 X-3384-203-2 GEAR ASSY
83-713-786-51 SCREW +P 2X3
93-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
10 A-1319-697-A MAIN BOARD, COMPLETE (MR50IP)
10 A-1334-215-A MAIN BOARD, COMPLETE (M50IP)
11 2-021-848-01 SHEET (TU), GROUND
12 1-831-837-11 CORD (WITH CONNECTOR) (ISO) (POWER)
(MR50IP)
12 1-833-972-11 CONNECTION CORD FOR AUTOMOBILE
(POWER) (M50IP)
13 1-834-515-11 CORD, AUTOMOBILE (for iPod)
14 2-590-307-02 SHEET, COVER
FU601 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TU1 A-3220-961-B TUNER UNIT (TUX-032)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-790-01 SCREW +PTT 2.6X4 (S)
#3 7-685-793-09 SCREW +PTT 2.6X8 (S)
#4 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
#5 7-685-794-09 SCREW +PTT 2.6X10 (S)
#6 7-685-792-04 SCREW +PTT 2.6X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.

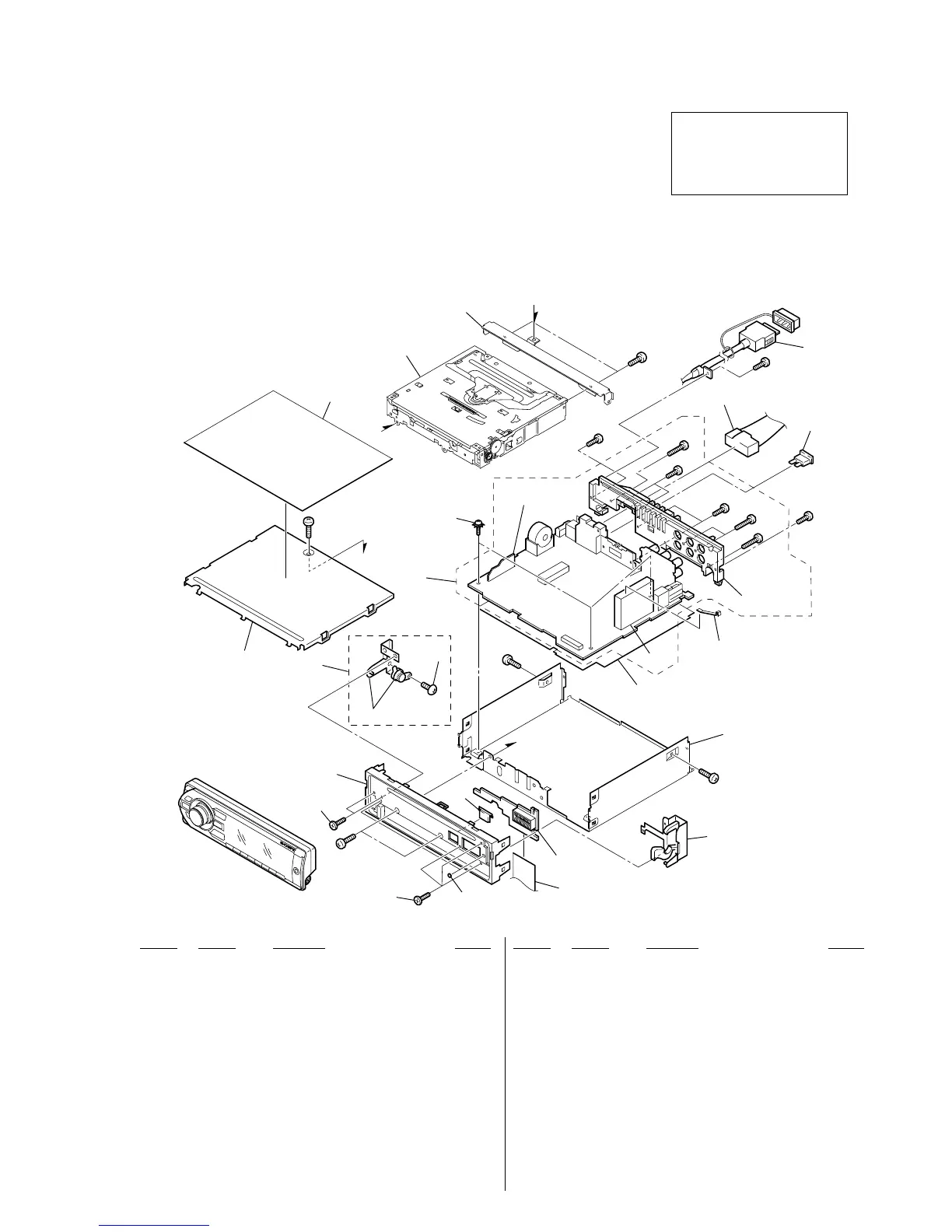

6-1. MAIN SECTION
RR
not supplied
not supplied
(SUB board)
not supplied
(IPOD board)
not supplied
FU601
not supplied
TU1
not supplied
not supplied
#1
#1
#6
#3
#5
#4
#3
#5
#4
#5
#2
#1
MG-101FC-188//Q
A
B
B
1
2
3
4
5
6
7
5
8
9
12
11
A
10
not supplied
#3
13
14
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
To Next Page
