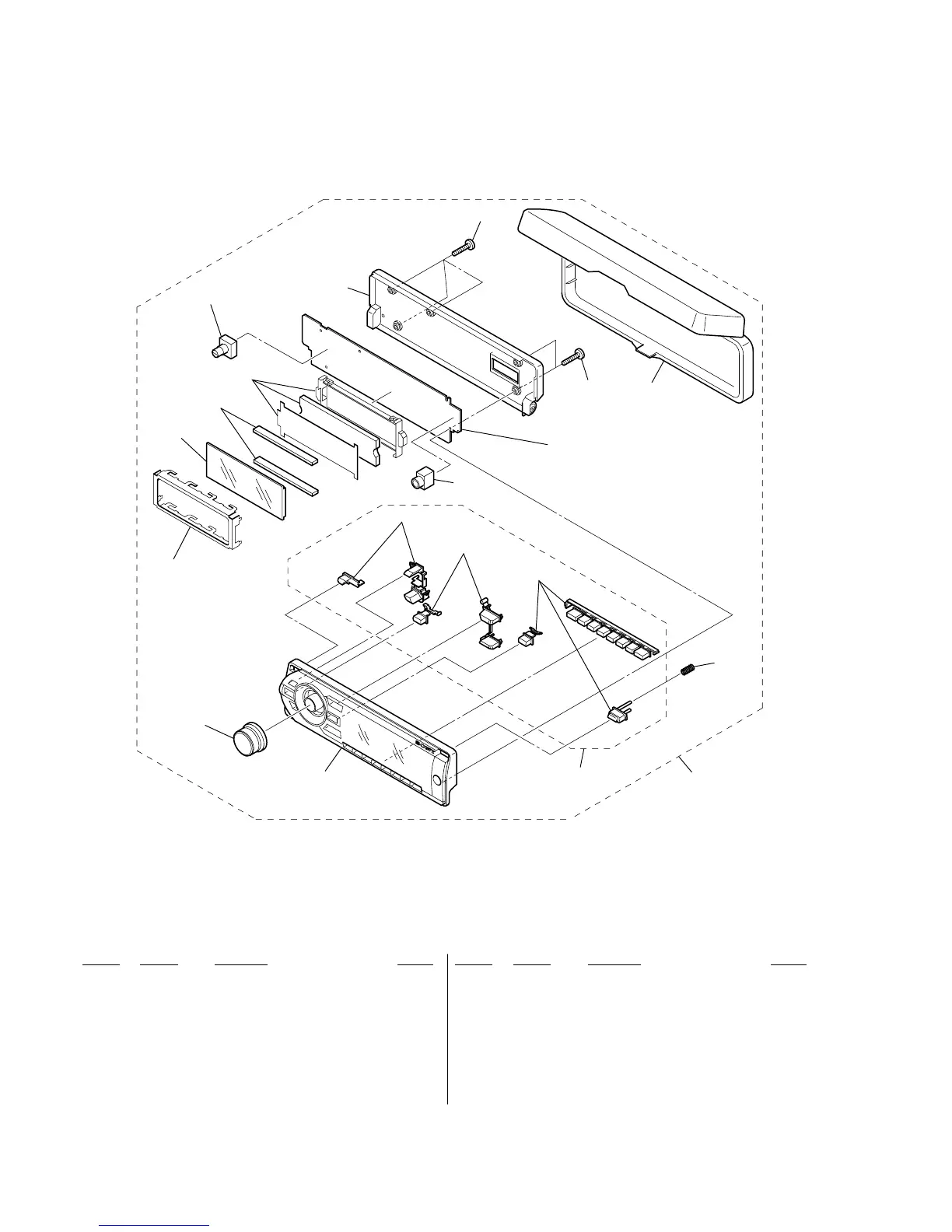

Sony CDX-M50IP - Exploded Views (Front Panel); 6-2. Front Panel Section Exploded View

38
CDX-M50IP/MR50IP
51 A-1334-733-A PANEL OVERALL ASSY, FRONT (M50IP)
51 A-1334-910-A PANEL OVERALL ASSY, FRONT (MR50IP)
52 3-264-712-01 SPRING (OPEN)
53 X-2179-995-1 BUTTON ASSY (S) (M50IP)
53 X-2186-766-1 BUTTON ASSY (S) (MR50IP)
54 X-2179-994-1 PANEL (SV) ASSY, FRONT (M50IP)
54 X-2186-416-1 PANEL (SV) ASSY, FRONT (MR50IP)
55 X-2179-191-1 KNOB ASSY (S)
56 1-780-563-11 CONDUCTIVE BOARD, CONNECTION
57 X-2186-413-1 PANEL ASSY, FRONT BACK
58 3-250-543-71 SCREW (+B P-TITE M2)
59 X-2149-228-2 CASE ASSY (for FRONT PANEL)
J901 1-820-833-11 JACK, SMALL TYPE (VERTICAL) (AUX)
LCD901 1-802-536-11 DISPLAY PANEL, LIQUID CRYSTAL
RE901 1-479-902-21 ENCODER, ROTARY
(VOLUME CONTROL DIAL/SELECT BUTTON)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-2. FRONT PANEL SECTION
LCD901
not supplied
(KEY board)
not supplied
not supplied
not supplied
not supplied
not supplied
52
51
53
54
55
57
56
58
RE901
58
J901
59
