CDX-M50IP/MR50IP
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-1177-362-A SERVO BOARD, COMPLETE
**********************
*************************************************************
SUB BOARD
**********
< CONNECTOR >
CN201 1-819-782-11 SOCKET, CONNECTOR 16P
< DIODE >
LED201 8-719-053-09 LED SML-310VTT86 (DISC IN)
LED202 8-719-053-09 LED SML-310VTT86 (Z)
< RESISTOR >
R201 1-216-812-11 METAL CHIP 180 5% 1/10W
R202 1-216-815-11 METAL CHIP 330 5% 1/10W
< SWITCH >
S201 1-786-653-21 SWITCH, TACTILE (Z)
*************************************************************
MISCELLANEOUS
***************
31-834-507-11 CABLE, FLEXIBLE FLAT (17 CORE) (CN202)
12 1-831-837-11 CORD (WITH CONNECTOR) (ISO) (POWER)
(MR50IP)
12 1-833-972-11 CONNECTION CORD FOR AUTOMOBILE
(POWER) (M50IP)
13 1-834-515-11 CORD, AUTOMOBILE (for iPod)
0103 X-2149-672-1 SERVICE ASSY, OP (DAX-25A)
FU601 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
*************************************************************
ACCESSORIES
************
1-479-077-13 REMOTE COMMANDER (RM-X151)
2-548-729-01 LID, BATTERY CASE (for RM-X151)
2-683-516-01 CAP (AUX)
3-274-100-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
SPANISH,GERMAN,DUTCH,ITALIAN)
3-274-101-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
FRENCH,SPANISH,GERMAN,DUTCH,ITALIAN)
(M50IP)
3-274-101-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
FRENCH,SPANISH,GERMAN,DUTCH,ITALIAN)
(MR50IP)
X-2149-228-2 CASE ASSY (for FRONT PANEL)
*************************************************************

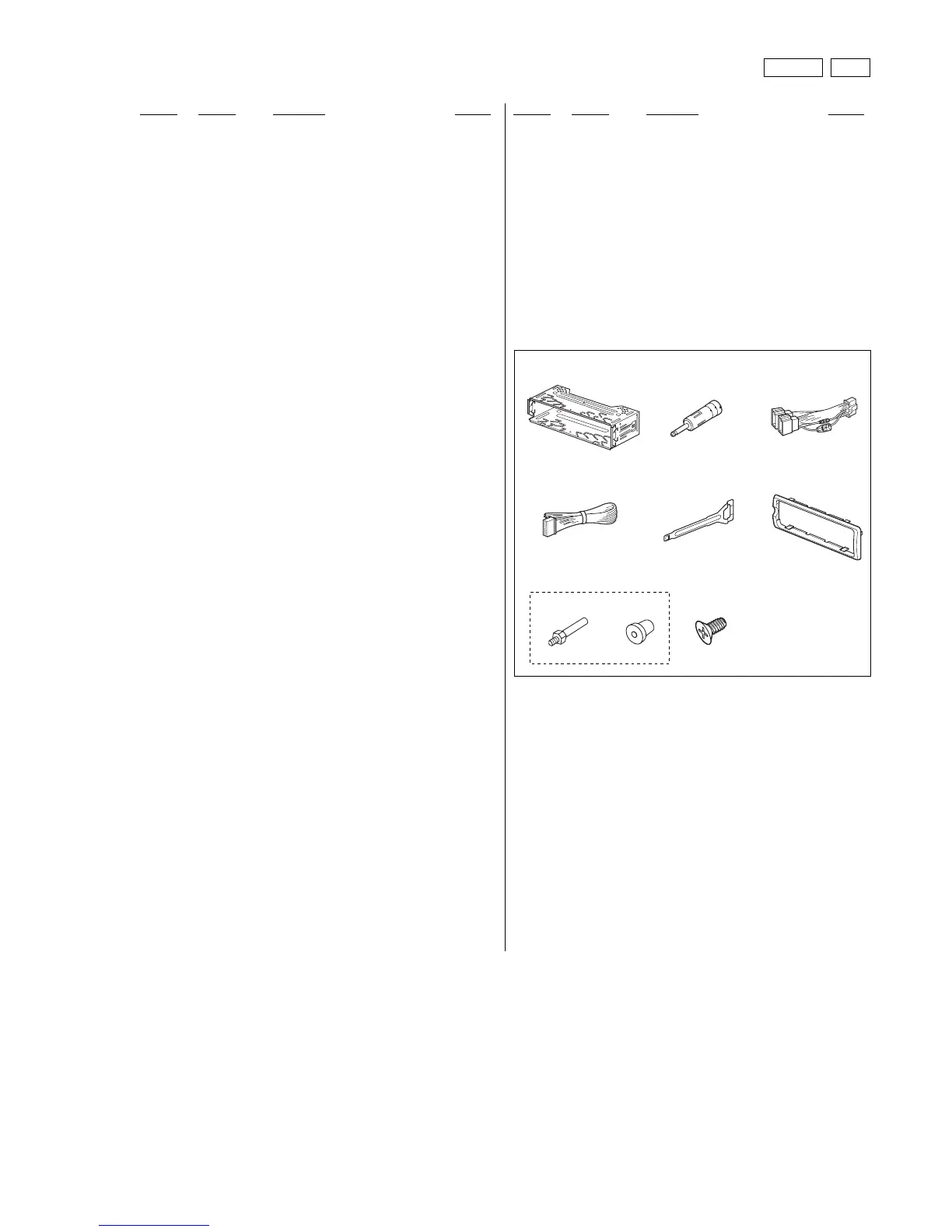

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
151 X-2179-431-1 FRAME ASSY, FITTING
152 1-465-459-31 ADAPTOR, ANTENNA (MR50IP)
153 1-831-837-11 CORD (WITH CONNECTOR) (ISO) (POWER)
(MR50IP)
154 1-833-972-11 CONNECTION CORD FOR AUTOMOBILE
(POWER) (M50IP)
155 3-246-471-01 KEY (FRAME)
156 3-209-713-11 COLLAR
157 X-3382-926-1 SCREW ASSY (BS), FITTING (MR50IP)
158 3-349-410-11 BUSHING (MR50IP)
159 3-934-325-01 SCREW, +K (5X8) TAPPING
SUBSERVO
151 152
154 155 156
153
× 2
157
158 159
× 4
