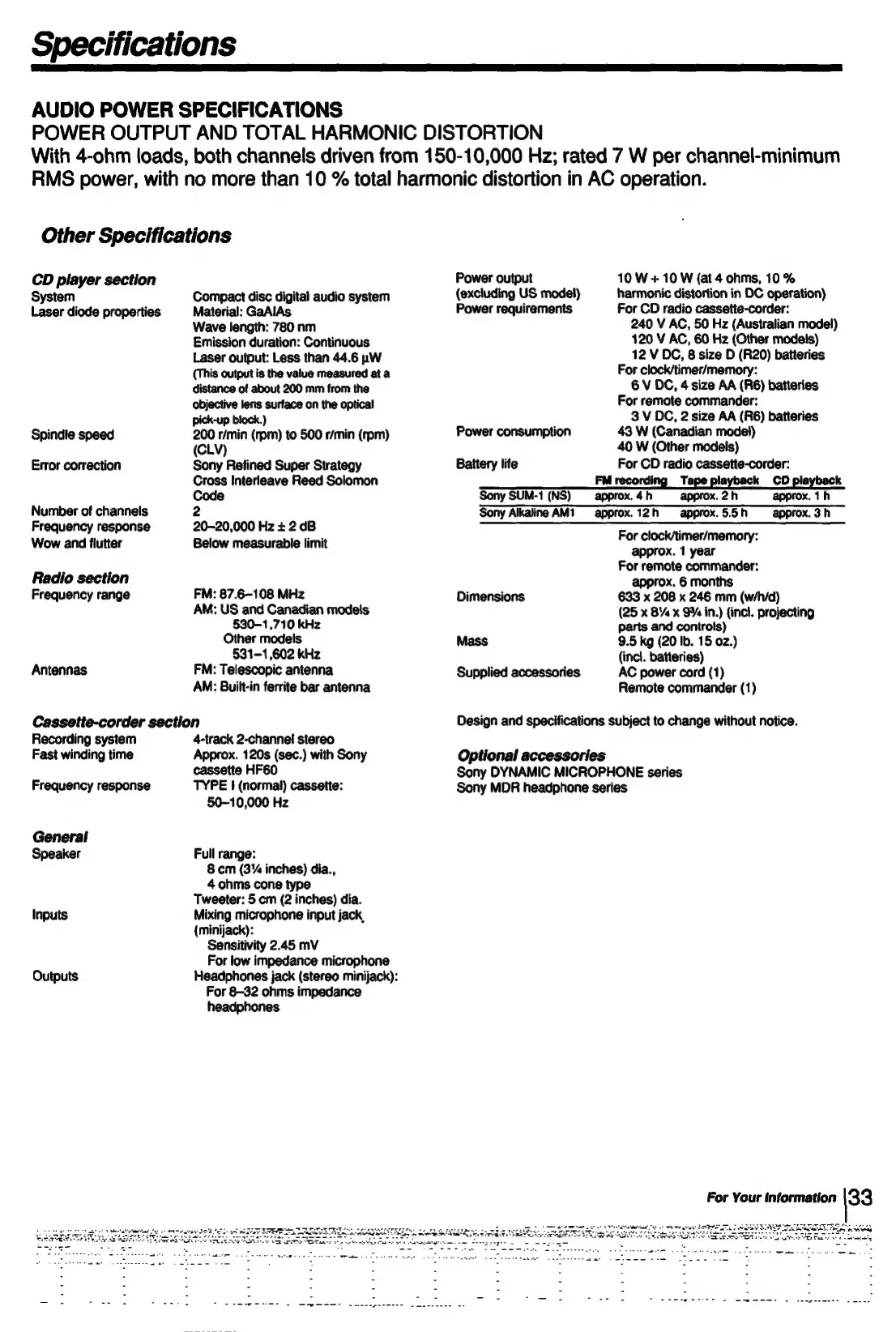

Sony CFD-758 - Specifications

Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 4-ohm loads, both channels driven from 150-10,000 Hz; rated 7 W per channel-minimum
RMS power, with no more than 10 % total harmonic distortion in AC operation.
Other Specifications
CD player section
System Compact disc digital audio system
Laser diode properties Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 pW
(This output is the value measured at a
distance of about 200 mm from the
objective lens surface on the optical
pick-up block.)
Spindle speed 200 r/min (rpm) to 500 r/min (rpm)
(CLV)
Error correction Sony Refined Super Strategy
Cross Interleave Reed Solomon
Code
Number of channels 2
Frequency response 20-20,000 Hz + 2 dB
Wow and flutter Below measurable limit
Radio section
Frequency range FM: 87.6-108 MHz
AM: US and Canadian models
§30-1,710 kHz
Other models
531-1 ,602 kHz
Antennas FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Cassette-corder section
Recording system 4-track 2-channel stereo
Fast winding time Approx. 120s (sec.) with Sony
cassette HF60
Frequency response TYPE | (normal) cassette:
§0~10,000 Hz
General
Speaker Full range:
8 cm (3% inches) dia.,
4 ohms cone type
Tweeter: 5 cm (2 inches) dia.
Inputs Mixing microphone input jack,
(minijack):
Sensitivity 2.45 mV
For low impedance microphone
Outputs Headphones jack (stereo minijack):
For 8-32 ohms impedance
headphones
Power output
(excluding US model)
Power requirements
10 W + 10 W (at 4 ohms, 10 %
harmonic distortion in DC operation)
For CD radio cassette-corder:
240 V AC, 50 Hz (Australian model)
120 V AC, 60 Hz (Other models)
12 V DC, 8 size D (R20) batteries
For clock/timer/memory:
6 V DC, 4 size AA (R6) batteries
For remote commander:
3 V DC, 2 size AA (R6) batteries
43 W (Canadian model)
40 W (Other models)
Battery life For CD radio cassette-corder:
FM recordi Ta k CD k
Sony SUM-1 (NS) approx. 4h approx. 2h approx. 1h
Sony Alkaline AM1 approx.12h approx. 5.5h approx. 3h
Power consumption
For clock/timer/memory:
approx. 1 year
For remote commander:
approx. 6 months
633 x 208 x 246 mm (w/h/d)
(25 x 8% x 9% in.) (incl. projecting
and controls)
Mass 9.5 kg (20 Ib. 15 02.)
(incl. batteries)
AC power cord (1)
Remote commander (1)
Dimensions
Supplied accessories
Design and specifications subject to change without notice.
| accessories
Sony DYNAMIC MICROPHONE series
Sony MDR headphone series
For Your information |33
