– 9 –

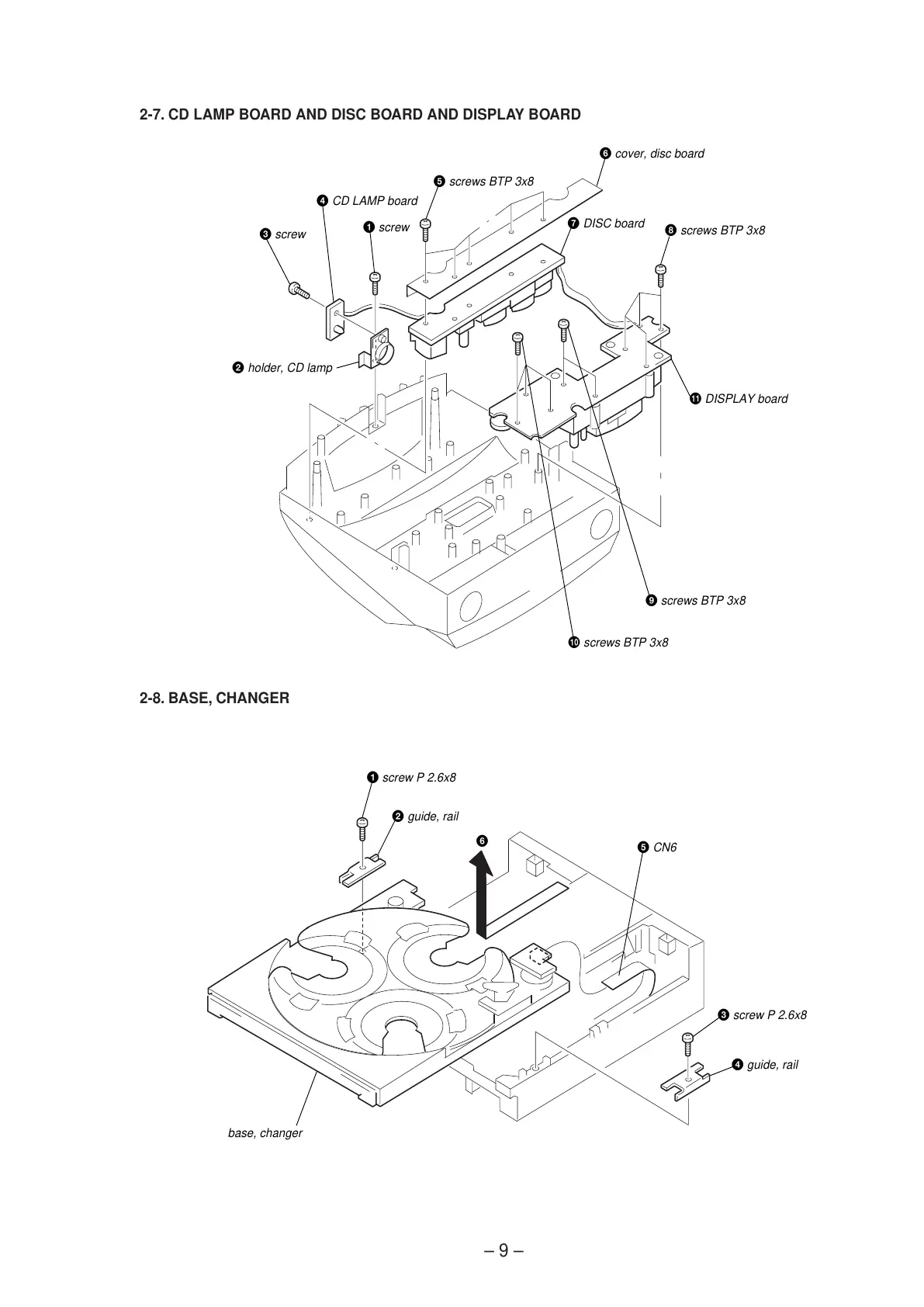

2-7. CD LAMP BOARD AND DISC BOARD AND DISPLAY BOARD
2-8. BASE, CHANGER
8 screws BTP 3x8
7 DISC board
6 cover, disc board
5 screws BTP 3x8
1 screw
3 screw
4 CD LAMP board
2 holder, CD lamp
!º screws BTP 3x8
9 screws BTP 3x8
!¡ DISPLAY boar
d
1 screw P 2.6x8
3 screw P 2.6x
8
base, changer
4 guide, rail
2 guide, rail
5 CN6
6
