Sony CFD-RS60CP Service Manual

10
CFD-RS60CP

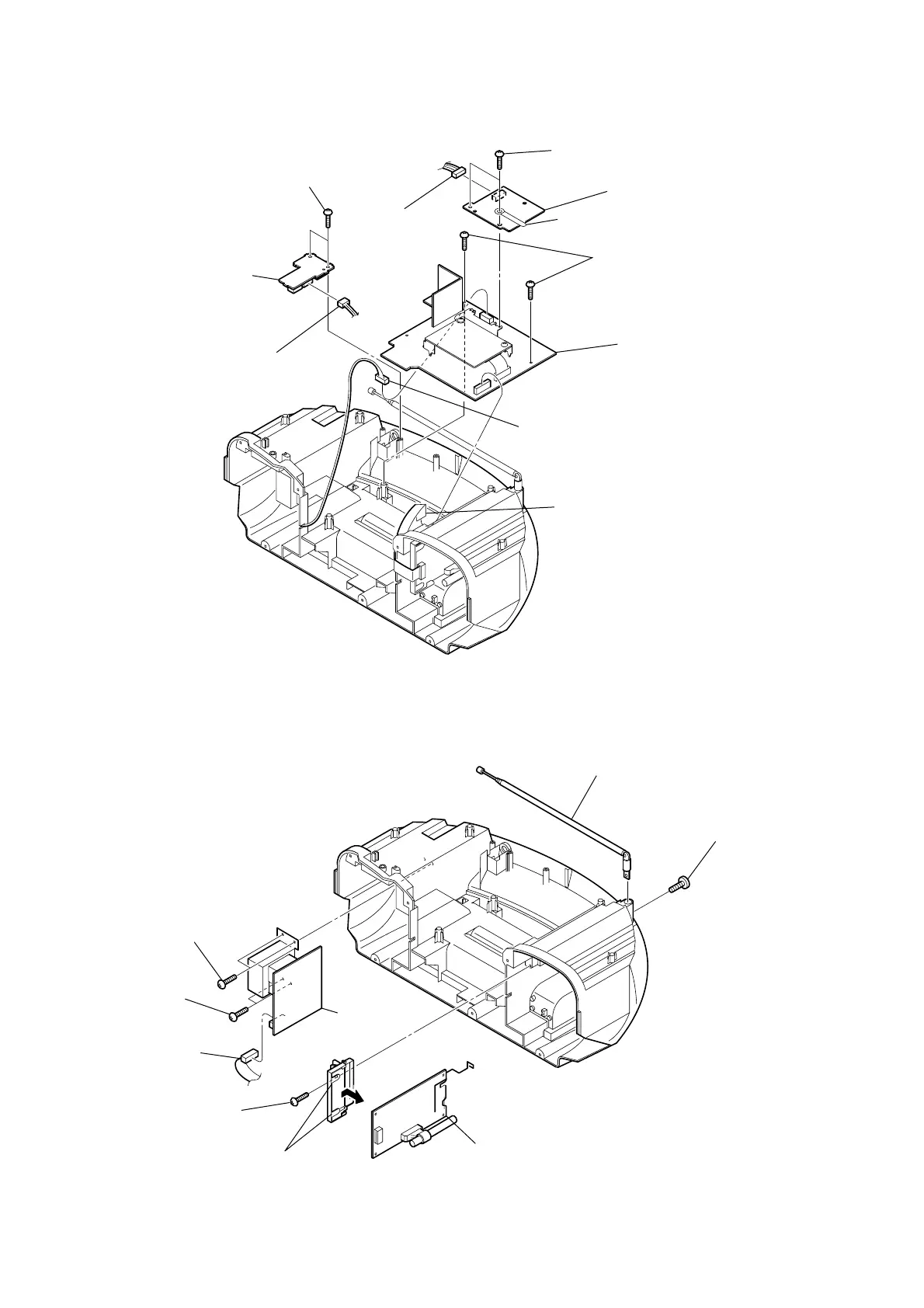

3-8. TUNER BOARD, POWER BOARD
3-7. MAIN BOARD SECTION, HEADPHONE BOARD
2 two screws
(+BV tapping (B2.6
) )
5 two screws
(+P tapping (B2.6
) )
9 two screws
(+P tapping (B2.6
) )
6 VOL board
8 CN804 (11 core)
7 CN901 (6P)
1 CN371 (4P)
4 CN351 (10P)
0 MAIN board section
clamp
3 HEADPHONE board
8 two screws
(+BV tapping (B2.6
) )
9 two screws
(+BV tapping (B2.6
) )
0 POWER board
4 two claws
7 CN952 (5P)
6 TUNER board
5
1
screw
(+P (M3
) )
3 screw
(+BV tapping (B2.6
) )
2 telescopic antenna
